Marca: Broadcom

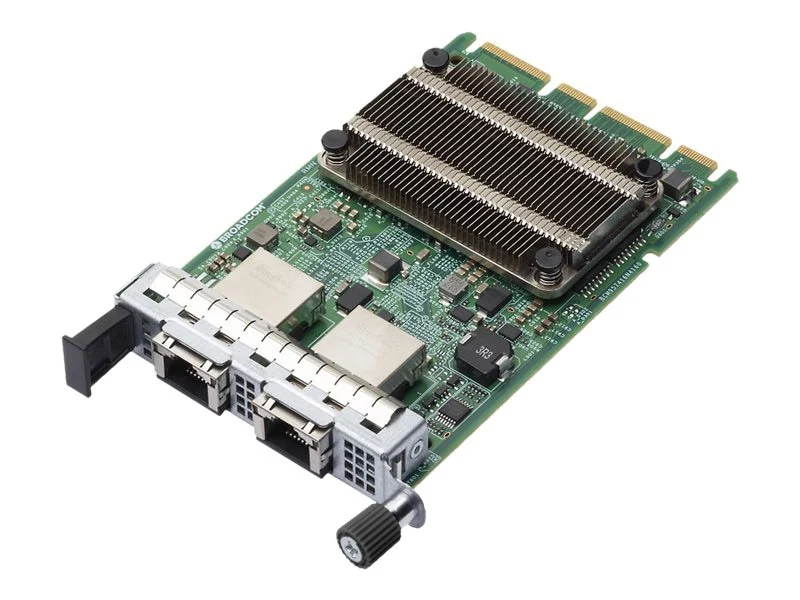

Tarjeta de Red Broadcom NetXtreme E-Series N210TP

603,27 €382,20 €Oferta
Cantidad

Descripción

Sobre este producto

  • 🖧 Adaptador de red Broadcom NetXtreme E-Series N210TP con doble puerto 10GBASE-T en formato OCP 3.0.
  • 🔌 Interfaz PCIe 3.0 x8, con Gigabit Ethernet / 10Gb Ethernet x 2.
  • 🚀 Motores de aceleración por hardware que mejoran el rendimiento de red y la eficiencia del servidor.
  • 🖥️ Tecnología TruFlow que aumenta la densidad de VMs hasta 50%, liberando ciclos de CPU.
  • 📡 Procesamiento en chip de túneles Geneve, VXLAN y NVGRE: hasta 5X más throughput y hasta 90% menos uso de CPU.
  • ⚙️ Soporta tecnologías avanzadas como RoCE, SDN y NFV para redes de datacenter a gran escala.
Característica Detalle
Marca Broadcom
Línea de producto Broadcom NetXtreme E-Series
Modelo N210TP
Fabricante BROADCOM
Marca del procesador Broadcom
Número de procesador BCM57416
Cable Type Ethernet 1000Base-T, Ethernet 10GBase-T
Estándares IEEE 802.3ab, IEEE 802.3an, OCP 3.0
Connectivity Technology Wired
Protocolos de enlace 10 Gigabit Myrinet, Gigabit Ethernet
Data Transfer Rate 10 GBps
Características Auto-uplink (auto MDI/MDI-X), Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Enhanced transmission selection (ETS), Extended Message-Signaled Interrupts (MSI-X), Function Level Reset (FLR), Generic Routing Encapsulation (GRE), Interrupt coalescing, iSCSI boot, Jumbo Frames support (up to 9000 bytes), Large Receive Offload (LRO), Large Send Offload (LSO), MCTP over SMBus, Message Signaled Interrupts (MSI), Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), NetQueue, Network Controller Sideband Interface (NC-SI), Network Virtualization using Generic Routing Encapsulation (NVGRE), Open Compute Project (OCP) 3.0 support, Priority-Based Flow Control (PFC), PXE support, Quantized Congestion Notification (QCN), RDMA over Converged Ethernet (RoCE), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), SMBus 2.0, TCP Segmentation Offload (TSO), TCP/IP checksum offload, Transmit Side Scaling (TSS), TruFlow, Tunnel-aware stateless offloads, UDP/IP checksum offload, UEFI support, Virtual Extensible LAN (VXLAN), vSwitch Acceleration, Wake On LAN (WOL)
Host Interface PCI Express 3.0 x8
PCI Specification Revision PCI 3.0
Tipo de producto Network adapter
Status Indicators Link/activity
Interfaces 2 x 1/10GBase-T - RJ-45
Port Quantity 2
Network & Adapter Ports Gigabit Ethernet / 10Gb Ethernet
Power Consumption Operational 14.6 watt
Cantidad por empaque 1
Color Green, Silver
Certificado ENERGY STAR No
Cumple EPEAT No
TCO Certified No
