Marca: Lantronix

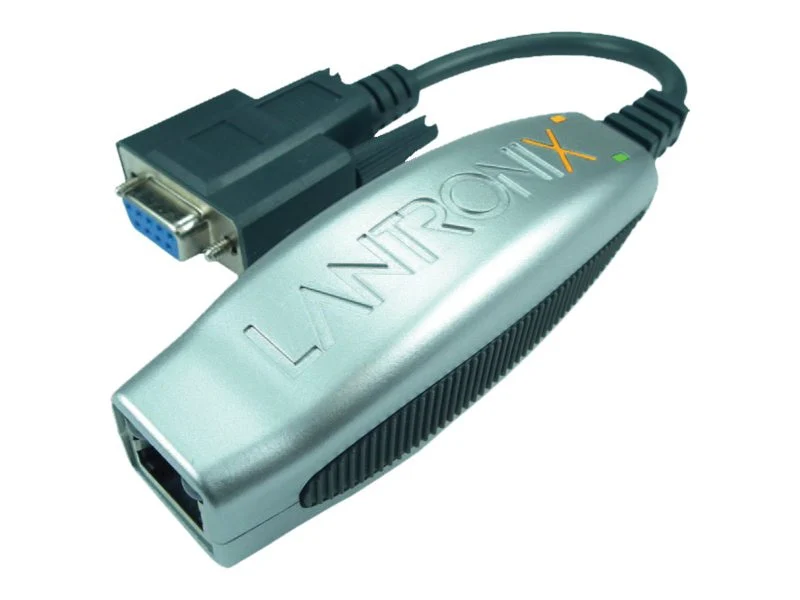

Servidor de Dispositivos Lantronix xDirect Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet

169,54 €106,53 €Oferta
Cantidad

Descripción

Sobre este producto

  • 🔄 Servidor de dispositivos que convierte serial RS232/RS422/RS485 a Ethernet IP de forma rápida y sencilla.
  • 🌐 Servidor web integrado para acceder y configurar la unidad desde PC, smartphone o tablet con un navegador estándar.
  • 🔌 Múltiples opciones de alimentación, incluida PoE, en un diseño compacto y portátil.
  • 📶 Puerto LAN 100 Mb con conectividad plug-and-play para casi cualquier equipo con interfaz serial.
Característica Detalle
Marca Lantronix
Línea de producto Lantronix xDirect
Modelo Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet
Fabricante Lantronix
Procesadores instalados 1
Total Processor Supported 1
Flash Memory Installed 1 megabyte
Tecnología de memoria SRAM
RAM instalada 256 kilobyte
Connectivity Technology Wired
Protocolos de enlace Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Data Transfer Rate 921.6 Kbps
Características 15 KV Electrostatic Discharge Protection, Auto-sensing per device, DHCP support, Flow control
Factor de forma External
Network Standard ARP, BOOTP, DHCP, ICMP/IP, TCP/IP, UDP/IP
Tipo de producto Device server
Gestión remota HTTP, SNMP, Telnet, TFTP
Status Indicators Link/activity, Power, Serial, Status
Interfaces 1 x 100Base-TX - RJ-45, 1 x RS-232/422/485 - DB-9
Power Consumption Operational 1.3 watt
Encryption 128-bit AES, 192-bit AES, 256-bit AES
Operating System Required Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits)
Device Type External power adapter
Cantidad por empaque 1
Alto 1.1 inch
Weight 2.4 ounce
Ancho 1.3 inch
Profundidad 9.4 inch
Estándares C-Tick, CISPR 22, CSA C22.2 No. 60950-1-07 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class B, EN55024, FCC Part 15 B, IEC 60950-1 Second Edition, RoHS, UL 60950-1 Second Edition, VCCI
