Marca: Lantronix

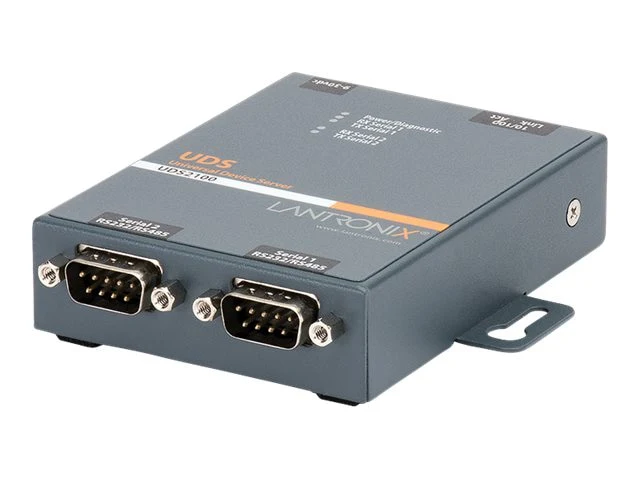

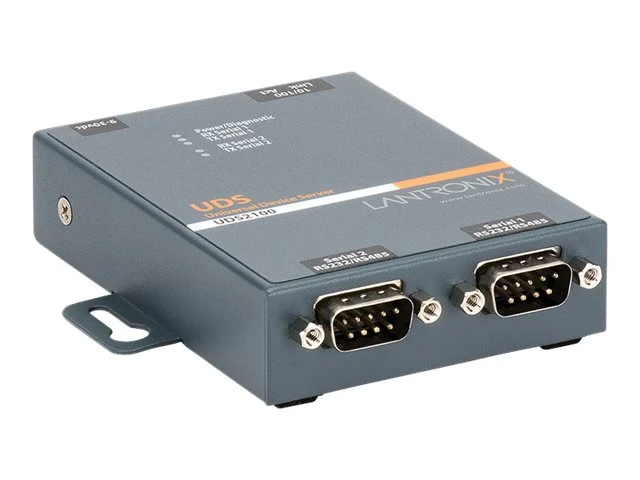

Servidor de Dispositivos Lantronix Device Server UDS2100 Two Port Serial (RS232/ RS422/ RS485) to IP Ethernet, UD2100001-01

328,23 €174,29 €Oferta
Cantidad

Descripción

Sobre este producto

  • 🌐 Servidor de Dispositivos Lantronix Device Server UDS2100 Two Port Serial (RS232/ RS422/ RS485) to IP Ethernet: para administración y control de red.
  • ✅ With the UDS2100, two pieces of equipment of virtually any type can be added to an Ethernet network in a matter of minutes!
  • ✅ This dual-port device server is a quick, simple and inexpensive way to bring the advantages of remote management and control to equipment not currently connected to a network
  • ✅ Our approach to network-enabling devices is transparent to your attached equipment and software so you won’t need to change the way you work
  • ✅ Using a method called serial tunneling, the UDS2100 encapsulates serial data into packets and transports it over Ethernet
  • ✅ The built-in web server enables users to access and configure the UDS2100 from a standard web browser
  • ✅ Using Lantronix development tools, users can build web pages to customize the UDS2100 for unique applications
Característica Detalle
Marca Lantronix
Línea de producto Lantronix Device Server UDS2100
Modelo Two Port Serial (RS232/ RS422/ RS485) to IP Ethernet
Fabricante Lantronix
Velocidad de reloj 48 megahertz
Procesadores instalados 1
Total Processor Supported 1
Flash Memory Installed 2 megabyte
Tecnología de memoria SRAM
RAM instalada 256 kilobyte
Unidad óptica None
Connectivity Technology Wired
Protocolos de enlace Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Características ARP support, DHCP support, Flow control, Full duplex mode, Half duplex mode, Manageable
Factor de forma External
Network Standard ICMP/IP, TCP/IP, UDP/IP
Ports 2
Tipo de producto Device server
Gestión remota HTTP, SNMP, Telnet
Status Indicators Link/activity, Port duplex mode, Power, Status
Interfaces 1 x 100Base-TX - RJ-45, 2 x RS-232/422/485 - DB-9
Power Consumption Operational 1.8 watt
Temp. máx. de operación 140 degree Fahrenheit
Temp. mín. de operación 32 degree Fahrenheit
Operating System Required Microsoft Windows 98/ME/NT/2000/XP
País United States
Device Type External power adapter
Cantidad por empaque 1
Alto 0.9 inch
Weight 14.11 ounce
Ancho 2.8 inch
Profundidad 3.7 inch
Estándares CISPR 22 Class A, CSA, cUL, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, FCC Class A certified, FCC Class B certified, ICES-003 Class A, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, TUV, UL, VCCI, WEEE
