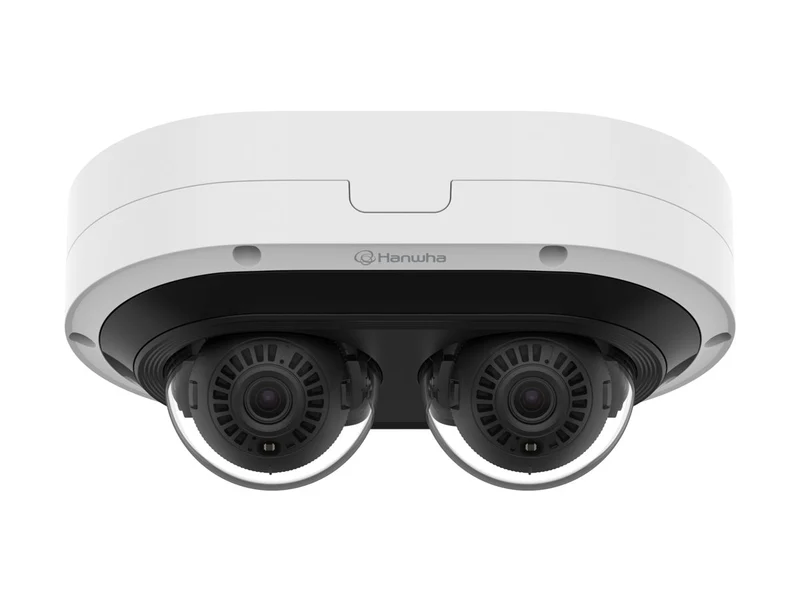

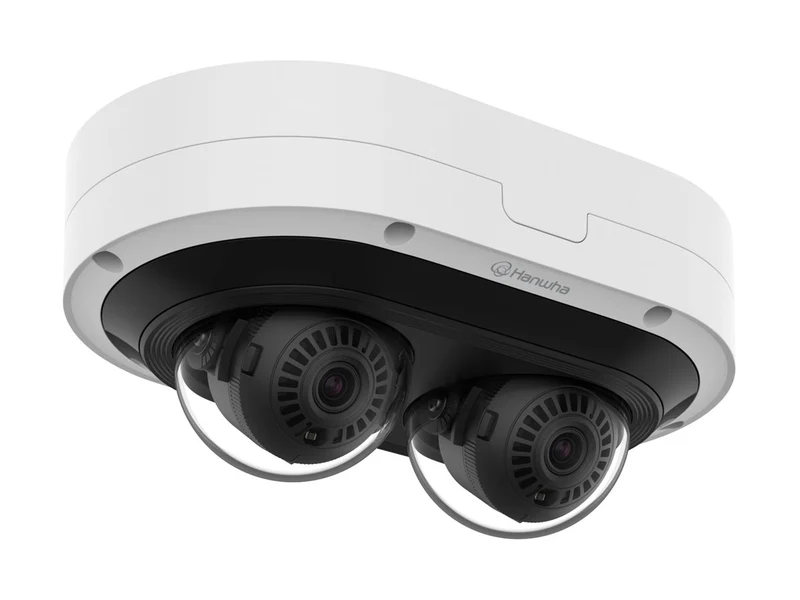

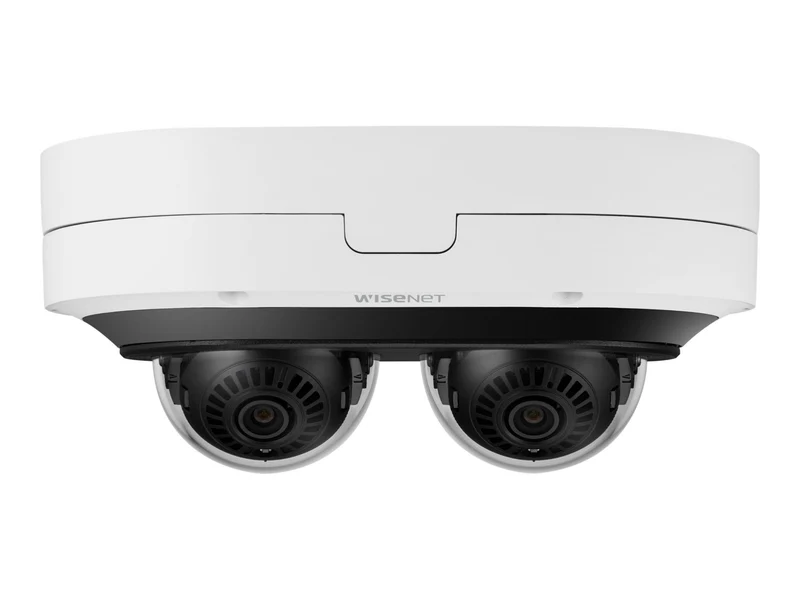

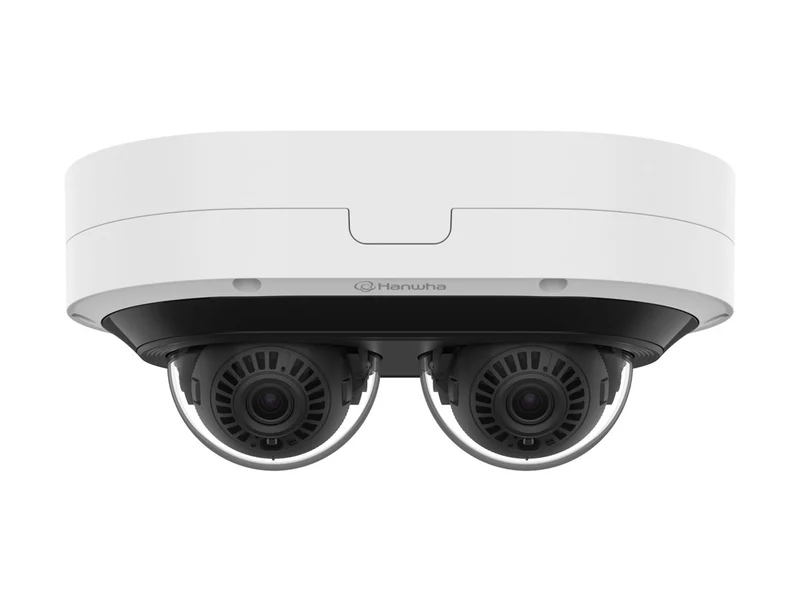

Sensor de Seguridad Hanwha 2 Sensor

Sobre este producto

• 📹 Resolución 2MP en domo IR para exterior
• 🔒 Certificación FIPS 140-2 para seguridad de datos
• 🔍 Lente varifocal motorizada 2x
• 🌙 Longitud IR visible de 28 m para visión nocturna
• 🛡️ Soporta IP66, IK10 y NEMA4X para condiciones exigentes
• 📐 Ángulo de inclinación (tilt) de 75 grados

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet P
Modelo	PNM-7082RVD
Fabricante	Hanwha
Flash Memory Installed	512 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	4 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	2 x 1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 78
Touchscreen	No
Camera Mechanical Design	Pan / tilt / zoom
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 320 x 240, 640 x 320, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	0 to 355
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Signals	USB
Camera Mount Type	Ceiling mount
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Plus
Power Consumption Operational	12.5 watt
Camera Iris	Fixed iris
Focal Length Control	Motorized zoom
Focus Modes	Automatic
Infrared Distance	82 ft
Infrared LEDs	Yes
Lens Aperture	F/2.2-3.1
Max Focal Length	6 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.0035 lux - B&W - F2.2 - 30 IRE - shutter 1/30 sec, 0.035 lux - color - F2.2 - 30 IRE - shutter 1/30 sec
Humedad de operación	0 - 95% RH (non-condensing)
Optical Zoom	2
Sensor Size (metric)	2 x 9.1 mm (1/2.8")
Total Pixels	2 x 2,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	Alarm function, Anti-flicker, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Defog, Digest authentication, Extreme WDR, Hallway View, Handover, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, TPM 2.0 module, Trigger recording, Unicast Streaming, User access log, Wide Dynamic Range (WDR), WiseNR, WiseStream II support
Cantidad por empaque	1
Alto	3.7 inch
Weight	2.93 lbs
Ancho	8.5 inch
Profundidad	5.3 inch
Color	RAL 9003, White
Color	Black, White
Estándares	IEEE 802.1x, IEEE 802.3at, IK10, IP66, IP67, NDAA, NEMA Type 4X
