Marca: SANNCE

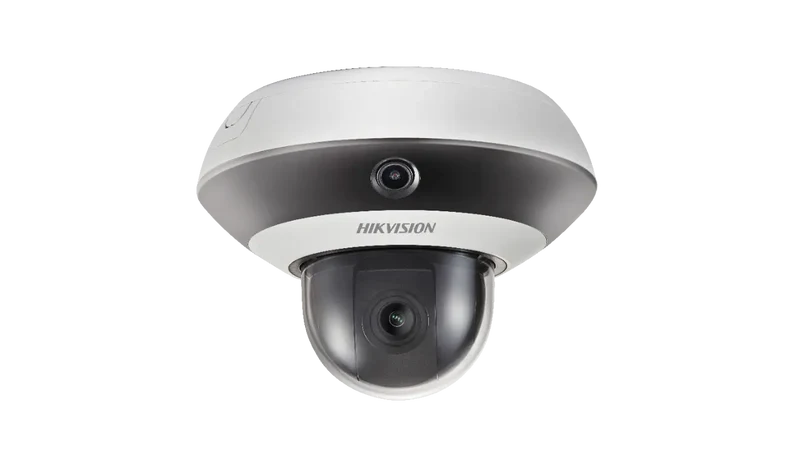

PT3 Mini PanoVu DS-2PT3122IZ-DE3

599,99 €398,32 €Oferta
Cantidad

Descripción

  • Panoramic camera linked to a PTZ: capturing 128.5° images with the panoramic camera, as well as close-up images with the PTZ camera
  • PoE: easy installation with Power over Ethernet technology
  • H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
  • Built-in IR light: IR range of 15 meters provides good visibility in low or even zero-light environments
Specification
Camera
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR
Day &Night IR Cut Filter
Lens
FOV [panoramic channel]
Horizontal field of view: 128.5°
Vertical field of view: 75.7°
Diagonal field of view: 144°
[PTZ channel]
4mm：
Horizontal field of view: 89.7°
Vertical field of view: 47.5°
Diagonal field of view: 108°
6mm：
Horizontal field of view: 54.6°
Vertical field of view: 31.3°
Diagonal field of view: 62.4°
8mm：
Horizontal field of view: 43°
Vertical field of view: 23.5°
Diagonal field of view: 50.3°
2.8-12mm：
Horizontal field of view: 120° to 56.6° (wide - tele)
Vertical field of view: 61.8° to 31.7° (wide - tele)
Diagonal field of view: 149° to 65° (wide - tele)
Focal Length [panoramic channel]: 2mm
[PTZ channel]: 4mm, 6mm, 8mm, 2.8-12mm
Aperture Range F2.0
Smart Features
Basic Event Detection Motion Detection, Video Tampering Detection, Exception
Smart Detection Audio Exception Detection, Intrusion Detection, Line Crossing Detection
Smart Record ANR (Automatic Network Replenishment)
Smart Image Enhancement HLC/BLC/3D DNR/Regional Exposure
Network
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Interface
Audio Interface 1-ch audio input and 1-ch audio output
Camera Module
Privacy Mask [panoramic channel]：4 programmable privacy masks
[PTZ channel]：8 programmable privacy masks
General
Power Supply 12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4
Max.19 W (Max. 2 W for IR)
Material PC + ABS & Aluminum alloy
Dimensions Φ 183 mm × 133.2 mm (Φ 7.20" × 5.24")
Weight Approx. 0.9 kg (1.98 lb)
Protection Level 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Working Temperature -10°C to 50°C (14°F to 122°F)
Working Humidity ≤ 90%
