Marca: Fluke

Probador de Red Fluke DSX CableAnalyzer DSX2-5000

17.377,69 €9197,54 €Oferta
Cantidad

Descripción

Sobre este producto

  • 🚀 Reduce el costo de certificación Cat 5 a Cat 8 en dos tercios, con tiempos de prueba líderes (Cat 6A en ocho segundos).
  • 📐 Cumple TIA Level 2G e IEC Level VI, los requisitos de precisión más estrictos.
  • ☁️ Integración con LinkWare Live para gestionar trabajos y equipos desde cualquier dispositivo vía Wi-Fi.
  • 🔮 Diseño ampliable con módulos para pruebas de fibra (pérdida, OTDR e inspección).
  • 🖥️ Interfaz Taptive que muestra gráficamente el origen de las fallas: diafonía, pérdida de retorno y fallas de blindaje.
  • 📊 Informes profesionales con el software LinkWare.
Característica Detalle
Marca Fluke
Línea de producto Fluke DSX CableAnalyzer
Modelo DSX2-5000
Fabricante Fluke Networks
Cable Types CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a
Estándares EN 61010-1 1st Edition Amendments 1, 2, EN 61326-1
Características 1-year calibration period, 2-way autotest, Headset connection, USB connectivity, Wi-Fi IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)

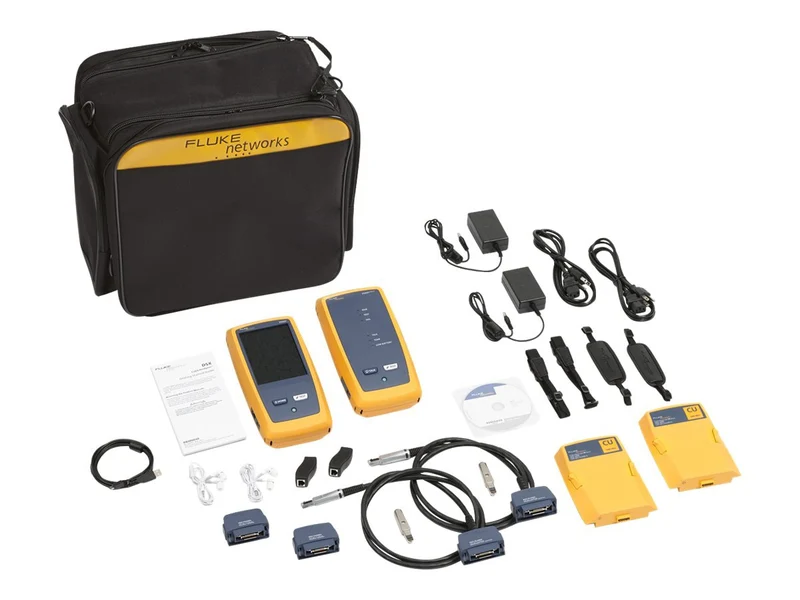

Kit Content 2 x DSX-5000 CableAnalyzer Module, Versiv Mainframe, Versiv Remote
Media Copper
Tipo de producto Network tester kit
Software AxTalk, LinkWare PC
Test Standards ISO/IEC 11801, TIA-568-C.2
Tests, Tools and Measurements Attenuation-to-crosstalk ratio far end, DC loop resistance, Delay skew between pair, Insertion loss (attenuation), Length, Near-end crosstalk, Power sum, Propagation delay, Return loss, Wiremap
Connectors RJ-45
Color Support Color
Display Diagonal Size 5.7 inch
Display Diagonal Size (metric) 14.5 centimetre
Display Screen LCD
Battery Chemistry Lithium ion
Battery Voltage 7.2 volt
Battery Run Time (Up To) 8 hour(s)
Drop Specification 3.3 ft
Max Altitude Operating 13120 ft
Temp. máx. de operación 113 degree Fahrenheit
Max Storage Temperature 140 degree Fahrenheit
Temp. mín. de operación 32 degree Fahrenheit
Min Storage Temperature 14 degree Fahrenheit
Humedad de operación 0 - 90%
Cantidad por empaque 1
Cables 1 x USB cable, 2 x RJ-45 coupler
Accesorios incluidos 2 x AC power adapters, 2 x CAT 6A channel adapters, 2 x CAT 6A permanent link adapters, 2 x hand straps, 2 x headsets, 2 x shoulder straps, 2 x universal couplers, Carrying case
Manufacturer Limited Warranty 1 year
