Marca: Fluke

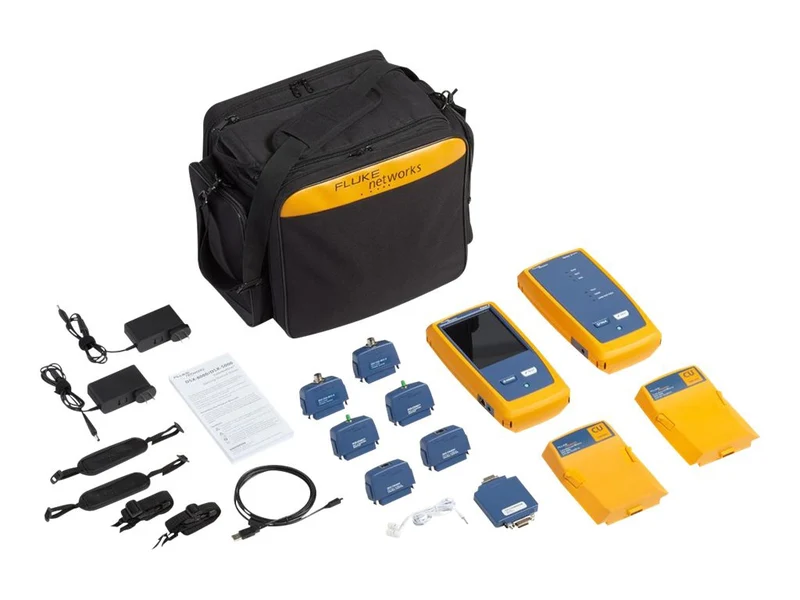

Probador de Red Fluke DSX CableAnalyzer DSX2-5-IE-K1

17.426,24 €11.448,30 €Oferta
Cantidad

Descripción

Sobre este producto

  • 🏭 Cable analyzer para Industrial Ethernet que muestra Pass/Fail en 10 segundos con detalle de mediciones
  • 🔌 Soporta conectores RJ45, M12D y M12X
  • 📱 Gestión de proyectos por pantalla táctil y troubleshooting avanzado con Wi-Fi integrado
  • 🔋 Batería de 8 horas de autonomía
  • 🧰 Kit con mainframe y unidades remotas Versiv, módulo de referencia, adaptadores y certificado de calibración
Característica Detalle
Marca Fluke
Línea de producto Fluke DSX CableAnalyzer
Modelo DSX2-5-IE-K1
Fabricante Fluke Networks
Cable Types CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a, CAT8
Estándares CSA 22.2 No. 61010, EN 61326-1, IEC 61010-1 3rd Edition
Características 1-year calibration period, 1000MHz maximum frequency, 2-way autotest, Headset connection, USB connectivity, Wi-Fi IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Kit Content 2 x DSX-5000 CableAnalyzer Module, Versiv Mainframe, Versiv Remote
Media Copper
Tipo de producto Network tester kit
Software LinkWare PC
Test Standards TIA-568-C.2
Tests, Tools and Measurements Attenuation-to-crosstalk ratio far end, Common mode return loss (CMRL), DC loop resistance, Delay skew between pair, Equal level transverse conversion transfer loss (ELTCTL), Far end crosstalk (FEXT), Insertion loss (attenuation), Length, Near-end crosstalk, Pair resistance unbalance, Pair-to-pair resistance unbalance, Power sum, Propagation delay, Return loss, Transverse conversion loss (TCL), Wiremap
Connectors RJ-45
Color Support Color
Display Diagonal Size 5.7 inch
Display Diagonal Size (metric) 14.5 centimetre
Display Screen LCD
Battery Chemistry Lithium ion
Battery Voltage 7.2 volt
Battery Run Time (Up To) 8 hour(s)
Drop Specification 3.3 ft
Max Altitude Operating 13120 ft
Temp. máx. de operación 113 degree Fahrenheit
Max Storage Temperature 140 degree Fahrenheit
Temp. mín. de operación 32 degree Fahrenheit
Min Storage Temperature 14 degree Fahrenheit
Humedad de operación 0 - 90%
Vibration Acceleration (Operating) 2 gram
Vibration Frequency Range (Operating) 5-500 Hz
Cantidad por empaque 1
Cables 1 x USB cable
Accesorios incluidos 2 x AC power adapters, 2 x hand straps, 2 x headsets, 2 x shoulder straps, Carrying case, CAT 6A/Class EA channel adapters set, M12D adapters set, M12X adapters set, Reference module
