Marca: ANNKE

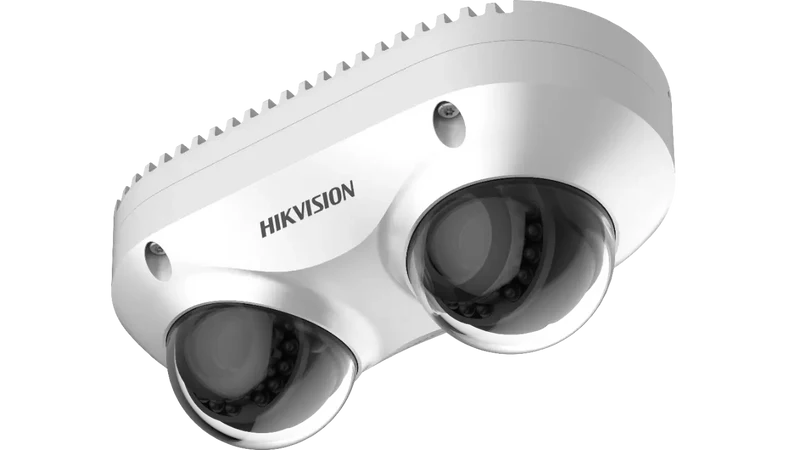

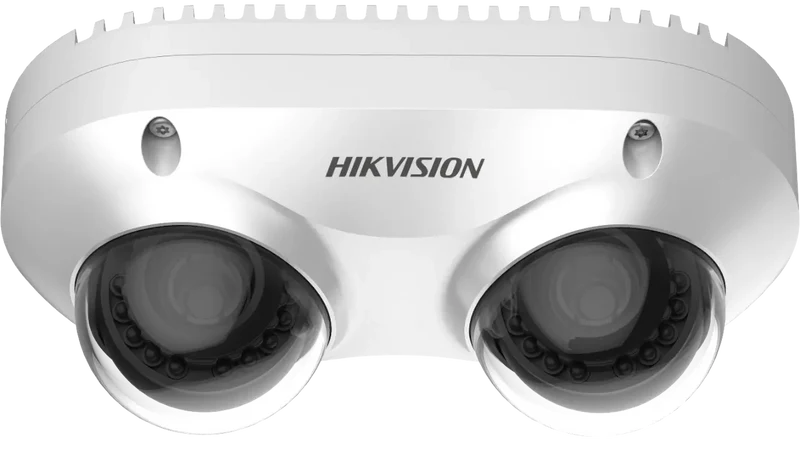

Panoramic Dual-Directional PoE Security Camera, 3840 × 2160 @ 24fps, IR Night Vision, IP67 & IK10

399,99 €239,79 €Oferta
Cantidad

Descripción

  • High-quality imaging with 8MP resolution
  • 3D DNR technology delivers clean and sharp images
  • Efficient H.265 compression technology
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • A built-in heater provides ultra-low temperature start-up to -40℃
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Built-in microphone for real-time audio security
  • Easy installation with Power over Ethernet (PoE) technology
Specification
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.056 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day &Night IR Cut Filter
Angle Adjustment P: -90 to 90°; T: 0 to 60° (2.8mm), 0 to 70° (4/6mm); R: 0 to 355°
Lens
Focal Length & FOV 2.8mm @ F2.0, horizontal FOV 103°, vertical FOV 53°, diagonal FOV 124°
4 mm @ F2.0, horizontal FOV 79°, vertical FOV 41°, diagonal FOV 94°
6 mm @ F2.0, horizontal FOV 50°, vertical FOV 27°, diagonal FOV 58°
Lens Mount M12
Aperture Range F2.0
DORI
DORI 2.8 mm: D: 105.4 m, O: 41.8 m, R: 21.1 m, I: 10.5 m
4 mm: D: 123.5 m, O: 49.0 m, R: 24.7 m, I: 12.3 m
6 mm: D: 181.5 m, O: 72.0 m, R: 36.3 m, I: 18.1 m
Illuminator
Supplement Light Range Up to 10 m
Smart Supplement Light Yes
IR Wavelength 850nm
Video
Main Stream 50 Hz: 12.5 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 12.5 fps (640 × 480, 704 × 576)
60 Hz: 15 fps (640 × 480, 704 × 480)
Video Compression H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control VBR/CBR
Scalable Video Coding (SVC) H.265 and H.264 support
Region Of Interest (ROI) 4 fixed regions for each stream
Audio
Audio Type  -S: Stereo
Audio Compression  -S: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate  -S: 64Kbps(G.711) / 16Kbps(G.722.1)/16Kbps(G.726)/32-60Kbps(MP2L2)/250Kbps(PCM)
Audio Sampling Rate  -S: 8 kHz/16 kHz/32kHz/44.1kHz/48kHz
Environmental Noise Filtering  -S: Yes
Smart Features
Basic Event Detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Detection Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Scene change detection, audio exception detection
Linkage Upload to FTP/NAS/memory card, send email, notify surveillance center
Network
Network Storage NAS(NFS,SMB/ CIFS)
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View Up to 20 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host Up to 32 user levels: Administrator, Operator, and User
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
Image Parameters Switch Yes
Image Settings Rotate, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or a web browser.

*Rotate and perimeter protection events (line crossing detection, intrusion detection, region entrance detection, region exiting detection) cannot be enabled at the same time.
Day/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm In (-S)
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, HLC, Defog, EIS, 3D DNR
Privacy Mask Yes
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24-bit BMP format
Interface
Audio Interface Without-S: 2 built-in mics
 -S: 2 built-in mics, 1 line in, 1 line out
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Alarm  -S: 1 input, 1 output (max. 36 VDC, 30mA)
RS-485  -S: 1 RS-485 interface, half duplex
Reset Key Yes
General
Power Supply 12 VDC, 0.9A, max. 11 W, Ø5.5 mm coaxial power plug
POE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 11 W
Material PC + Aluminum alloy
Dimensions 164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7")
Package Dimension 227 × 172 × 125 mm (8.9" × 6.8" × 4.9")
Weight 770g (1.7 lb.)
With Package Weight 1053g (2.3 lb.)
Startup And Operating Conditions  -40° to 60°, humidity 95% or less (non-condensing)
General Function Mirror, password protection, watermark, IP address filter, one-key reset, anti-flicker, heart
Web Client Language 32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Approval
EMC FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection Ingress protection: IP67, IK10
