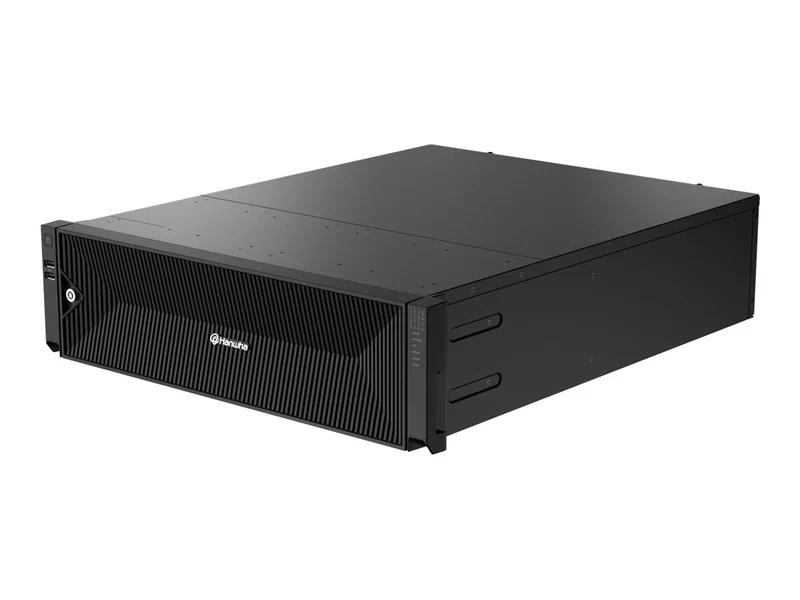

NVR Hanwha Vision XRN-6420DB4

Sobre este producto

• 📹 NVR autónomo con soporte para hasta 64 canales de video para sistemas de vigilancia completos.
• 💾 Capacidad de almacenamiento de hasta 160 TB para operación continua.
• 🗜️ Compresión H.264 y H.265 que maximiza la eficiencia de almacenamiento.
• 🔌 Múltiples opciones de conectividad: HDMI, USB y Ethernet para configuración flexible.
• 🛡️ Soporte RAID 5 y RAID 6 con Trusted Platform Module (TPM) para arranque y datos seguros.

Característica	Detalle
Marca	Hanwha Vision
Línea de producto	Hanwha Vision
Modelo	XRN-6420DB4
Fabricante	Hanwha
DDNS Support	Yes
Características	Automatic shutdown, Built-in buzzer, CGI support, Data compression, Failover support, GOP control, Hallway view, Hanwha DDNS, Hanwha Techwin Root CA encryption, IP address filtering, Multicast mode, Signed firmware, Source-Specific Multicast (SSM), Trusted Platform Module (TPM), User access log
Network Interfaces	Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols	ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF, RTCP, RTP, RTSP, SMTP, SNMP, SUNAPI, TCP, TCP/IP, UDP, UDP/IP, UPnP
Additional Ports	USB 2.0 x 2, USB 3.0 x 2
Audio Outputs	Mini-phone 3.5 mm x 1
Network Ports	10/100/1000Base-T x 3
Video Output Ports	HDMI x 2
Touchscreen	No
Frequency	50/60 Hz
Input Voltage	100 - 240 V
Power Consumption	265 watt
Edición del sistema operativo	Linux
Browser	Edge/Safari/Google Chrome
Temp. máx. de operación	104 degree Fahrenheit
Temp. mín. de operación	32 degree Fahrenheit
Humedad de operación	20 - 85% RH
Operating Systems	Android, Apple iOS, macOS 13.5.2, Windows 10
Alarm Ports	Alarm input x 8, Alarm output x 4
Audio Channels	64
Compression Format	AAC, G.711, G.726, H.264, H.265, MJPEG
Device Type	Standalone NVR
Display Modes	2 split screens, 3 split screens, 32 split screens, 36 split screens, 4 split screens, 6 split screens, 64 split screens, 8 split screens, 9 split screens, Dynamic layout
Frame Rate (Playback)	15 fps, 30 fps
Image Resolution	1920x1080, 3840x2160
Interface	Serial ATA
Networked	Yes
Package Content	Keyboard, Mouse
Cantidad por empaque	1
Playback Search	Bookmark, Date/time, Event, Smart search, Text
Quantity Supported	16
Record Events	Alarm, Analytics, Audio detection, Continuous, Defocus detection, Event, Post-event, Pre-event, Scheduled, Sensor, Video loss
Supported Max Total Capacity	160 TB
Video Channels	64
Video Recording Resolution	32 Megapixels, CIF
Alto	5.2 inch
Weight	33.29 lbs
Ancho	17.3 inch
Profundidad	22.5 inch
Color	Black
Color	Black
Estándares	cULus, EAC, FCC, IEEE 802.1x, NDAA, TLS
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
