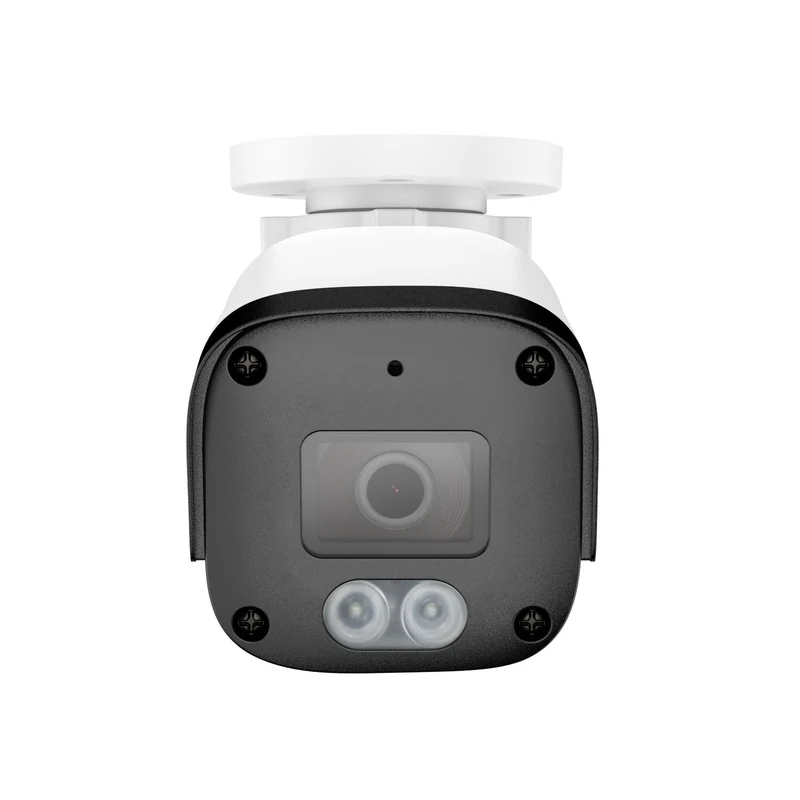

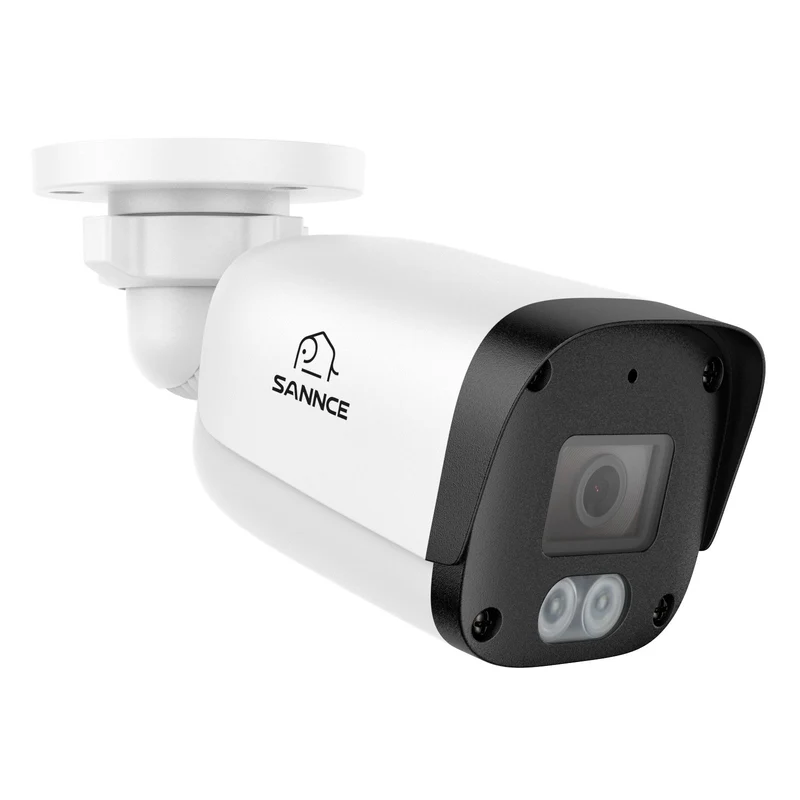

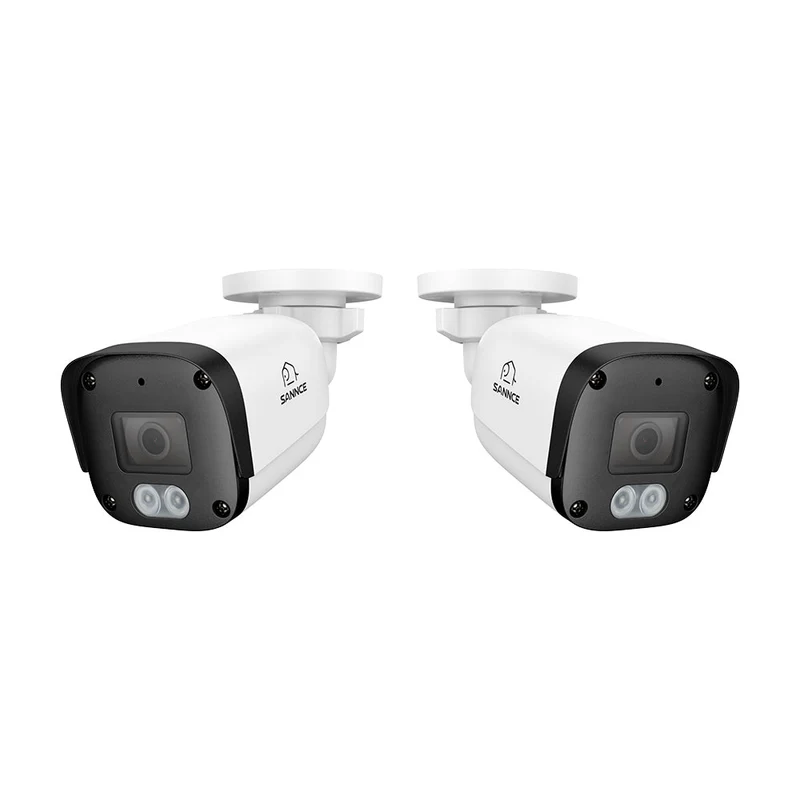

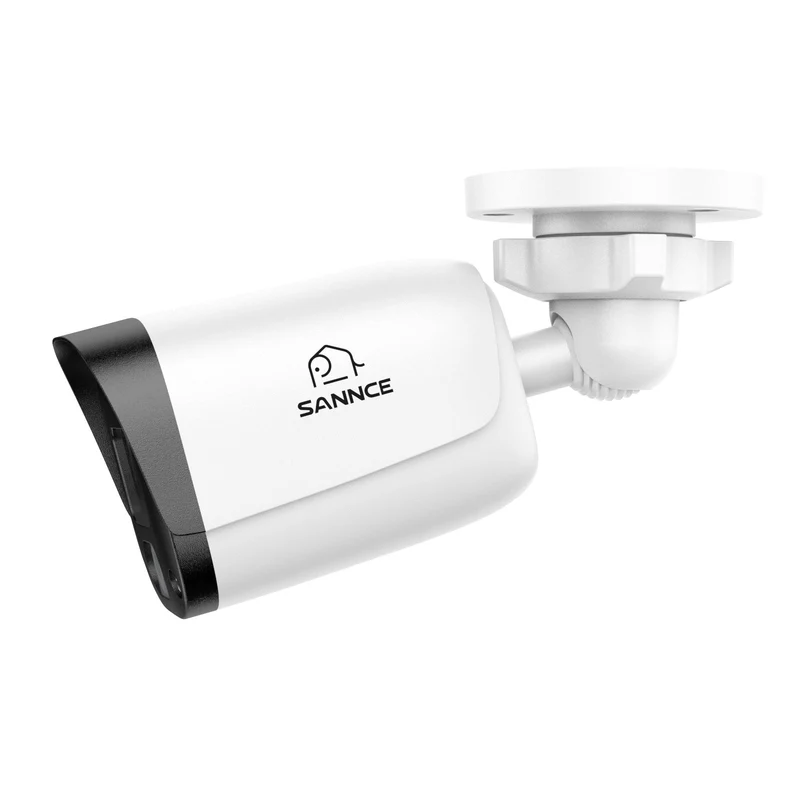

FW800 - Add-on 4K POE Security Camera w/ Audio, AI Detection, Wider-Angle, Dual-Light Color Night Vision, IP67 Waterproof

What's in the box

• 2X Cameras
• 2X Waterproof Lid

• 1X 100ft Ethernet Cable
• 1X 60ft Ethernet Cable
• 2X Wall Sticker
• 1X User Manual
• 2X Mounting Screw Bags
• 2X Drill Template

Specifications

IP Camera Model Number		I91FW
Camera	Image Sensor	1/2.7" Progressive Scan CMOS
	Main Stream	50 Hz:20fps（3840x2160）,25fps(3200x1800，2880x1620，2560×1440, 2304×1296, 1920×1080, 1280×720) 60 Hz:20fps（3840x2160）,30fps(3200x1800，2880x1620，2560×1440, 2304×1296, 1920×1080, 1280×720)
	Sub-stream	50 Hz: 25fps(704×576, 704×288, 640×360, 352×288) 60 Hz: 30fps(704×480, 704×240, 640×360, 352×240)
	Wide Dynamic Range	DWDR
	Electron Shutter	1s～1/100000s
	Min. Illumination	Color: 0.02Lux@(F1.6,AGC ON), B/W: 0Lux with IR
	White Balance	Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/ Lock White Balance
	Defog	Yes
	Privacy Mask	4 black static areas
	Number of Infrared LEDs	2 pcs
	Supplement Light	Smart Dual Light IR 30m, White light 20m
Lens	focal length	2.8mm Fixed Focal Length Lens
	Angle of View	Horizontal FOV 112.1°, vertical FOV 60.4°, diagonal FOV 128.7°
	Aperture	F1.6
	Lens Mount Types	M12
Interface Performance	Network Port	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Audio Port	Built-in MIC (Pickup Distance of 5m)
	Extended Protocol	Onvif Profile S/T, CGI
Coding Mode	Video Compression	S+265/H.265/H.264B/H.264M/H.264H
	Video Bitrate	32Kbps~6Mbps
	Audio Compression Algorithm	G.711A/G.711U/ADPCM_D
	Audio Sampling Rate	8kHz
Other Functions	IE Access	IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
	IP Address	Support static and dynamic IP addresses, and custom network cards
	Network Protocol	RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast
	System Time Clock	NTP Time Calibration, Time Zone Setting, Daylight Saving Time
	Remote Administration	Network Remote Upgrade, Parameter Settings, and Configuration Import and Export
	Smart Analysis	human & Vehicle Detection
	General Functions	Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.
General	Housing	Metal & Plastic
	Color	White & Black
	Operating Power	PoE (802.3af), Max. 5W
	Operating Temperature	-22 °F – 140 °F/-30 °C – 60 °C
	Indoor/Outdoor Use	Indoor/Outdoor
	Interface Protection	IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.
	Dimension (L X W X H)	6.46" X 2.87" X 2.87"/ 164 X 73 X73mm
	Weight	0.66 lb./300g
