Marca: SANNCE

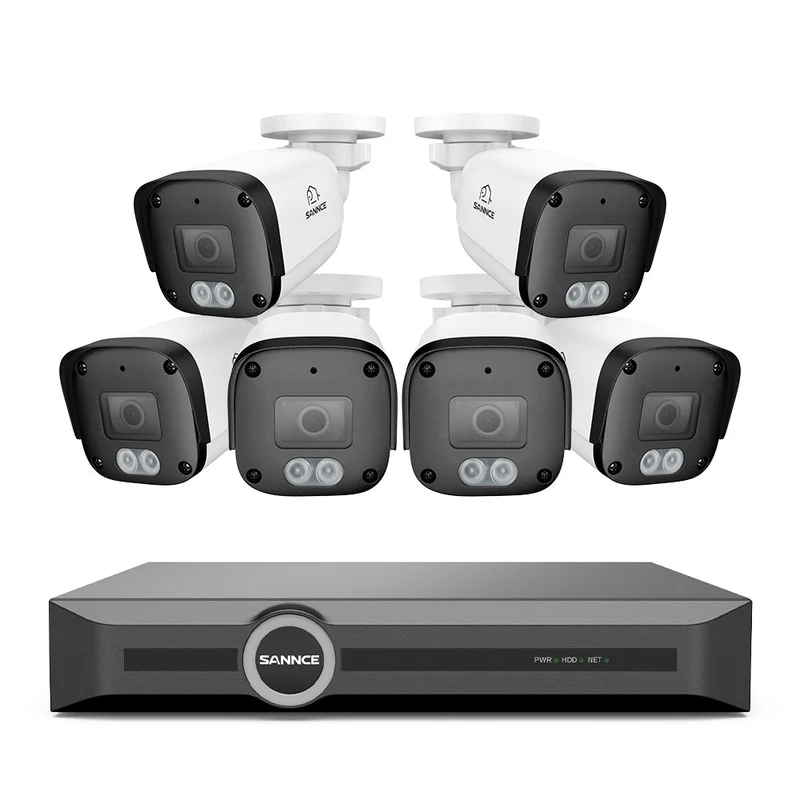

FW800 - 4K POE Security Camera System w/ Audio, AI Detection, S+265, Dual-Light Color Night Vision, IP67 Waterproof

289,99 €181,66 €Oferta
HDD Capacity
Cantidad

Descripción

What's in the box

  • 6X Cameras
  • 1X NVR
  • 1X Power Adapter
  • 3X 100ft/30m Network Cables
  • 3X 60ft/18m Network Cables
  • 1X 1.8m HDMI Cable
  • 1X 1m Network Cable
  • 1X USB Mouse
  • 1X Wall Sticker
  • 1X User Manual
  • 6X Mounting Screw Bags
Specifications
NVR Model Number N98PBN
Video & Audio Decoding Format S+265; H.265; S+264; H.264
IP Video Input 8CH PoE
Video Output HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz)
VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz)
Audio G.711A; G.711U; ADPCM_D
Incoming/outgoing Bandwidth 60/40 Mbps
Max Recording Resolution 8MP(30fps)×1,6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×8
Max Playback Resolution 8MP(30fps)×1, 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4
Third-party Camera Access ONVIF(Profile S/T); RTSP
Record Playback Multi-channel Playback 4
Record Mode Alarm Recording; Schedule Recording
Storage Method Local HDD
Backup USB storage device
Playback Function Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital Zoom
Alarm General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W
Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE
Overload; Voltage Alarm(IPC); RTC Failure
Storage HDD 1 SATA Interface
HDD Capacity Up to 8 TB capacity for each HDD
Network Network Protoco ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP;
UDP; Unicast; UPnP
Mobile Phone Access Android; iOS; P2P
System Compatibility CGI; SDK
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
External Port USB 2×USB2.0
HDMI 1×HDMI(supports up to 4K resolution output)
VGA 1×VGA
Network Interface 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
PoE PoE Interface 8×RJ45, 10/100 Mbps self-adaptive Ethernet port
PoE Budget 72W
Power per PoE Port 30W
Standard IEEE 802.3 af/at
General UI Language English;German; French;Italian;  Spanish
Operating Power DC48V 1.875A
Power Consumption <10W(without HDD&without PoE)
Working Temperature 10 °C to 55 °C (14 °F to 131 °F)
Dimensions (W X H X D) 225 mm × 231 mm × 45.1 mm
Weight (Without Hard Disk) 2 kg

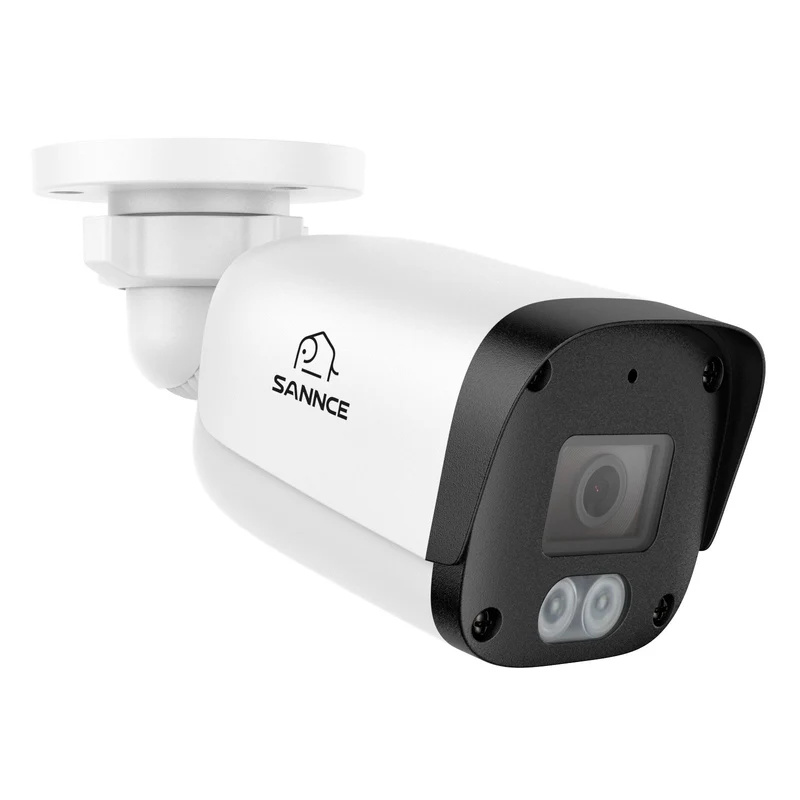

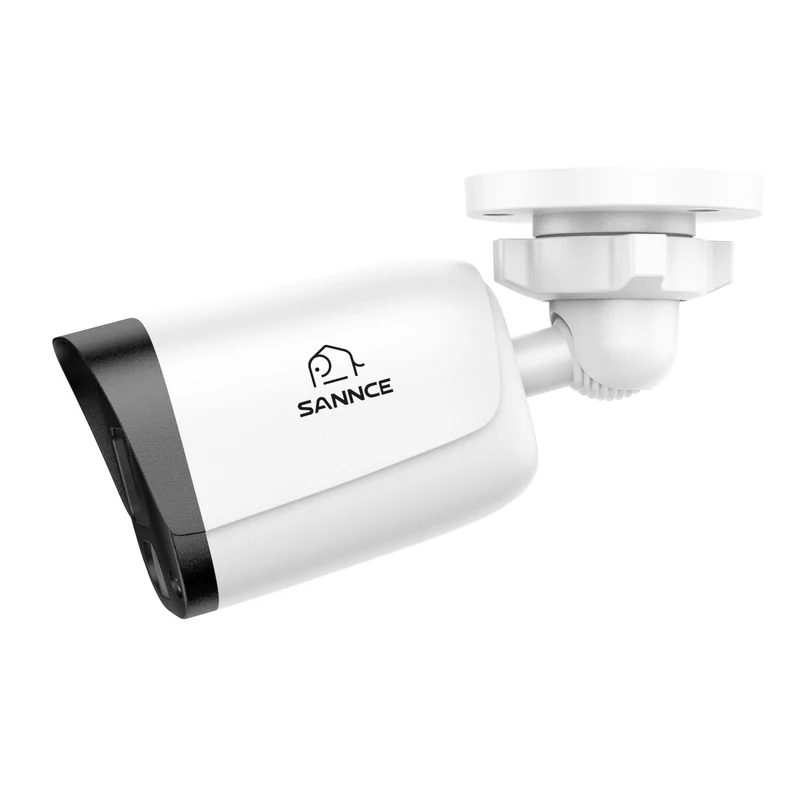

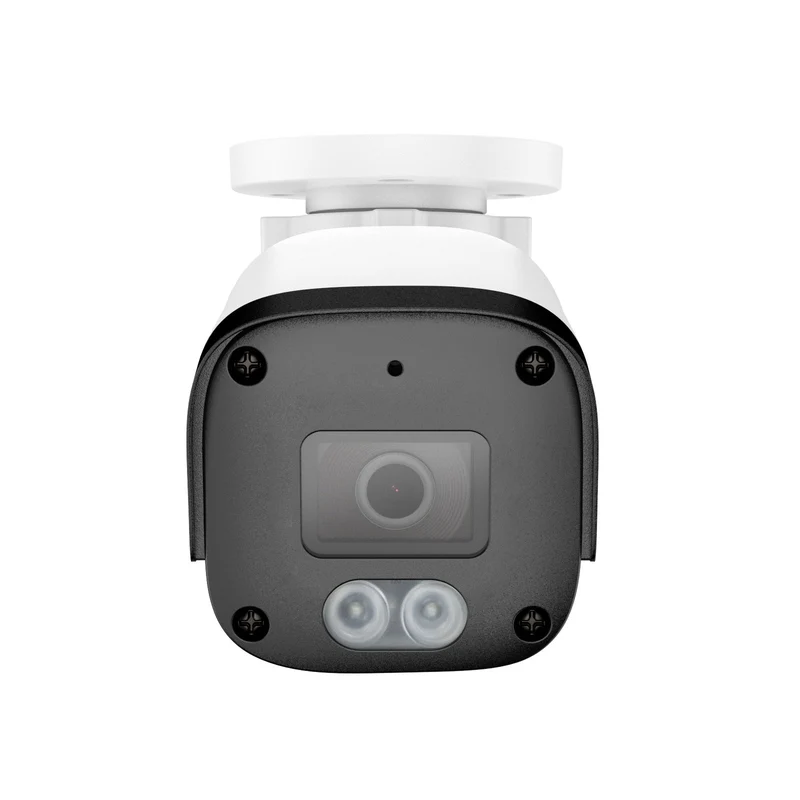

IP Camera Model Number I91FW
Camera Image Sensor 1/2.7" Progressive Scan CMOS
Main Stream 50 Hz:20fps（3840x2160）,25fps(3200x1800，2880x1620，2560×1440, 2304×1296, 1920×1080, 1280×720)
60 Hz:20fps（3840x2160）,30fps(3200x1800，2880x1620，2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub-stream 50 Hz: 25fps(704×576, 704×288, 640×360, 352×288)
60 Hz: 30fps(704×480, 704×240, 640×360, 352×240)
Wide Dynamic Range DWDR
Electron Shutter 1s～1/100000s
Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/ Lock White Balance
Defog Yes
Privacy Mask 4 black static areas
Number of Infrared LEDs 2 pcs
Supplement Light Smart Dual Light IR 30m, White light 20m
Lens focal length 2.8mm Fixed Focal Length Lens
Angle of View Horizontal FOV 112.1°, vertical FOV 60.4°, diagonal FOV 128.7°
Aperture F1.6
Lens Mount Types M12
Interface Performance Network Port 1 RJ45 10 M/100 M self-adaptive Ethernet port
Audio Port Built-in MIC (Pickup Distance of 5m)
Extended Protocol Onvif Profile S/T 、CGI
Coding Mode Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bitrate 32Kbps~6Mbps
Audio Compression Algorithm G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz
Other Functions IE Access IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
IP Address Support static and dynamic IP addresses, and custom network cards
Network Protocol RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast
System Time Clock NTP Time Calibration, Time Zone Setting, Daylight Saving Time
Remote Administration Network Remote Upgrade, Parameter Settings, and Configuration Import and Export
Smart Analysis human & Vehicle Detection
General Functions Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.
General Housing Metal & Plastic
Color White & Black
Operating Power PoE (802.3af), Max. 5W
Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor Use Indoor/Outdoor
Interface Protection IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.
Dimension (L X W X H) 6.46" X 2.87" X 2.87"/ 164 X 73 X73mm
Weight 0.66 lb./300g
IP Camera Model Number I91WD
Camera Image Sensor 1/2.7" Progressive Scan CMOS
Main Stream 50 Hz:20fps（3840x2160）,25fps(3200x1800，2880x1620，2560×1440, 2304×1296, 1920×1080, 1280×720)
60 Hz:20fps（3840x2160）,30fps(3200x1800，2880x1620，2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub-stream 50 Hz: 25fps(704×576, 704×288, 640×360, 352×288)
60 Hz: 30fps(704×480, 704×240, 640×360, 352×240)
Wide Dynamic Range DWDR
Electron Shutter 1s～1/100000s
Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/ Lock White Balance
Defog Yes
Privacy Mask 4 black static areas
Number of Infrared LEDs 2 pcs
Supplement Light Smart Dual Light IR 30m, White light 20m
Lens focal length 2.8mm Fixed Focal Length Lens
Angle of View Horizontal FOV 112.1°, vertical FOV 60.4°, diagonal FOV 128.7°
Aperture F1.6
Lens Mount Types M12
Interface Performance Network Port 1 RJ45 10 M/100 M self-adaptive Ethernet port
Audio Port Built-in MIC (Pickup Distance of 5m)
Extended Protocol Onvif Profile S/T 、CGI
Coding Mode Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bitrate 32Kbps~6Mbps
Audio Compression Algorithm G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz
Other Functions IE Access IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
IP Address Support static and dynamic IP addresses, and custom network cards
Network Protocol RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast
System Time Clock NTP Time Calibration, Time Zone Setting, Daylight Saving Time
Remote Administration Network Remote Upgrade, Parameter Settings, and Configuration Import and Export
Smart Analysis human & Vehicle Detection
General Functions Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.
General Housing Metal & Plastic
Color White & Black
Operating Power PoE (802.3af), Max. 5W
Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor Use Indoor/Outdoor
Interface Protection IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.
Dimension (L X W X H) 4.61" X 4.61" X 3.78"/ 117 X 117X 96mm
Weight 0.84 lb./380g
