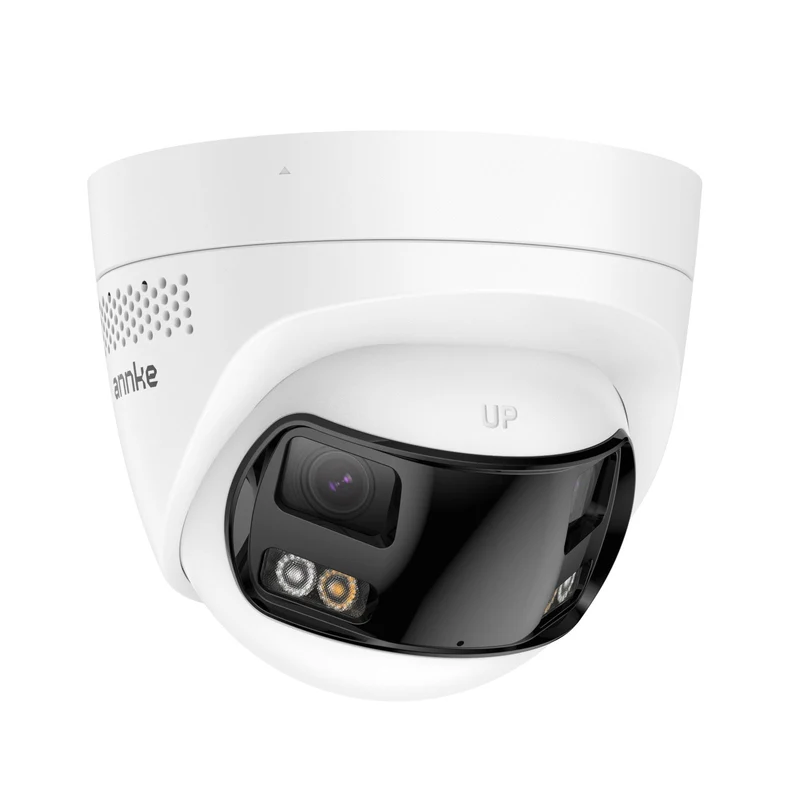

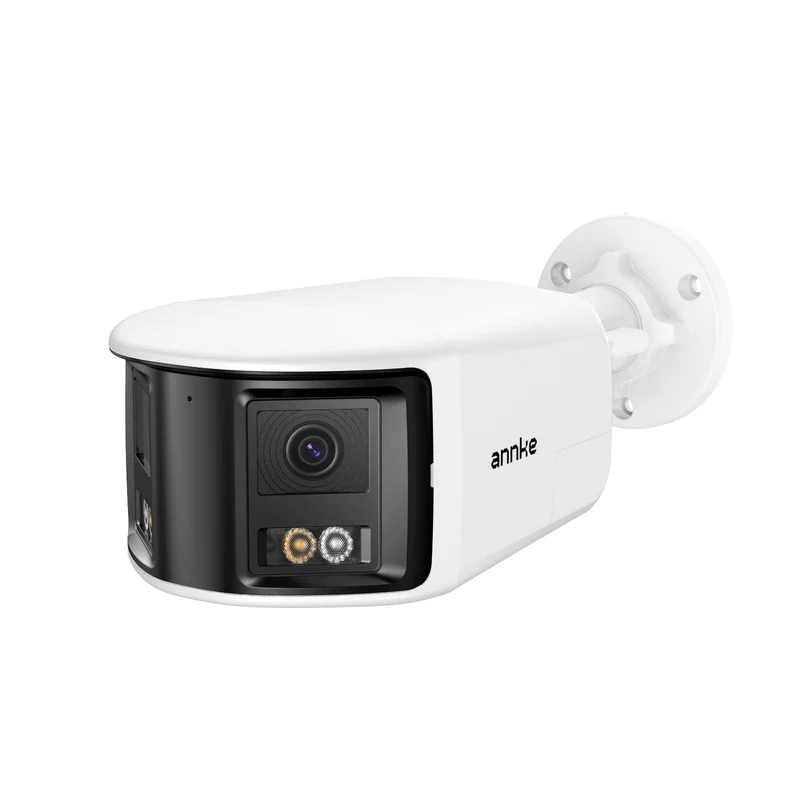

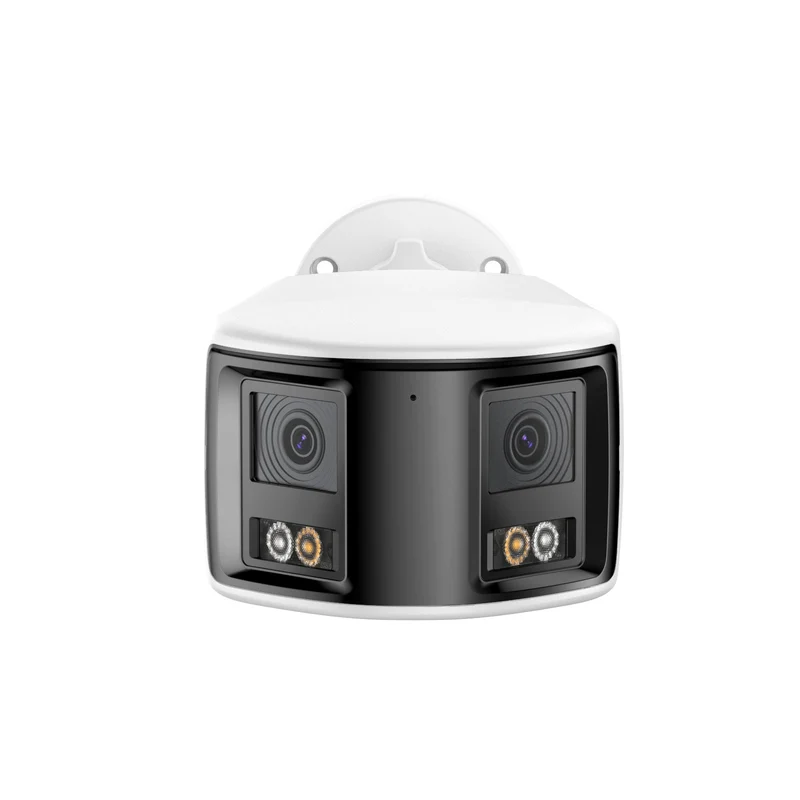

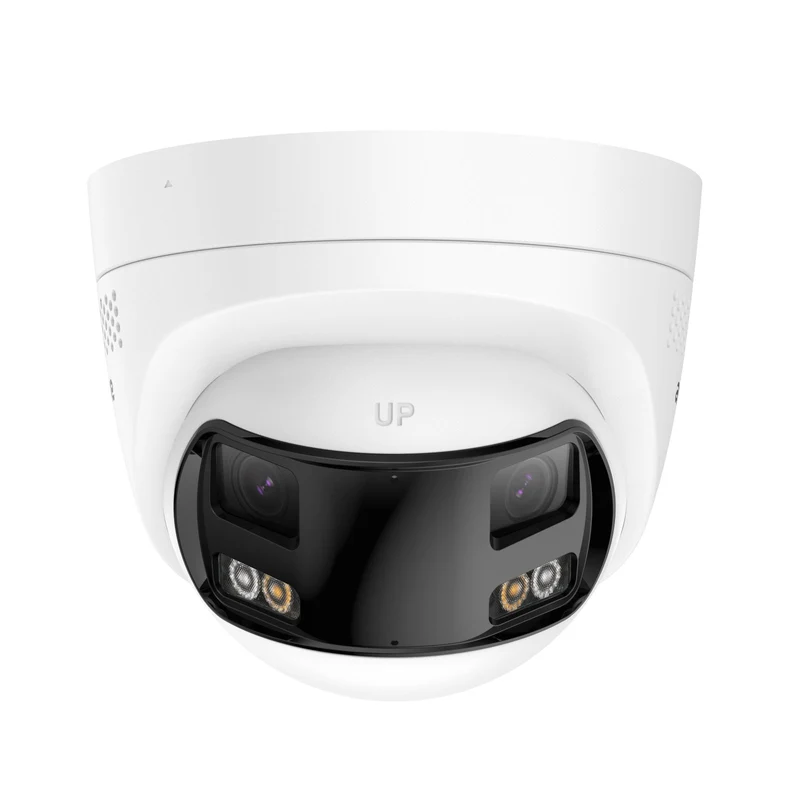

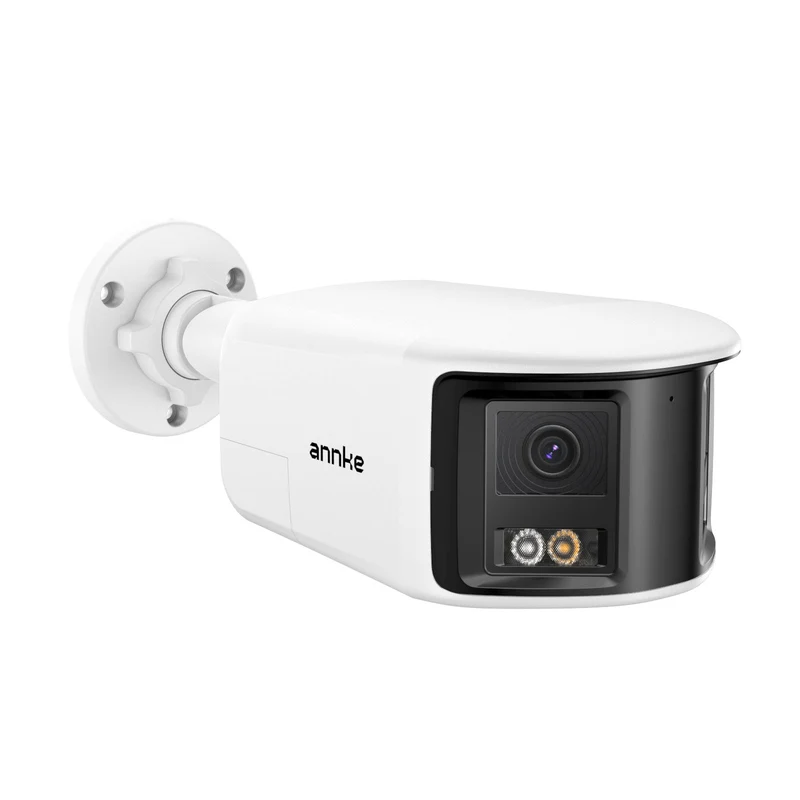

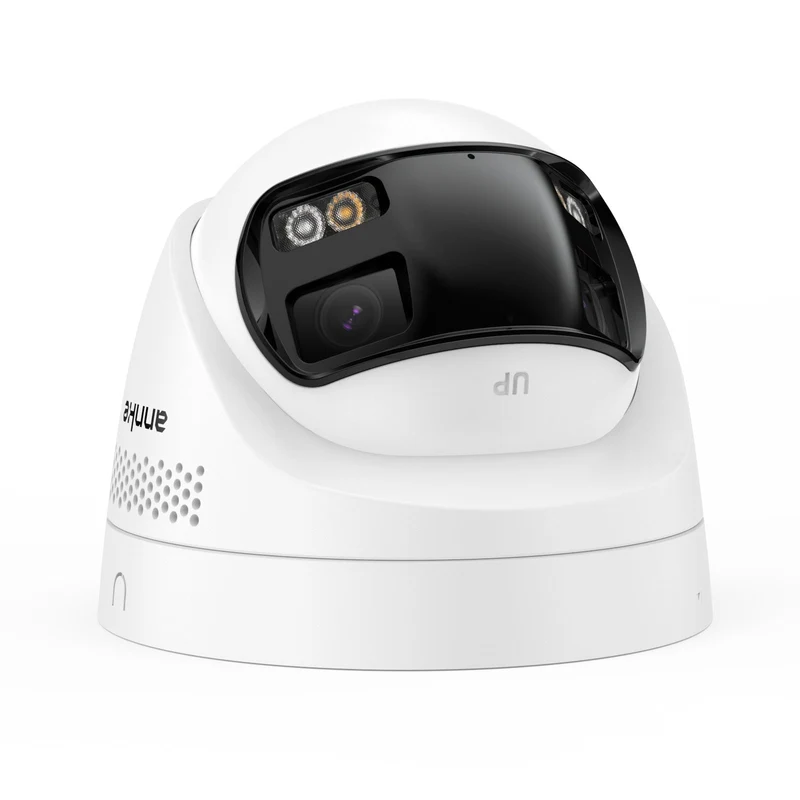

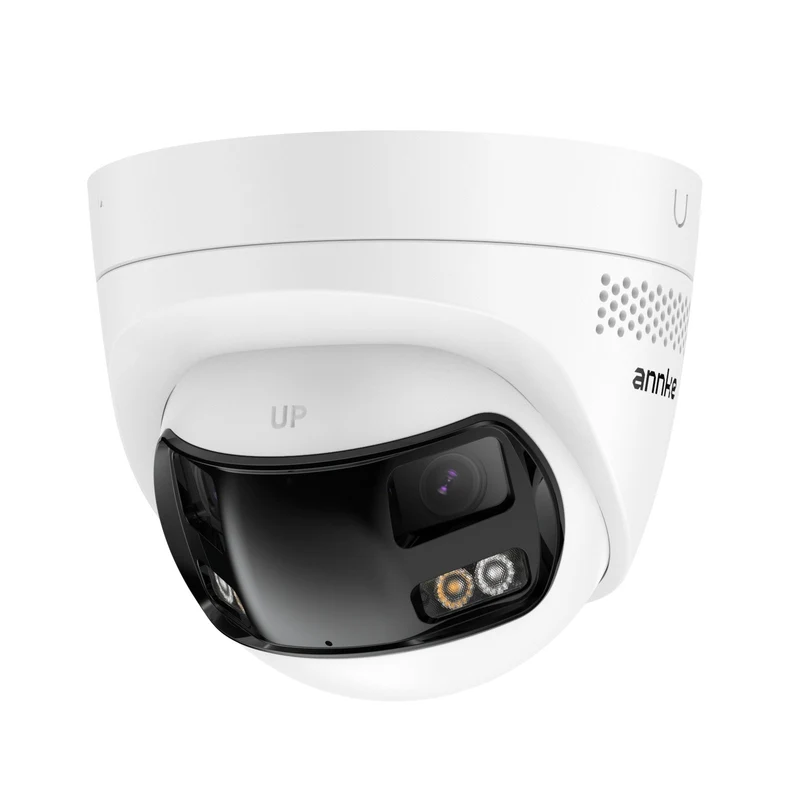

FCD800 - 8MP UHD Dual-Lens Outdoor PoE Security Camera, 180° Panoramic View, Smart Dual Light Night Vision, Two-Way Audio, Active Siren & Alarm, Human & Vehicle Detection, IP67

ANNKE FCD800

8MP UHD + 180° Panoramic All You Need, In One View

Panoramic 180° Ultra-Wide Coverage with Dual-Lens Fusion

Experience next-level surveillance with a seamlessly stitched 180° ultra-wide field of view in a cinematic 20:9 aspect ratio. Dual-lens technology delivers unmatched visibility with zero blind spots, ideal for large areas like backyards, squares, or campuses.

Stunning 8MP Clarity with High-Sensitivity BSI Sensors

Powered by dual 1/2.5” large-format BSI sensors and premium [email protected] lenses, this camera delivers crystal-clear 4096 x 1860 resolution at 20fps. Even when zoomed in, every detail remains sharp and vivid—ideal for identifying faces, license plates, and more.

Sound & Light Alarm for Active Deterrence

Stay in control with dual warning methods—siren and flashing light—that can be triggered automatically through alarm linkage or manually via the mobile app.

Choose from 12 built-in alarm sounds or upload your custom audio for a truly personalized security response.

Smart Dual-Light Modes for Day & Night Clarity

Adapt to any lighting condition with three light modes: White Light, Infrared (IR), and Smart Dual-Light. With up to 30 meters (98 ft) of illumination range, this camera ensures clear monitoring around the clock.

In Smart mode, the camera uses IR lights to provide a black-and-white image at night to reduce light pollution. When motion—like a person or vehicle—is detected, it automatically switches to white light to deliver a full-color image for enhanced detail. Once the event ends, it seamlessly reverts to IR mode.

Smarter Detection with Motion 2.0 – 99% Accuracy

Powered by advanced Motion 2.0 AI technology, this camera uses deep learning algorithms to accurately distinguish between people, vehicles, and irrelevant movements. Say goodbye to constant false alarms caused by wind, animals, or shadows.

Real-Time Two-Way Audio for Instant Communication

Stay in control with a built-in microphone and speaker that enable clear two-way talk anytime, anywhere. Whether you’re checking in on loved ones, greeting guests, or warning unwanted visitors, communicate in real time with just a tap on your phone. Hear what’s happening and speak back instantly—no extra devices needed.

Flexible Storage Options for Continuous Protection

This security camera features a built-in TF card slot, supporting up to 512GB microSD for loop recording. For expanded storage solutions, the camera also supports NAS and NVR integration, giving you the freedom to choose the storage method that best fits your security setup.

IP67 Weatherproof & Wide Operating Range

Designed for durability, this camera boasts an IP67-rated waterproof and dustproof housing, making it ideal for both indoor and outdoor use, rain or shine. Perfect for large-area surveillance, it’s especially well-suited for plazas, tourist attractions, school campuses, and open public spaces, where a wide-angle view and dependable performance are essential.

Small on Prices, Big on Features

H.265+ Coding

Store more recordings with the same hard drive and enjoy faster video transmission with less bandwidth.

Image Enhancement

With 120dB WDR, BLC, HLC, and 3D DNR, you get sharp, balanced footage—even in backlight or glare.

PoE & DC 12V Power Supply

Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for the power supply.

APP Control

View current and past situations anytime and anywhere, and support multi-device remote access.

What's in the BoxWhat's in the Box
1X IP Camera 1X Surveillance Sign 1X 1m Network cable 1X Waterproof connector 1X Mounting Screws Bag 1X User's Manual For Camera
Specification

IP Camera (Model Number: I91ET/I91EV)
Camera	Image sensor	2×1/2.5" Progressive Scan CMOS
	Max resolution	3632 × 1632
	Main Stream	50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632)
	Sub Stream	50 Hz：20 fps（1200 × 536, 960 × 432） 60 Hz：20 fps（1200 × 536,960 × 432）
	Video compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub Stream: H.265/H.264/MJPEG
	Video Bit Rate	32 Kbps to 16 Mbps
	Built-in Microphone	Built-in Microphone, record with audio
	Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
	Built-in Speaker	Yes, max. sound pressure: 10 cm: 97 dB
	Lens	Dual lens: 2.8 mm
	Min. Illumination	Colour: 0.005 Lux @ (F1.6, AGC ON)
	Angle of View	Horizontal FOV: 180°, Vertical FOV: 77°
	Supplement Light Type	Smart light, white light, IR light
	Supplement Light Range	White light up to 30 m, IR light up to 30m
	Motion detection 2.0	Support, including human & vehicle detection
	Image Parameters Switch	Yes
	Image Enhancement	BLC, HLC, 3D DNR
	Wide Dynamic Range	120dB WDR
	Network Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP
	API	Support Open Network Video Interface protocol, version 19.12
	Basic Event	Motion detection (supports human and vehicle detection), video tampering, and exception detection
	Audio Alarm	Support(Parameters adjustable, supports custom audio, can be triggered from the APP)
	Flashing Alarm	White light, frequency adjustable, can be triggered from the APP
	Region of Interest (ROI)	1 fixed region for mainstream
	Privacy Mask	4 programmable polygon privacy masks
	General Function	Rotate, remote access, IP Address Filter
General	Housing	Metal & Plastic, white colour
	Operating Power	PoE (802.3af),max 11.5W, 12 VDC ± 25%, Ø 5.5 mm coaxial power plug, max 10W
	Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Storage	Built-in micro SD/SDHC/SDXC slot, up to 512 GB
	Hardware Reset	Yes
	Operating Temperature	-22 °F – 140 °F /-30 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP67
	Dimension (L x W x H)	103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2")
	Weight	Approx. 560 g (1.2 lb.)
