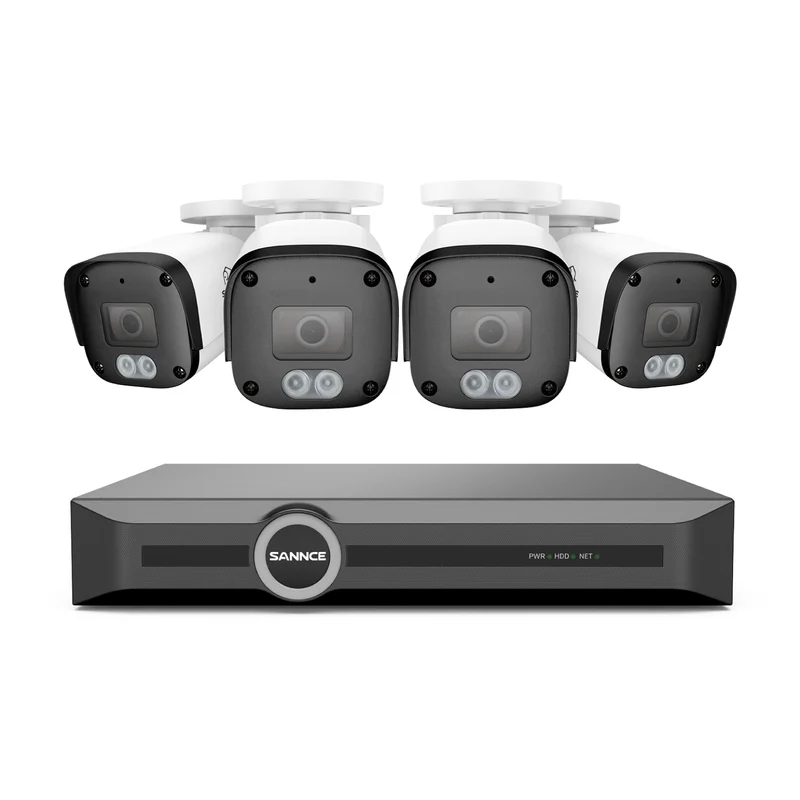

EH500 - 5MP 8 Channel PoE Security System, 6MP NVR, S+265., Smart AI Human & Vehicle Detection & Playback, Smart Notification with Image Attached

• Crystal-clear Night Vision

  With BLC/3D DNR/HLC tech, you can get cleaner images and clearer night vision, 4mm 6-layer all-glass lens also helps you see further.

• IP67 Waterproof

  This IP67-rated camera can resist high-low temperatures from -30 °C to +60 °C (-22 °F to +140 °F), use in any outdoor conditions.

• S+265 Records Longer

  Not only supports S+265, H.265 but S+264, H.264 coding, which can help you achieve long time recording and greatly save hard drive cost.

• Listen Clearly Without Noise

  Built-in high-sensitivity pickup, it supports filter environment noise, audio and video synchronization, restoring the real scene.

What's in the Box

1X Power Supply

2X18M Network Cable

2X 30M Network Cables

1X User Manual

1X USB Mouse

1X 1M Short Network Cable

1X HDMI cable

4X Screw Package

4X Window Stickers

Specification

NVR (Model Number: N98PBM)
Video & Audio	Decoding Format	S+265; H.265; S+264; H.264
	IP Video Input	8CH PoE
	Video Output	HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz),independent output
		VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
	Audio	G711A; G711U; ADPCM_DIV4
	Incoming/outgoing Bandwidth	60/40 Mbps
	Max Recording Resolution	Up to 6MP@30fps(Frame rate depends on IP camera)： 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×8
	Max Playback Resolution	Up to 6MP@30fps(Frame rate depends on IP camera)： 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4
Record Playback	Multi-channel Playback	4
	Record Mode	Alarm Recording; Schedule Recording
	Storage Method	Local HDD
	Backup	USB storage device
	Playback Function	Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital Zoom
Alarm	General Alarm	Motion Detection; Mask Alarm; Alarm Input(IPC)
	Exceptions Alarm	Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure
Storage	HDD	1 SATA Interface
	HDD Capacity	Up to 6 TB capacity for each HDD
Network	Network Protocol	ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP
	Mobile Phone Access	Android; iOS; P2P
	System Compatibility	CGI; SDK
	Web	IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
External Port	USB	2×USB2.0
	HDMI	1×HDMI
	VGA	1×VGA
	Network Interface	1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
PoE	PoE Interface	8×RJ45, 10/100 Mbps self-adaptive Ethernet port
	PoE Budget	45W
	Power per PoE Port	30W
	Standard	IEEE 802.3 af/at
General	UI Language	English; German; French; Italian; Spanish
	Operating Power	DC48V 1.35A
	Power Consumption	<10W(without HDD & without PoE)
	Working Temperature	10 °C to 55 °C (14 °F to 131 °F)
	Dimensions (W X H X D)	225 mm × 231 mm × 45.1 mm
	Weight (Without Hard Disk)	kg

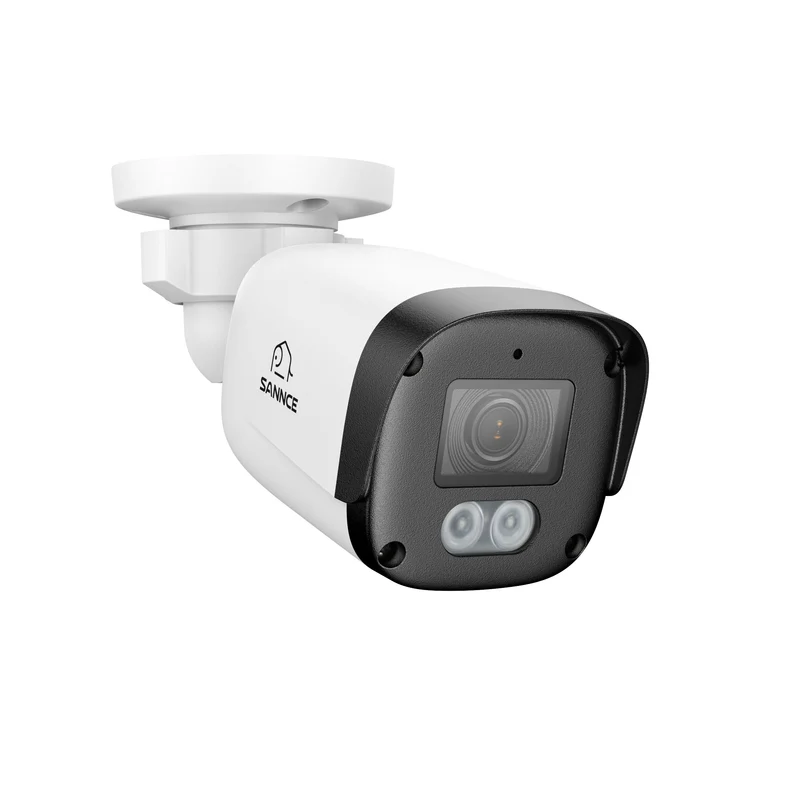

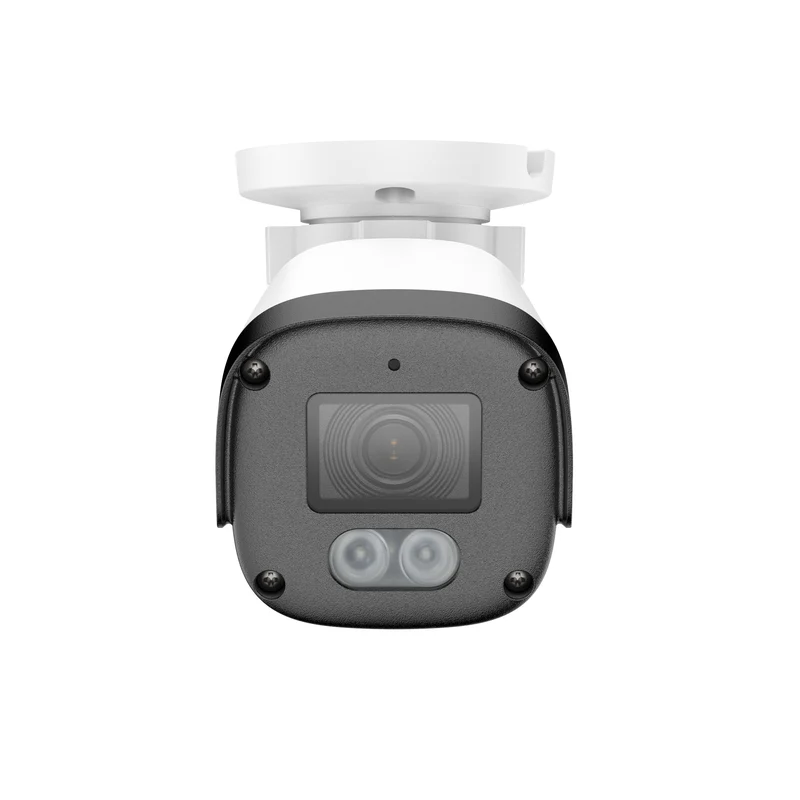

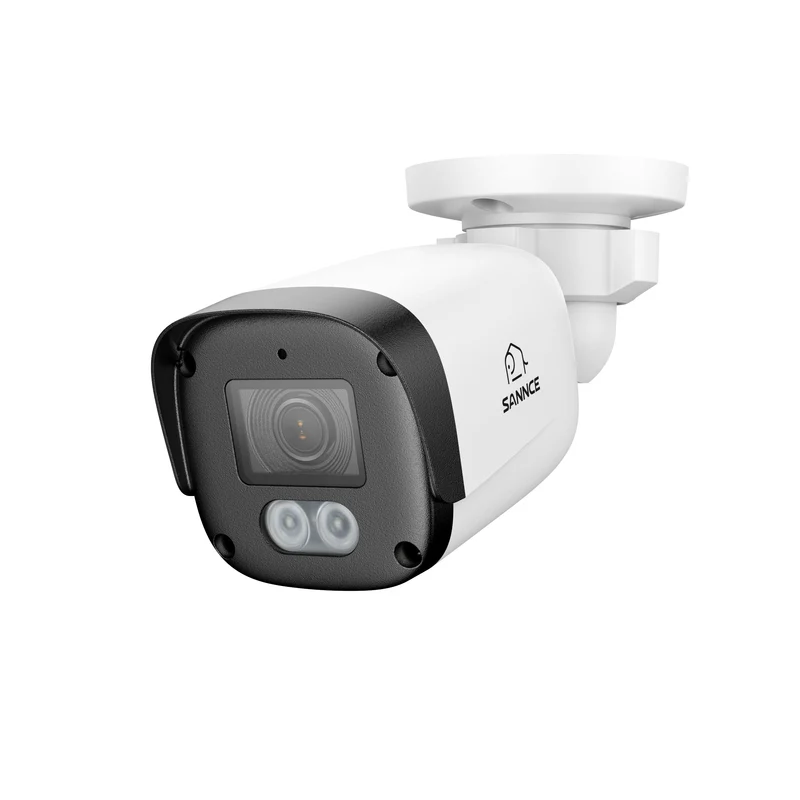

IP Camera (Model Number: I51EP)
Camera	Image Sensor	1/3" Progressive Scan CMOS
	Main Stream	50 Hz: 20fps 2880x1620),25fps(2560x1440,2304x1296,1920x1080,1280x720) 60 Hz: 20fps 2880x1620),30fps(2560x1440,2304x1296,1920x1080,1280x720)
	Sub-stream	50 Hz: 25fps(704x576,704x288,640x360,352x288) 60 Hz: 30fps(704x576,704x288,640x360,352x288)
	Wide Dynamic Range	DWDR
	Electron Shutter	1s～1/100000s
	Image Processing	Support electronic zoom, horizontal flip, vertical flip, video flip, strong light suppression, backlight compensation, fog penetration, day/night mode switching, color to black conversion, white balance, wide dynamic range, electronic fog penetration, 3D digital noise reduction, Smart IR.
	Min. Illumination	Color 0.03 lux (@F2.0,AGC ON)；B/W: 0 lux with IR on
	Color to B/W Conversion	Support internal synchronization, black and white, color, and timing settings.
	Video Parameters	The image brightness, contrast, saturation, chroma and sharpness are adjustable
	Video Blocking	4 pieces
Lens	focal length	2.8mm Fixed Focal Length Lens
	Angle of View	Horizontal FOV 95.3°, vertical FOV 54.1°, diagonal FOV 107.3°
	Aperture	F2.0
	Lens Mount Types	M12
Interface Performance	Network Port	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Audio Port	Built-in MIC (Pickup Distance of 5m)
	Extended Protocol	Onvif Profile S/T 、CGI
Coding Mode	Video Compression	S+265/H.265/H.264B/H.264M/H.264H
	Video Bitrate	32Kbps~6Mbps
	Main Stream Default Bitrate	4Mbps
	Audio Compression Algorithm	G.711A/G.711U/ADPCM_D
	Audio Sampling Rate	8kHz/32kHz/48kHz
Light Function	Number of Infrared LEDs	2 pcs
	Night Vision Distance	Up to 100 ft/30 m
Other Functions	IE Access	IE10+、Firefox 85.0.4183.121、Edge 114.0.1823.79、Safari 15.6.1、Chrome 114.0.2
	IP Address	Support static and dynamic IP addresses, and custom network cards
	Network Protocol	HTTP, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, IPv4, SSH, Unicast, ARP, RTSP, FTP
	System Time Clock	NTP Time Calibration, Time Zone Setting, Daylight Saving Time
	Remote Administration	Network Remote Upgrade, Parameter Settings, and Configuration Import and Export
	Smart Analysis	human & Vehicle Detection
	General Functions	Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.
General	Housing	Metal & Plastic
	Color	White & Black
	Operating Power	PoE (802.3af), Max.  6W
	Operating Temperature	-22 °F – 140 °F/-30 °C – 60 °C
	Indoor/Outdoor Use	Indoor/Outdoor
	Interface Protection	IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.
	Dimension (L X W X H)	6.45" X 2.6" X 2.6"/ 164 X 66 X 66mm
	Weight	0.53 lb./242g
