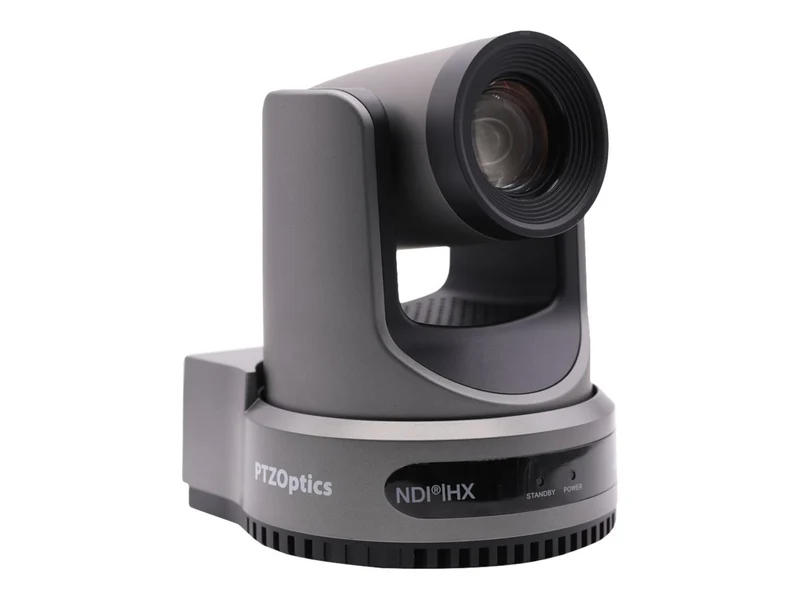

Cámara de Seguridad PTZOptics Move 4K 30x PTZ Camera

Sobre este producto

• 🎥 Cámara PTZ 4K a 60 fps PTZOptics Move que protege tu inversión tecnológica a futuro
• 🔭 Zoom óptico 30x con campo de visión horizontal de 59.2 grados
• 🎯 Auto-tracking integrado para un flujo de producción de video más inteligente
• 💡 Tally light integrado y reducción de ruido 3D (3D Noise Reduction)
• 🔌 Salidas SDI, HDMI, USB e IP con soporte nativo NDI|HX y PoE+
• 🗜️ Compresión H.264, H.265 y MJPEG al transmitir por IP

Característica	Detalle
Marca	PTZOptics
Línea de producto	PTZOptics Move 4K
Fabricante	PTZOptics
Host Interface	USB 2.0
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	RTMP, RTSP, SRT
Connectivity Technology	Wired
Ports	3G-SDI - BNC, Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, HDMI, LAN - RJ-45, Serial RS-232 input - 8 pin mini-DIN, Serial RS-232 output - 8 pin mini-DIN, Serial RS-485 - 2 pin Phoenix, USB 2.0 - 4 pin USB Type A
Image Sensor Size	1/1.8"
Image Sensor Type	CMOS
Tilt	-30 to +90
Touchscreen	No
Audio Support	Yes
Camera Mechanical Design	Pan / tilt / zoom
Control Interface	RS-232, RS-485, VISCA
Digital Video Capture Resolution	1280 x 720, 1920 x 1080, 256 x 144, 3840 x 2160, 480 x 270, 960 x 540
Digital Zoom	16
Max Frame Rate	60 frames per second
Max Panning Speed (degree/sec)	100
Max Tilting Speed (degree/sec)	69.9
Max Video Resolution	3840 x 2160
Panning Range (degree)	-170 to +170
Shutter Speed (Max)	1/10000 second (time unit)
Shutter Speed (Min)	1/30 second (time unit)
Video Modes	1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 2160/25p, 2160/29.97p, 2160/30p, 2160/50p, 2160/59.94p, 2160/60p, 720/59.94p, 720/60p
Video Signals	3G-SDI, HDMI, NDI|HX
Camera Type	Network broadcast camera
Low Voltage Power	DC 12 V / PoE Plus
Tipo de fuente	Power adapter
Angular Field of View (H, Max, Degree)	59.2
Angular Field of View (H, Min, Degree)	2.5
Angular Field of View (V, Max, Degree)	34.6
Angular Field of View (V, Min, Degree)	1.4
Power Device Form Factor	External
Focal Length Control	Motorized zoom
Indoor/Outdoor	Indoor
Lens Aperture	F/1.61-5.19
Max Focal Length	210 millimetre
Temp. máx. de operación	104 degree Fahrenheit
Min Focal Length	7.1 millimetre
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0.5 lux F1.8 - AGC on
Operating System Required	Apple iOS, Apple MacOS, Linux, Windows
Optical Zoom	30
Sensor Size (metric)	14.1 mm (1/1.8")
Total Pixels	8,420,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	255 preset positions, 3D Noise Reduction Technology, Auto tracking, Image flip, Image freeze, Image mirror, NDI|HX3 technology, PELCO D protocol support, PELCO P protocol support, Photobooth mode, Tally light, Wide Dynamic Range (WDR)
Cantidad por empaque	1
Cables	1 x RS-232 cable - external, 1 x USB cable - external
Accesorios incluidos	2 AA batteries, Remote control
Alto	9 inch
Weight	4.41 lbs
Ancho	6.7 inch
Profundidad	7.1 inch
Color	Gray
Color	Gray
Estándares	IEEE 802.3at
