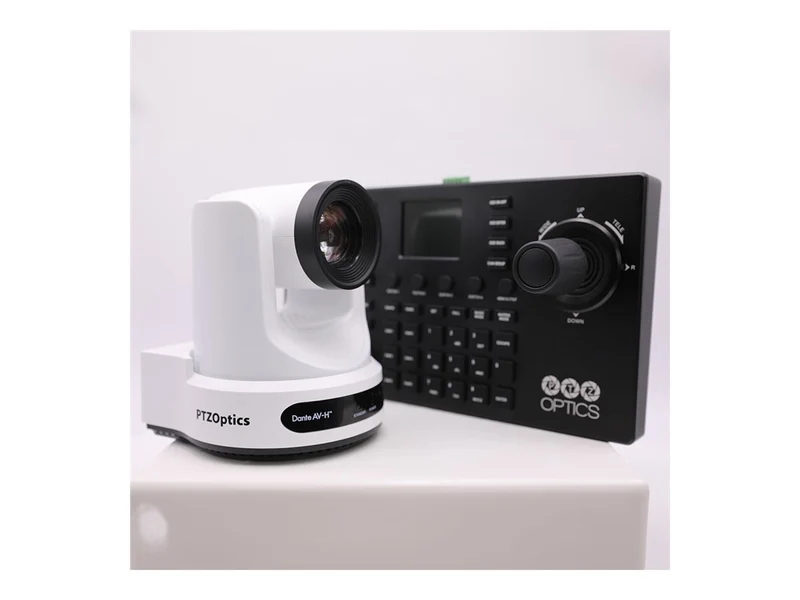

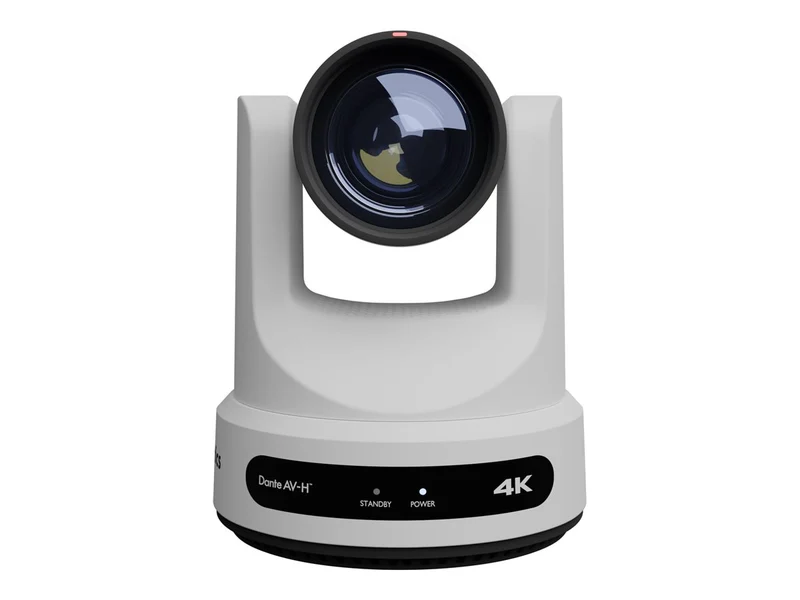

Cámara de Seguridad PTZOptics Link PT30X-LINK-4K

Sobre este producto

• 🎥 Cámara PTZ 4K con resolución 3840 x 2160 y 8.42 MP para calidad broadcast.
• 📡 Dante AV-H con capacidad de auto-tracking para integración sencilla en flujos Dante.
• 🔊 Soporte de audio con conexión GbE.
• 🎬 Lente motorizado ideal para instalaciones de producción de video profesional.
• 🏠 Diseño para interior (indoor) con descubrimiento y configuración simplificados vía Dante.

Característica	Detalle
Marca	PTZOptics
Línea de producto	PTZOptics Link
Modelo	PT30X-LINK-4K
Fabricante	PTZOptics
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	RTMP, RTMPS, RTSP, SRT
Connectivity Technology	Wired
Ports	3G-SDI - BNC, Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, HDMI, LAN/power - RJ-45, Serial RS-232 input - 8 pin mini-DIN, Serial RS-232 output - 8 pin mini-DIN, Serial RS-485 - 2 pin Phoenix, USB 2.0 - 4 pin USB Type A
Image Sensor Size	1/1.8"
Image Sensor Type	CMOS
Tilt	-30 to +90
Touchscreen	No
Audio Support	Yes
Camera Mechanical Design	Pan / tilt / zoom
Control Interface	RS-232 (VISCA), RS-485
Digital Video Capture Resolution	1280 x 720, 1920 x 1080, 3840 x 2160
Max Frame Rate	60 frames per second
Max Panning Speed (degree/sec)	100
Max Tilting Speed (degree/sec)	69.9
Max Video Resolution	3840 x 2160
Panning Range (degree)	-170 to +170
Shutter Speed (Max)	1/10000 second (time unit)
Shutter Speed (Min)	1/30 second (time unit)
Video Modes	1080/25p, 1080/29.97PsF, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 2160/25p, 2160/29.97p, 2160/30p, 2160/50p, 2160/59.94p, 2160/60p, 720/59.94p, 720/60p
Video Signals	3G-SDI, HDMI
Camera Mount Type	Ceiling mount, Pole mount, Wall mount
Camera Type	Conference camera
Low Voltage Power	DC 12 V / PoE Plus
Tipo de fuente	Power adapter
Angular Field of View (H, Max, Degree)	59.2
Angular Field of View (H, Min, Degree)	2.5
Angular Field of View (V, Max, Degree)	34.6
Angular Field of View (V, Min, Degree)	1.4
Focal Length Control	Motorized zoom
Indoor/Outdoor	Indoor
Lens Aperture	F/1.61-5.19
Max Focal Length	210 millimetre
Temp. máx. de operación	104 degree Fahrenheit
Min Focal Length	7.1 millimetre
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0.5 lux F1.8 - AGC on
Optical Zoom	30
Sensor Size (metric)	14.1 mm (1/1.8")
Total Pixels	8,420,000 pixels
Video Input	Color
Características	255 preset positions, 3D Noise Reduction Technology, Aluminum housing, Auto tracking, Dante AV-H, Image flip, Image freeze, Image mirror, PELCO D protocol support, PELCO P protocol support, Plastic housing, Tally light, Wide Dynamic Range (WDR)
Cantidad por empaque	1
Cables	1 x RS-232C cable - external, 1 x USB-A cable - external
Accesorios incluidos	2 AA batteries, Remote control
Alto	9 inch
Weight	4.41 lbs
Ancho	6.7 inch
Profundidad	7.1 inch
Color	White
Color	White
Estándares	IEEE 802.3at
