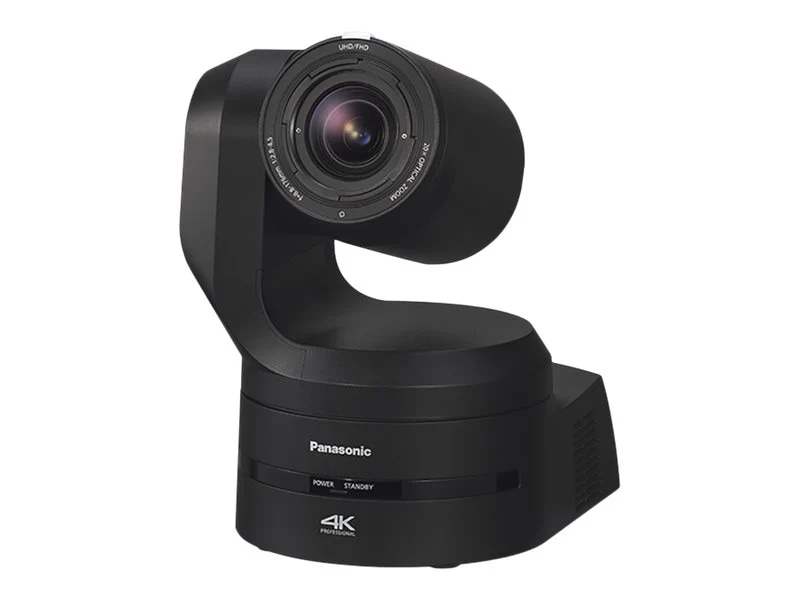

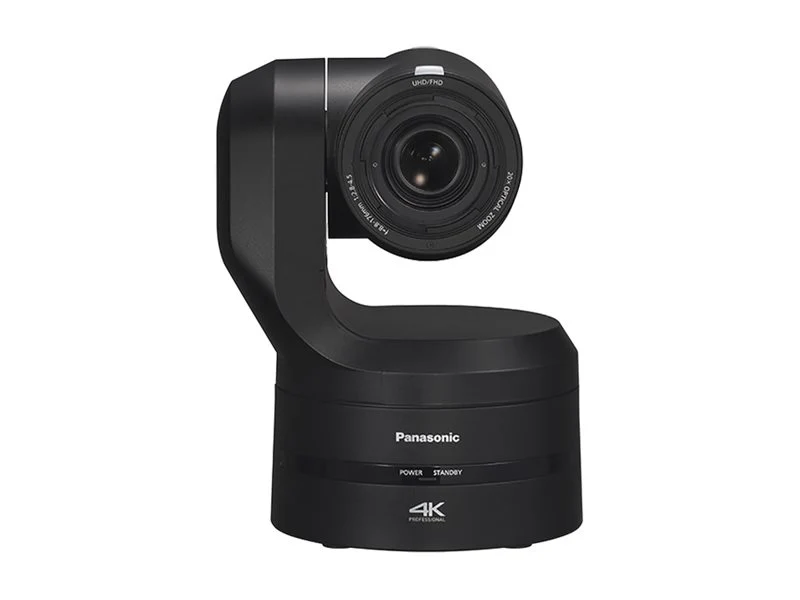

Cámara de Seguridad Panasonic AW-UE160, AW-UE160KPJ

Sobre este producto

• 📷 Alta sensibilidad F14/2000 lx, equivalente a una cámara de estudio
• 🎯 Autofoco por detección de fase (PDAF): enfoque de alta velocidad en sujetos en movimiento
• 🖼️ 9.6 MP con resolución 4K (3840 x 2160)
• 🔧 Mecanismo PTZ motorizado de alta precisión en un cuerpo compacto
• 🎥 Compresión MJPEG, H.264 y H.265 con audio y conexión LAN
• 🌙 Color día y noche (Day&Night) con nuevo motor de procesamiento y reducción de ruido

Característica	Detalle
Marca	Panasonic
Línea de producto	Panasonic
Modelo	AW-UE160
Fabricante	Panasonic Industrial
Host Interface	USB
Network Interface	LAN
Protocols	ARP, DHCP, DNS, GARP, HTTP, HTTPS, ICMP, IPv4, IPv6, MDNS, MLD, NDI HX2, NTP, SNMP, TCP/IP, UDP/IP
Connectivity Technology	Wired

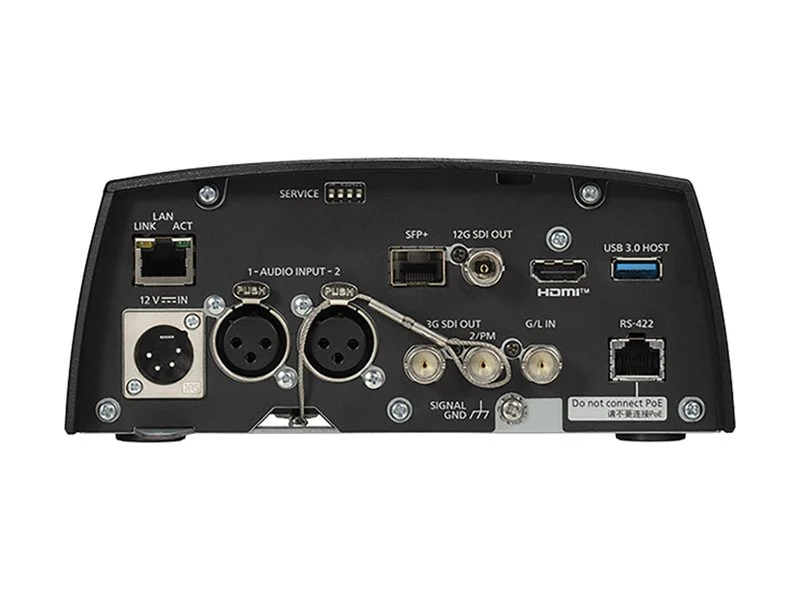

Ports	12G-SDI - BNC, 2 x 3G-SDI output - BNC, 2 x audio line in - 3 pin XLR, Fibre Channel - SFP+, G/L input - BNC, HDMI output, LAN/power - RJ-45, Serial RS-422 - RJ-45, USB 3.0 - 9 pin USB Type A
Image Sensor Size	1"
Image Sensor Type	MOS
Tilt	-30 to +210
Touchscreen	No
Audio Formats	AAC-LC
Audio Support	Yes
Camera Mechanical Design	Pan / tilt / zoom
Control Interface	RS-422A
Digital Video Capture Resolution	1280 x 720, 1920 x 1080, 3840 x 2160, 640 x 360
Digital Zoom	32
Horizontal Resolution (TV Lines)	1600
Max Frame Rate	120 frames per second
Max Panning Speed (degree/sec)	180
Max Tilting Speed (degree/sec)	180
Max Video Resolution	3840 x 2160
Panning Range (degree)	-175 to +175
Recording Formats	JPEG
Shutter Speed (Max)	1/2000 second (time unit)
Shutter Speed (Min)	1/48 second (time unit)
Video Modes	1080/100p, 1080/120p, 1080/23.98p, 1080/24p, 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60p, 2160/23.98p, 2160/24p, 2160/25p, 2160/29.97p, 2160/50p, 2160/59.94p, 2160/60p, 720/50p, 720/59.9p
Video Signals	12G-SDI, 3G-SDI, HDMI
Camera Mount Type	Ceiling mount, Surface mount
Camera Type	Conference camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Plus
Angular Field of View (D, Max, Degree)	82.8
Angular Field of View (D, Min, Degree)	4.6
Angular Field of View (H, Max, Degree)	75.1
Angular Field of View (H, Min, Degree)	4
Angular Field of View (V, Max, Degree)	46.7
Angular Field of View (V, Min, Degree)	2.3
Focal Length Control	Motorized zoom
Focus Modes	Automatic, Manual
Lens Aperture	F/2.8-4.5
Max Focal Length	176 millimetre
Temp. máx. de operación	104 degree Fahrenheit
Min Focal Length	8.8 millimetre
Min Focus Distance	3.9 inch
Temp. mín. de operación	32 degree Fahrenheit
Humedad de operación	20 - 90% (non-condensing)
Operating System Required	Android, Apple iOS, Apple macOS 10.13, Apple macOS 10.14, Apple macOS 10.15, Google Chrome OS, Windows 10
Optical Zoom	20
Sensor Size (metric)	15.86 mm (1")
Total Pixels	9,620,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	BT.2020 compatible, BT.709 compatible, Constant Bit Rate (CBR), Crop Zoom, Cropping function, FreeD protocol support, Gain Control, Gamma control, Image stabilizer, Multicast Streaming, Privacy mode, Tally light, Unicast Streaming, Variable Bit Rate (VBR), White balance
Cantidad por empaque	1
Alto	9.4 inch
Weight	10.14 lbs
Ancho	8.4 inch
Profundidad	10.9 inch
Color	Black
Color	Black
Estándares	IEEE 802.3bt
