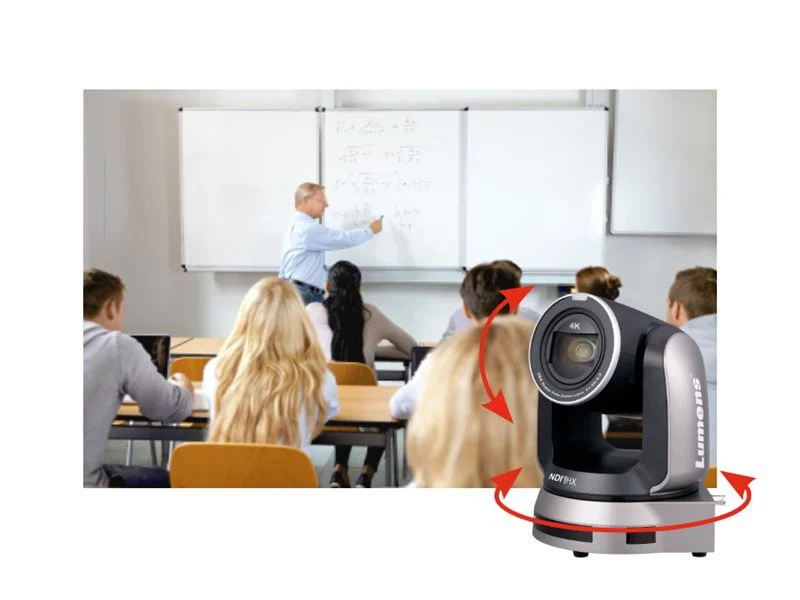

Cámara de Seguridad Lumens VC-A71SN

Sobre este producto

• 🔎 Zoom óptico 30x con cámara PTZ (Pan/Tilt/Zoom) 4K.
• 🎥 Resolución 4096 x 2160 con 9.17 MP para imágenes de máxima definición.
• 📡 Tecnología 4K NDI IHX3 para producción de video profesional.
• 🔊 Soporte de audio con conexión LAN y códecs HEVC, H.264, MJPEG y MPEG-TS.
• ✅ TAA Compliant, en color negro.

Característica	Detalle
Marca	Lumens
Línea de producto	Lumens
Modelo	VC-A71SN
Fabricante	LUMENS
Host Interface	USB 3.0
Network Interface	LAN
Protocols	NDI, RTMP, RTMPS, RTSP, SRT
Connectivity Technology	Wired

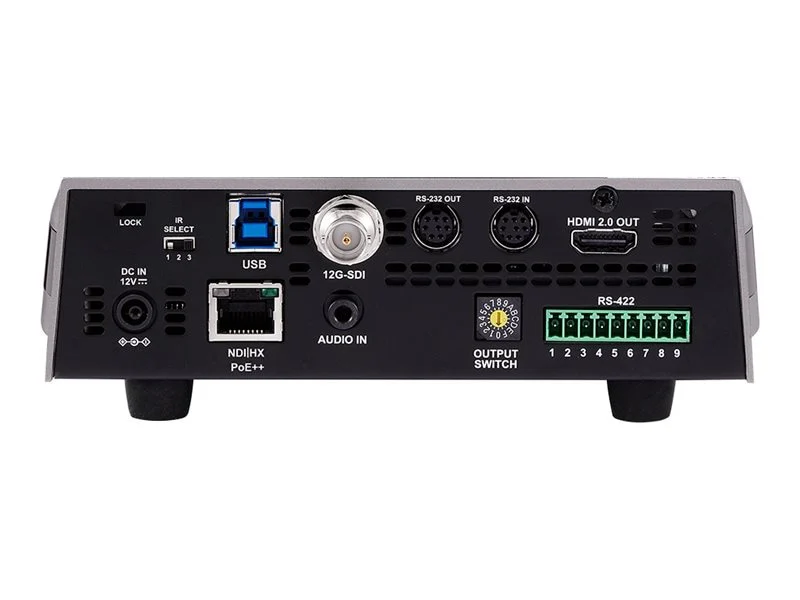

Ports	12G-SDI, Audio line in - 3.5 mm jack, HDMI output, LAN, Serial RS-232 input, Serial RS-232 output, Serial RS-422 - terminal block, USB 3.0 - 9 pin USB Type B
Image Sensor Size	1/1.8"
Image Sensor Type	CMOS
Tilt	-30 to +90
Touchscreen	No
Audio Formats	G.711
Audio Support	Yes
Camera Mechanical Design	Pan / tilt / zoom
Control Interface	RS-232, RS-422, VISCA
Digital Zoom	12
Max Frame Rate	59.94 frames per second
Max Panning Speed (degree/sec)	300
Max Tilting Speed (degree/sec)	300
Max Video Resolution	4096 x 2160
Panning Range (degree)	-170 to +170
Shutter Speed (Max)	1/10000 second (time unit)
Shutter Speed (Min)	1/1 second (time unit)
Video Modes	1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.54p, 1080/59.94i, 2160/25p, 2160/29.97p, 2160/50p, 2160/59.94p, 720/50p, 720/59.94p
Video Signals	12G-SDI, HDMI
Camera Type	Conference camera
Low Voltage Power	DC 12 V / PoE ++
Power Consumption Operational	27 watt
Tipo de fuente	Power adapter
Angular Field of View (D, Max, Degree)	72.3
Angular Field of View (D, Min, Degree)	4.2
Angular Field of View (H, Max, Degree)	63
Angular Field of View (H, Min, Degree)	3.7
Angular Field of View (V, Max, Degree)	35.4
Angular Field of View (V, Min, Degree)	2.1
Focus Modes	Automatic, Manual
Lens Aperture	F/1.6-4.8
Max Focal Length	202 millimetre
Min Focal Length	6.5 millimetre
Min Focus Distance	5 ft
Minimum Illumination	0.05 lux F1.6 - 50 IRE
Optical Zoom	30
Sensor Size (metric)	14.1 mm (1/1.8")
Total Pixels	9,170,000 pixels
Video Formats	H.264, HEVC, MJPEG, MPEG-TS
Video Input	Color
Características	256 preset positions, 3D digital noise reduction (DNR), Auto gain control, Auto white balance, FreeD protocol support, Image flip, Manual gain control, Manual white balance, NDI|HX3 technology, PELCO D protocol support, PoE++ support, Tally light, VISCAIP protocol support, Webcam Support (UVC), Wide Dynamic Range (WDR)
Cantidad por empaque	1
Security Slot Type	Kensington security slot
Theft Protection	Security lock slot (cable lock sold separately)
Alto	7.4 inch
Weight	6.61 lbs
Ancho	9.1 inch
Profundidad	7.4 inch
Color	Black
Color	Black
Estándares	BT.2020 Colorimetry, IEEE 802.3bt
TAA Compliant	Yes
