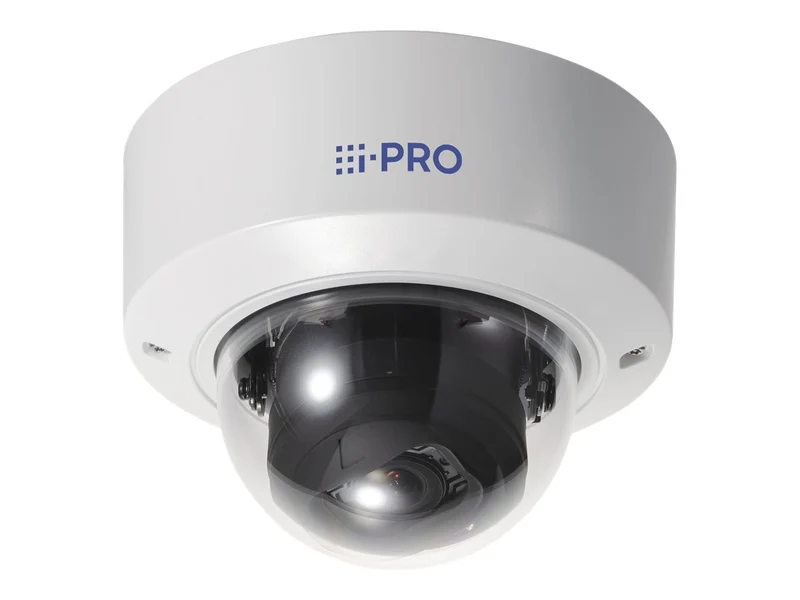

Cámara de Seguridad i-PRO X-Series WV-X22500-V3L

Sobre este producto

• 📹 Cámara dome de red 5MP con sensor 1/2.8" hasta 3072 x 1728
• 🔍 Zoom motorizado para ajustar el campo de visión
• 🔐 Certificación FIPS 140-2 Level 3 y arranque seguro (secure boot)
• 🧠 Analíticas por IA
• 💾 Soporte microSD y múltiples protocolos de red
• 🔌 Alimentación DC 12V / PoE Plus; resistente al vandalismo

Característica	Detalle
Marca	i-Pro
Línea de producto	i-PRO X-Series
Modelo	WV-X22500-V3L
Fabricante	i-PRO Americas
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, DDNS, DHCPv6, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line in - 3.5 mm stereo jack, Audio line out - 3.5 mm stereo jack, LAN - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	-30 to +85
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 3072 x 1728, 3072 x 2304, 320 x 180, 400 x 300, 640 x 360, 800 x 600
Max Frame Rate	60 frames per second
Max Video Resolution	3072 x 1728
Motion Detection	Yes
Panning Range (degree)	-240 to 120
Recording Formats	JPEG
Shutter Speed (Max)	1/10000 second (time unit)
Shutter Speed (Min)	1/60 second (time unit)
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Plus
Angular Field of View (H, Max, Degree)	105
Angular Field of View (H, Min, Degree)	33
Focal Length Control	Motorized zoom
Focus Modes	Motorized
Factor de forma	Dome
Indoor/Outdoor	Indoor
Infrared Distance	230 ft
Infrared LEDs	Yes
Lens Aperture	F/1.3
Max Focal Length	9 millimetre
Temp. máx. de operación	122 degree Fahrenheit
Min Focal Length	2.9 millimetre
Min Focus Distance	1 ft
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - IR - F1.3 - 50 IRE - shutter 1/30 sec, 0.02 lux - B&W - F1.3 - 50 IRE - shutter 1/30 sec, 0.03 lux - color - F1.3 - 30 IRE - shutter 1/30 sec, 0.04 lux - color - F1.3 - 50 IRE - shutter 1/30 sec
Humedad de operación	10 - 90% (non-condensing)
Operating System Required	Android, Apple iOS 8.0 or higher
Optical Zoom	3.1
Protection	Vandal-resistant
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	5,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	3
Alarm Output Quantity	1
Características	18.9m observe distance (wide), 180° image rotation, 20.7m identify distance (tele), 207.4m detect distance (tele), 270° image rotation, 4.7m identify distance (wide), 41.5m recognize distance (tele), 47.1m detect distance (wide), 8 privacy zones, 83m observe distance (tele), 9.4m recognize distance (wide), 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI face detection, AI non mask detection, AI occupancy detection, AI on-site learning, AI processing relay, AI Sound Classification, AI vehicle detection, Alteration detection, Ambarella CV25 SoC, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Constant Bit Rate (CBR), Device Certificate GlobalSign pre-installed, Digest authentication, Digital Noise Reduction, Edge AI, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Image stabilizer, Intelligent Auto (iA), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Scene Change Detection, Secure Boot, Signed firmware, Super Dynamic technology, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS)
Cantidad por empaque	1
Alto	4 inch
Weight	28.92 ounce
Ancho	5.1 inch
Profundidad	5.1 inch
Color	White
Color	White
Estándares	CSA C22.2 No. 62368-1, EN 55032 Class A, EN 55035, FCC Part 15 A, FIPS 140-2 Level 3, ICES-003 Class A, IEC 62262 IK10, IEC 62368-1, IEEE 802.1x, IEEE 802.3at, NDAA, UL 62368-1
