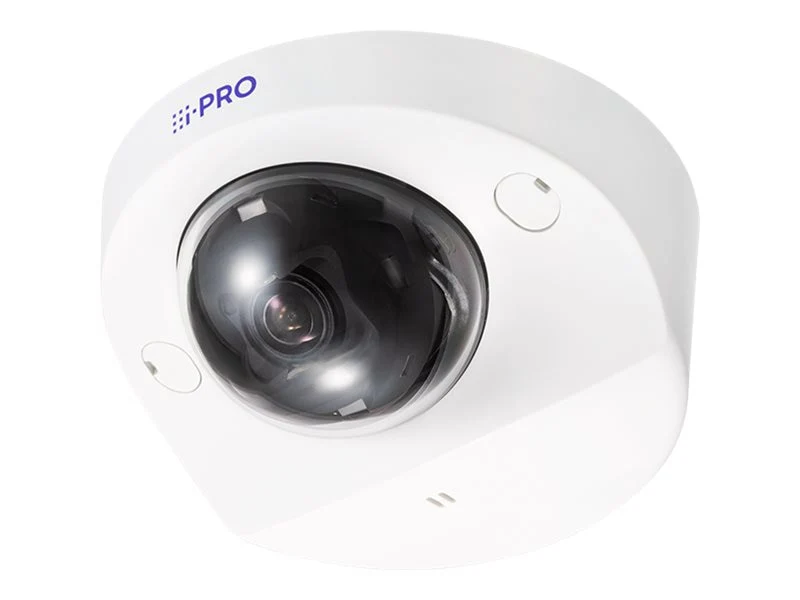

Cámara de Seguridad i-PRO WV-U31401-F2L

Sobre este producto

• 📹 Cámara dome de red 4MP (4,000,000 px) a 2560 x 1440
• 🔍 Lente fijo 2.4mm con ángulo de 123-128° H; enfoque mínimo 0.7 cm
• 🌙 Infrarrojo para visibilidad con mínimo 0 lux
• 🎙️ Micrófono integrado, detección de movimiento y analíticas por IA
• 🌡️ Opera de 0°C a 40°C; consumo de solo 5.3 W
• 🌐 Soporte TCP/IP y HTTPS; compresión H.264/H.265

Característica	Detalle
Marca	i-Pro
Línea de producto	i-PRO
Modelo	WV-U31401-F2L
Fabricante	Panasonic Industrial
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, DDNS, DHCP, DHCPv6, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	LAN/power - RJ-45
Image Sensor Size	1/2.7"
Image Sensor Type	CMOS
Tilt	0 to 90
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726
Audio Support	Yes
Audio Support Features	Built-in microphone
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2048 x 1536, 2560 x 1440, 2688 x 1520, 320 x 180, 640 x 360
Max Frame Rate	60 frames per second
Max Video Resolution	2560 x 1440
Motion Detection	Yes
Panning Range (degree)	-45 to +45
Recording Formats	JPEG
Shutter Speed (Max)	1/10000 second (time unit)
Shutter Speed (Min)	16/30 second (time unit)
Video Capture	2048 x 1536 @ 15 fps, 2560 x 1440 @ 25/30 fps
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 48 V / PoE
Power Consumption Operational	5.3 watt
Rated Current	110 milliampere
Angular Field of View (H, Max, Degree)	128
Angular Field of View (H, Min, Degree)	123
Angular Field of View (V, Max, Degree)	92
Angular Field of View (V, Min, Degree)	71
Focal Length Control	Fixed focal
Factor de forma	Dome
Indoor/Outdoor	Indoor
Infrared Distance	46 ft
Infrared LEDs	Yes
Lens Aperture	F/2.1
Temp. máx. de operación	104 degree Fahrenheit
Min Focal Length	2.4 millimetre
Min Focus Distance	0.3 inch
Temp. mín. de operación	32 degree Fahrenheit
Minimum Illumination	0 lux - IR - F2.1 - 50 IRE - shutter 1/30 sec, 0.0088 lux - B&W - F2.1 - 50 IRE - shutter 16/30 sec, 0.0213 lux - color - F2.1 - 50 IRE - shutter 16/30 sec, 0.14 lux - B&W - F2.1 - 50 IRE - shutter 1/30 sec, 0.24 lux - color - F2.1 - 30 IRE - shutter 1/30 sec, 0.34 lux - color - F2.1 - 50 IRE - shutter 1/30 sec
Humedad de operación	10 - 90% (non-condensing)
Sensor Size (metric)	9.4 mm (1/2.7")
Total Pixels	4,000,000 pixels
Video Formats	H.264, H.265
Video Input	Color
Características	10.5m observe distance, 2.6m identify distance, 26.2m detect distance, 5.2m recognize distance, Adaptive Black Stretch (ABS), AI Analytics, Ambarella CV25M CPU, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Digital Noise Reduction, Fog compensation, Highlight Compensation (HLC), ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Zone, Scene Change Detection (SCD), Variable Image Quality on Specified area (VIQS)
Cantidad por empaque	1
Alto	2 inch
Weight	9.88 ounce
Ancho	4.1 inch
Profundidad	4.1 inch
Color	White
Color	White
Estándares	CSA C22.2 No. 62368-1, EN 55032 Class A, EN 55035, FCC Part 15 A, ICES-003 Class A, IEC 62262 IK10, IEC 62368-1, IEEE 802.1x, IEEE 802.3af, NDAA, UL 62368-1
