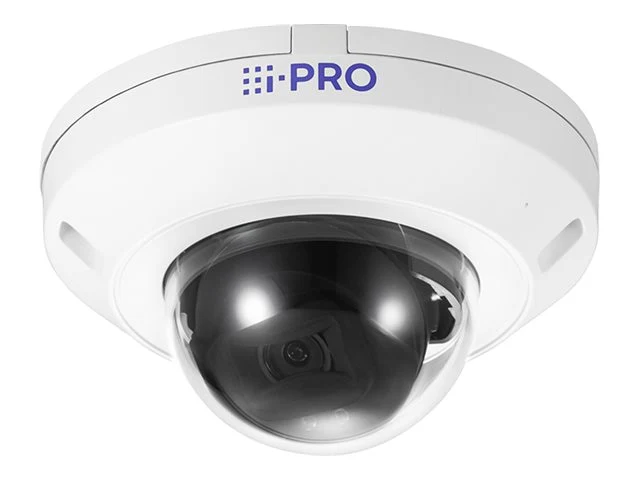

Cámara de Seguridad i-PRO U-Series WV-U22550-F3L

Sobre este producto

• 📹 Cámara dome de red 5MP a 2592 x 1944
• 🔍 Lente fijo 3.2mm con ángulo de 96-97° H
• 🌙 Infrarrojo hasta 28 m para baja luz
• 🎞️ Múltiples flujos de video; soporte de perfiles ONVIF
• 🛡️ Resistente al vandalismo; para interior y exterior
• 🔌 LAN 10/100

Característica	Detalle
Marca	i-Pro
Línea de producto	i-PRO U-Series
Modelo	WV-U22550-F3L
Fabricante	i-PRO Americas
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, DDNS, DHCP, DHCPv6, DiffServ, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out - 3.5 mm stereo jack, Audio line-in/microphone - 3.5 mm stereo jack, LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	-30 to +80
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726
Audio Support	Yes
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 2592 x 1944, 320 x 180, 320 x 240, 400 x 300, 640 x 360, 640 x 480, 800 x 600
Digital Zoom	4
Max Frame Rate	30 frames per second
Max Video Resolution	2592 x 1944
Motion Detection	Yes
Panning Range (degree)	-175 to +175
Shutter Speed (Max)	1/10000 second (time unit)
Shutter Speed (Min)	16/25 second (time unit)
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 48 V / PoE
Power Consumption Operational	9.6 watt
Rated Current	200 milliampere
Angular Field of View (H, Max, Degree)	97
Angular Field of View (H, Min, Degree)	96
Angular Field of View (V, Max, Degree)	71
Angular Field of View (V, Min, Degree)	52
Encryption	FIPS 140-3 Level 3
Focal Length Control	Fixed focal
Factor de forma	Dome
Indoor/Outdoor	Indoor
Infrared Distance	92 ft
Infrared LEDs	Yes
Lens Aperture	F/2.0
Temp. máx. de operación	122 degree Fahrenheit
Min Focal Length	3.2 millimetre
Min Focus Distance	3.3 ft
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec / AGC on / infrared LEDs on, 0.004 lux - B&W - F2.0 - 50 IRE - shutter 16/30 sec / AGC on, 0.01 lux - color - F2.0 - 50 IRE - shutter 16/30 sec, 0.07 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec / AGC on, 0.11 lux - color - F2.0 - 30 IRE - shutter 1/30 sec, 0.16 lux - color - F2.0 - 50 IRE - shutter 1/30 sec
Humedad de operación	10 - 90% (non-condensing)
Protection	Vandal-resistant
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	5,000,000 pixels
Video Input	Color
Características	120 dB dynamic range, 16:9 aspect ratio, 180° image rotation, 270° image rotation, 4 motion detection zones, 4 video streams, 4:3 aspect ratio, 8 privacy zones, 8 VIQS zones, 802.1x authentication, 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI Video Motion Detection (AI-VMD), Alteration detection, Ambarella CV25M CPU, Audio recording, Auto ICR, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Constant Bit Rate (CBR), Device Certificate GlobalSign pre-installed, Die-cast aluminium housing, Digest authentication, Digital Noise Reduction, DORI coverage, Fog compensation, Full duplex audio, Group of Pictures (GOP), Half duplex audio, Highlight Compensation (HLC), Host authentication, Image transmission log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Scene Change Detection (SCD), Signed firmware, Smart Coding Technology, Super Dynamic technology, System log, User authentication, Variable Bit Rate (VBR)
Cantidad por empaque	1
Alto	2.4 inch
Weight	8.82 ounce
Ancho	4.3 inch
Profundidad	4.3 inch
Color	I-PRO White
Color	White
Estándares	CAN/CSA C22.2 No. 62368-1-19, EN 55032 Class A, EN55035, FCC Part15 Subpart B Class B (U.S.A.), ICES-003 issue 7 Class A, IEC 62262 IK10, IEC 62368-1 Third Edition, IEC/EN 60529 IP42, IEEE 802.3af, NDAA, UL 62368-1 Third Edition
