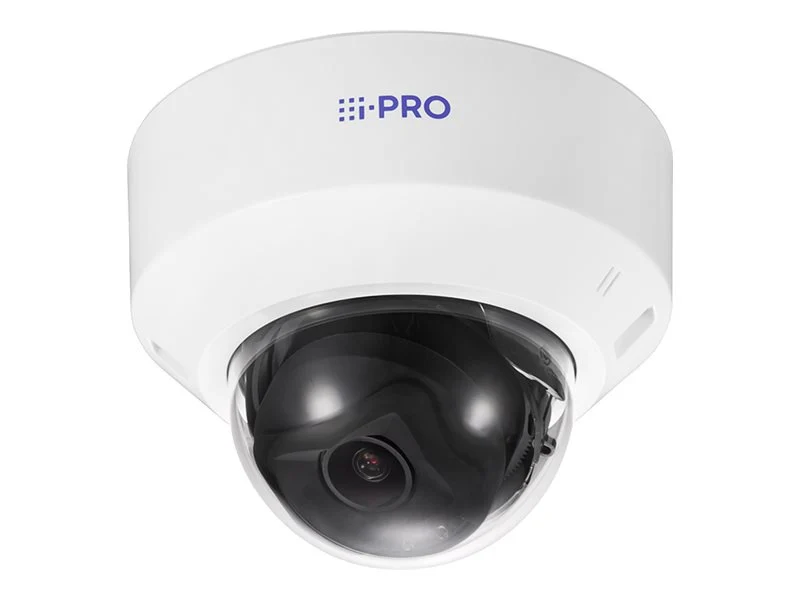

Cámara de Seguridad i-PRO U-Series WV-U21501-V3L

Sobre este producto

• 📹 Sensor de 5MP con resoluciones hasta 2592 x 1944 a 25/30 fps para interior
• 🔍 Lente de zoom motorizado con sensibilidad de hasta 0.003 lux en modo B&N
• 🌙 LEDs infrarrojos con alcance de hasta 28 m para escenas con poca luz
• 🔒 Cumple con FIPS 140-3 Level 3 para operación segura
• 🧠 Detección de movimiento de video inteligente y zonas de privacidad
• 🌡️ Operación en rango amplio de -10°C a 50°C

Característica	Detalle
Marca	i-Pro
Línea de producto	i-PRO U-Series
Modelo	WV-U21501-V3L
Fabricante	i-PRO Americas
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, DDNS, DHCP, DHCPv6, DiffServ, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	-30 to +85
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726
Audio Support	Yes
Camera Mechanical Design	Zoom
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 2592 x 1944, 320 x 180, 320 x 240, 400 x 300, 640 x 360, 640 x 480, 800 x 600
Digital Zoom	12.8
Max Frame Rate	30 frames per second
Max Video Resolution	2592 x 1944
Motion Detection	Yes
Panning Range (degree)	-105 to +255
Recording Formats	JPEG
Shutter Speed (Max)	1/4000 second (time unit)
Shutter Speed (Min)	1/25 second (time unit)
Video Capture	1280 x 720 @ 25/30 fps, 1280 x 960 @ 12.5/15 fps, 1280 x 960 @ 25/30 fps, 1920 x 1080 @ 25/30 fps, 2560 x 1440 @ 25/30 fps, 2560 x 1920 @ 12.5/15 fps, 2560 x 1920 @ 25/30 fps, 2592 x 1944 @ 12.5/15 fps, 2592 x 1944 @ 25/30 fps, 320 x 180 @ 25/30 fps, 320 x 240 @ 12.5/15 fps, 320 x 240 @ 25/30 fps, 400 x 300 @ 12.5/15 fps, 640 x 360 @ 25/30 fps, 640 x 480 @ 12.5/15 fps, 640 x 480 @ 25/30 fps, 800 x 600 @ 12.5/15 fps
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 48 V / PoE
Power Consumption Operational	9.6 watt
Rated Current	200 milliampere
Angular Field of View (H, Max, Degree)	101
Angular Field of View (H, Min, Degree)	28
Angular Field of View (V, Max, Degree)	52
Angular Field of View (V, Min, Degree)	16
Encryption	FIPS 140-3 Level 3
Focal Length Control	Motorized zoom
Focus Modes	Motorized
Factor de forma	Dome
Indoor/Outdoor	Indoor
Infrared Distance	92 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Max Focal Length	10.2 millimetre
Temp. máx. de operación	122 degree Fahrenheit
Min Focal Length	3.2 millimetre
Min Focus Distance	6.6 ft
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec, 0.003 lux - B&W - F1.6 - 50 IRE - shutter 16/30 sec, 0.006 lux - color - F1.6 - 50 IRE - shutter 16/30 sec, 0.04 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec, 0.07 lux - color - F1.6 - 30 IRE - shutter 1/30 sec, 0.1 lux - color - F1.6 - 50 IRE - shutter 1/30 sec
Humedad de operación	10 - 90% (non-condensing)
Operating System Required	Android, Apple iOS 8.0 or higher
Optical Zoom	3.2
Sensor Size (metric)	9.1 mm (1/2.8")
Supported Host Device Platform	Android, iOS
Total Pixels	5,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	270° image rotation, 802.1x authentication, Adaptive Black Stretch (ABS), Alteration detection, Audio Detection, Automatic Gain Control (AGC), Backlight Compensation (BLC), Brute force delay protection, Digest authentication, Fog compensation, Highlight Compensation (HLC), Host authentication, Iintelligent Video Motion Detection (i-VMD), Image transmission log, Privacy Zone, Scene Change Detection (SCD), Secure Boot, Signed firmware, System log, User authentication, Variable Image Quality on Specified area (VIQS), Video Motion Detection (VMD)
Cantidad por empaque	1
Alto	4 inch
Weight	13.4 ounce
Ancho	5.1 inch
Profundidad	5.1 inch
Color	I-PRO White
Color	White
Estándares	CAN/CSA-C22.2 No. 62368-1-19, EN55032 Class A, EN55035, FCC Part 15 B Class A, ICES-003 issue 7 Class A, IEC 62368-1 Third Edition, IEEE 802.1x, IP42, NDAA, UL 62368-1 Third Edition
