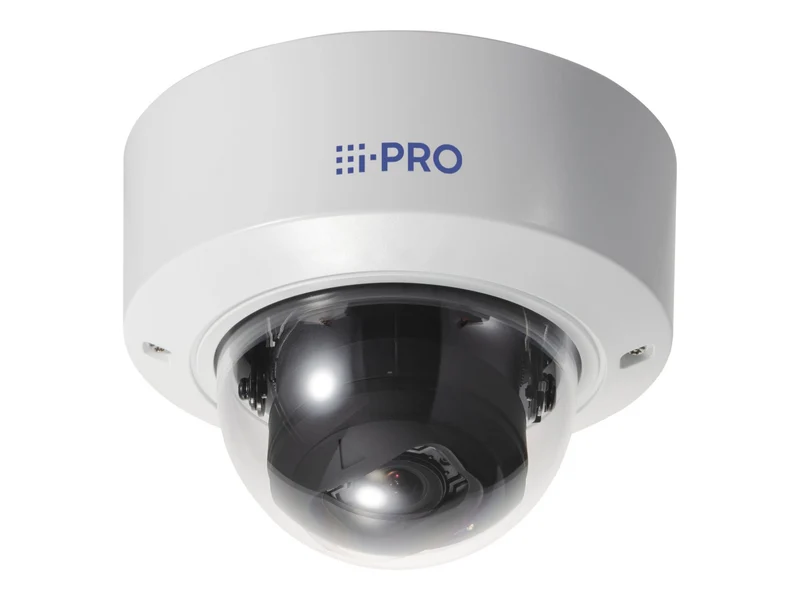

Cámara de Seguridad i-PRO S-Series WV-S22500-V3L

Sobre este producto

• 📹 Cámara dome antivandálica de 5MP para interiores, ideal para captura de evidencia CCTV
• 🌙 IR-LED integrado más Color Night Vision para imagen a color en baja luz y de noche
• 🧠 Intelligent Auto con AI Engine para optimización automática de imagen
• 🚗 Buena lectura de matrículas y rostros dentro de la zona monitoreada
• 🔐 Certificada FIPS 140-2 Level 3 y cumple con la norma NDAA

Característica	Detalle
Marca	i-Pro
Línea de producto	i-PRO S-Series
Modelo	WV-S22500-V3L
Fabricante	i-PRO Americas
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, DDNS, DHCP, DHCPv6, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out - 3.5 mm stereo jack, Audio line-in/microphone - 3.5 mm stereo jack, LAN - RJ-45, Video output
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	-30 to +85
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 3072 x 1728, 3072 x 2304, 320 x 180, 320 x 240, 400 x 300, 640 x 360, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	3072 x 1728
Motion Detection	Yes
Panning Range (degree)	-240 to 120
Recording Formats	JPEG
Shutter Speed (Max)	1/10000 second (time unit)
Shutter Speed (Min)	1/30 second (time unit)
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE
Angular Field of View (H, Max, Degree)	105
Angular Field of View (H, Min, Degree)	33
Angular Field of View (V, Max, Degree)	76
Angular Field of View (V, Min, Degree)	19
Focal Length Control	Motorized zoom
Focus Modes	Automatic
Factor de forma	Dome
Indoor/Outdoor	Indoor
Infrared Distance	131 ft
Infrared LEDs	Yes
Lens Aperture	F/1.3-2.5
Max Focal Length	9 millimetre
Temp. máx. de operación	122 degree Fahrenheit
Min Focal Length	2.9 millimetre
Min Focus Distance	1 ft
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec / infrared LEDs on, 0.003 lux - B&W - F1.5 - 50 IRE - shutter 16/30 sec, 0.004 lux - color - F1.5 - 50 IRE - shutter 16/30 sec, 0.04 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec, 0.05 lux - color - F1.5 - 30 IRE - shutter 1/30 sec, 0.07 lux - color - F1.5 - 50 IRE - shutter 1/30 sec
Humedad de operación	10 - 90% (non-condensing)
Optical Zoom	3.1
Protection	Vandal-resistant
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	5,000,000 pixels
Video Formats	H.264, H.265, MJPEG, NTSC, PAL
Video Input	Color
Alarm Input Quantity	3
Características	180° image rotation, 270° image rotation, 8 privacy zones, 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI Sound Classification, Alteration detection, Ambarella CV22 CPU, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Color Night Vision, Constant Bit Rate (CBR), Device Certificate GlobalSign pre-installed, Digest authentication, Digital Noise Reduction, E-mail alerts, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Host authentication, Image transmission log, Intelligent Auto (iA), Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Scene Change Detection (SCD), Signed firmware, Super Dynamic technology, System log, Unicast Streaming, User authentication, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS)
Cantidad por empaque	1
Alto	4 inch
Weight	28.22 ounce
Ancho	5.1 inch
Profundidad	5.1 inch
Color	White
Color	White
Estándares	CSA C22.2 No. 62368-1, EN 55032 Class A, EN 55035, FCC Part 15 A, FIPS 140-2 Level 3, ICES-003 Class A, IEC 62262 IK10, IEC 62368-1, IEEE 802.1x, IEEE 802.3af, NDAA, UL 62368-1
