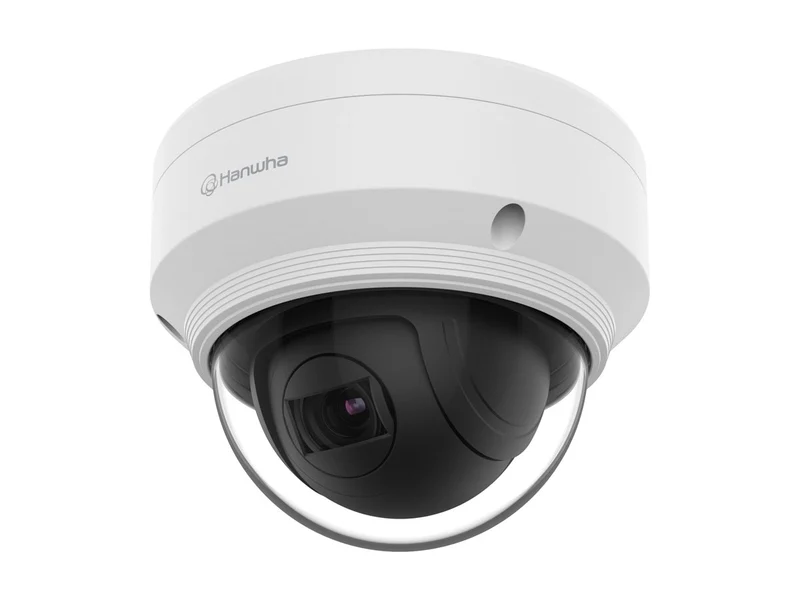

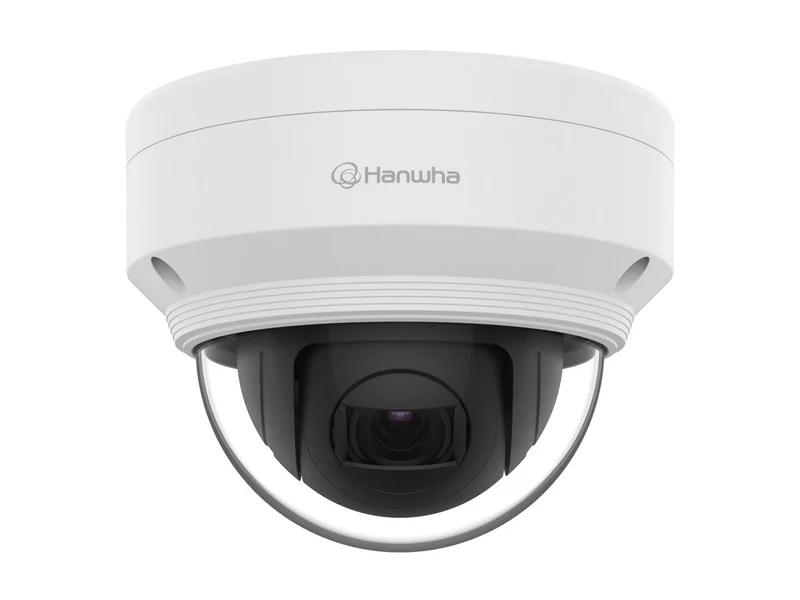

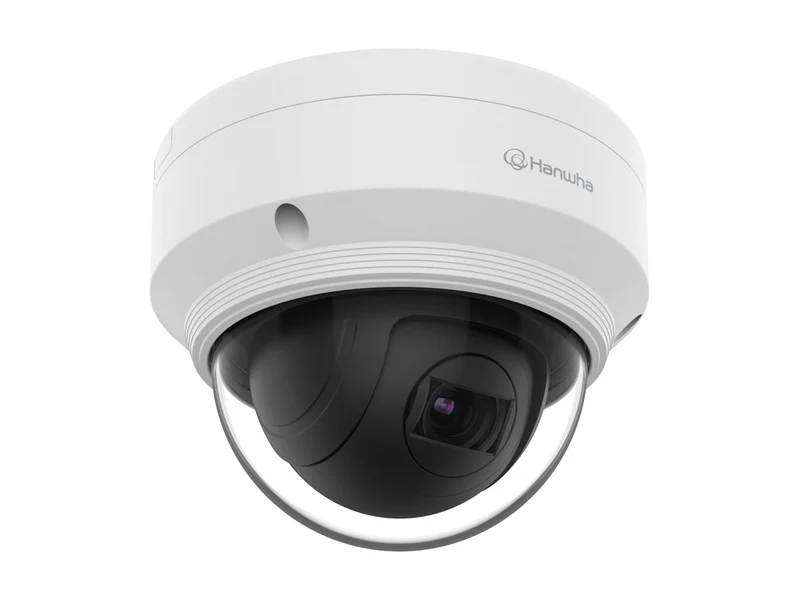

Cámara de Seguridad Hanwha Vision XNP-6040HW

Sobre este producto

• 🔄 Cámara PTZ de 2MP a 1080p con captura de hasta 60 fps a 1920 x 1080
• 🌡️ Opera de -30 °C a 55 °C con humedad de 0 a 90% RH
• 🛡️ Certificación IP66 e IK10 contra agua, polvo e impactos
• 🔊 Audio bidireccional (two-way audio) y función nocturna
• 🔍 Enfoque automático y manual con amplio campo de visión angular
• 🎞️ Smart codecs MJPEG, H.264 y H.265 sobre LAN 10/100

Característica	Detalle
Marca	Hanwha Vision
Línea de producto	Hanwha Vision
Modelo	XNP-6040HW
Fabricante	Hanwha
Flash Memory Installed	256 megabyte
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM instalada	1 GB
Host Interface	USB
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, SUNAPI, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, Composite video, LAN - RJ-45, USB - Micro-USB Type B
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 90
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711 u-law, G.726
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Pan / tilt / zoom
Control Interface	RS-485
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Digital Zoom	24
Max Frame Rate	60 frames per second
Max Panning Speed (degree/sec)	60
Max Tilting Speed (degree/sec)	60
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Capture	1920 x 1080 @ 60 fps
Video Modes	1080p
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE
Power Consumption Operational	9.6 watt
Angular Field of View (D, Max, Degree)	142.1
Angular Field of View (D, Min, Degree)	32
Angular Field of View (H, Max, Degree)	119.5
Angular Field of View (H, Min, Degree)	27.9
Angular Field of View (V, Max, Degree)	62.8
Angular Field of View (V, Min, Degree)	15.7
Auto Iris Control	DC
Camera Iris	Auto iris
Encryption	EAP-LEAP, EAP-TLS
Focus Modes	Automatic, Manual
Lens Aperture	F/1.4
Max Focal Length	12 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	2.8 millimetre
Min Focus Distance	5 ft
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0.0015 lux - B&W - F1.4 - shutter 1/30 sec, 0.015 lux - color - F1.4 - shutter 1/30 sec
Humedad de operación	0 - 90% RH
Optical Zoom	4.3
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	802.1x authentication, Anti-flicker, Appearing / disappearing detection, Audio Detection, Auto tracking, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Built-in gyroscope, Constant Bit Rate (CBR), Defog, Digest authentication, Digital Image Stabilization (DIS), Direction detection, E-mail alerts, Enter area detection, Exit detection, Face Detection, Fog detection, FTP alerts, Gain Control, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Loitering detection, Manual white balance, Motion Detection, Motion Detection Technology, Multicast Streaming, Network disconnection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Sound classification, Tamper-detection, Unicast Streaming, User access log, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	4.2 inch
Weight	27.51 ounce
Ancho	5.4 inch
Profundidad	5.4 inch
Color	RAL 9003, White
Color	White
Estándares	cULus, EAC, FCC, IEEE 802.3af, IK10, IP66, NDAA
