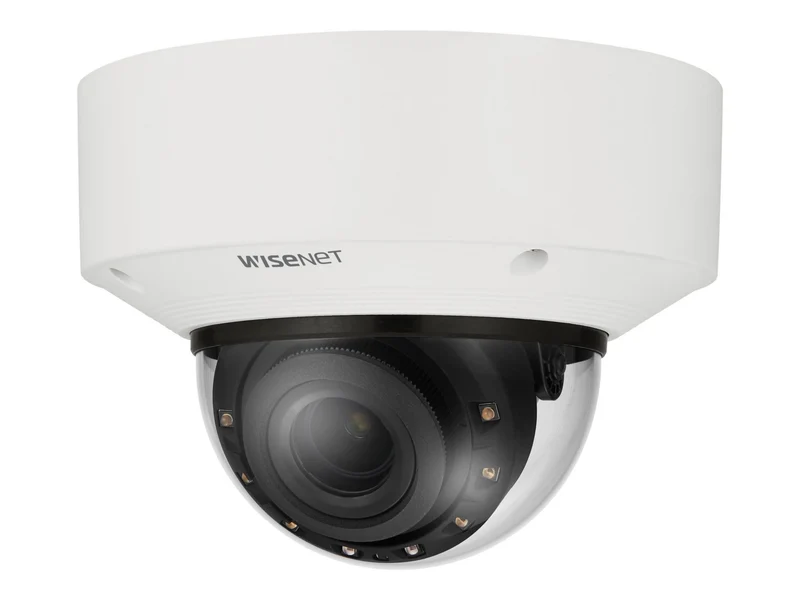

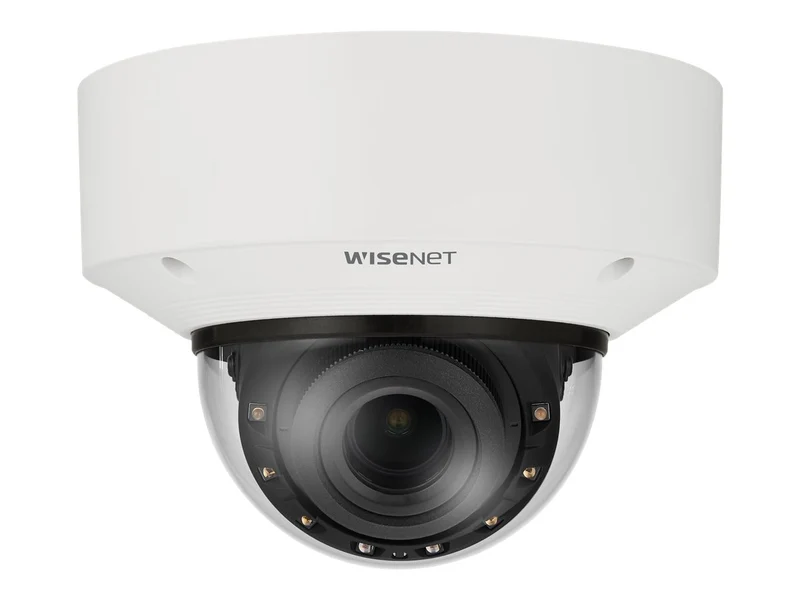

Cámara de Seguridad Hanwha Vision Wisenet X XNV-C9083R

Sobre este producto

• 📹 Cámara de red WiseNet X (modelo XNV-C9083R) en domo para exterior
• 🔍 Zoom motorizado con iris automático para imágenes nítidas en amplio campo de visión
• 🌙 LEDs infrarrojos con visión nocturna de hasta 40 m
• 🧠 Funciones inteligentes: detección de audio, desempañado (defog) y estabilización digital de imagen
• 🛡️ Antivandálica y resistente a agua y polvo para condiciones extremas
• 🔌 Alimentación DC 12V / PoE Class 3 y conexión LAN 10/100

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XNV-C9083R
Fabricante	Hanwha
Flash Memory Installed	512 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	4 GB
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	1/1.8"
Image Sensor Type	CMOS
Tilt	-45 to +75
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Pan / tilt / zoom
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	3840 x 2160
Motion Detection	Yes
Panning Range (degree)	0 to 360
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Signals	USB
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Class 3
Power Consumption Operational	10.8 watt
Angular Field of View (D, Max, Degree)	137.5
Angular Field of View (D, Min, Degree)	54.6
Angular Field of View (H, Max, Degree)	112.1
Angular Field of View (H, Min, Degree)	47.5
Angular Field of View (V, Max, Degree)	58
Angular Field of View (V, Min, Degree)	26.6
Auto Iris Control	P-Iris
Camera Iris	Auto iris
Focal Length Control	Motorized zoom
Focus Modes	Manual
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Infrared Distance	131 ft
Infrared LEDs	Yes
Lens Aperture	F/1.3-2.15
Max Focal Length	9.3 millimetre
Temp. máx. de operación	140 degree Fahrenheit
Min Focal Length	4.4 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.004 lux - B&W - F1.3 - 30 IRE - shutter 1/30 sec, 0.04 lux - color - F1.3 - 30 IRE - shutter 1/30 sec
Humedad de operación	0 - 95% RH
Optical Zoom	2.1
Protection	Vandal-proof
Sensor Size (metric)	14.1 mm (1/1.8")
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	Anti-flicker, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Defocus Detection, Defog, Digest authentication, Digital Image Stabilization (DIS), Direction detection, Entrance / exit detection, Extreme Wide Dynamic Range (E-WDR), Hallway View, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, Intelligent Video Analysis (IVA), Lens Distortion Compensation (LDC), Loitering detection, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Sound classification, Tamper-detection, Trigger recording, Unicast Streaming, User access log, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream II support, WiseStream III support
Cantidad por empaque	1
Alto	4.6 inch
Weight	3.2 lbs
Ancho	6.3 inch
Profundidad	6.3 inch
Color	RAL 9003, White
Color	White
Estándares	IEEE 802.1x, IEEE 802.3af, IK10, IP66, IP67, NEMA Type 4X
