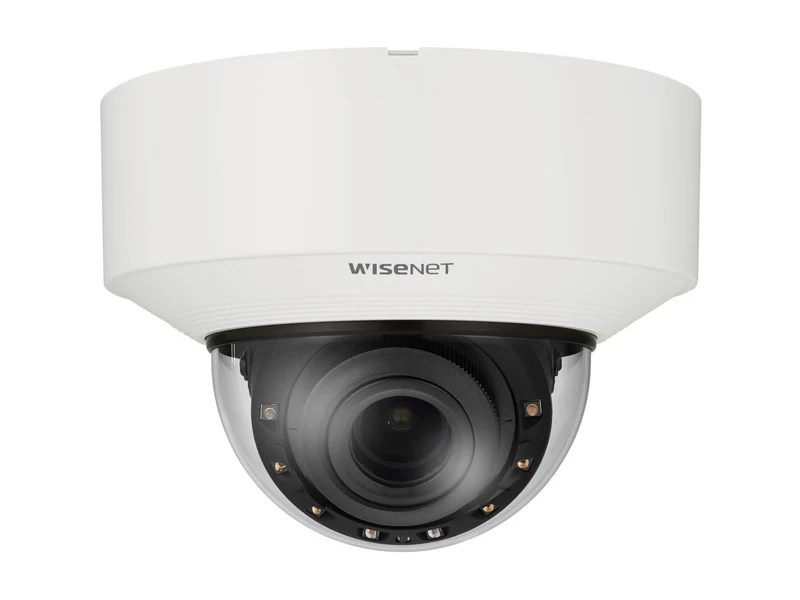

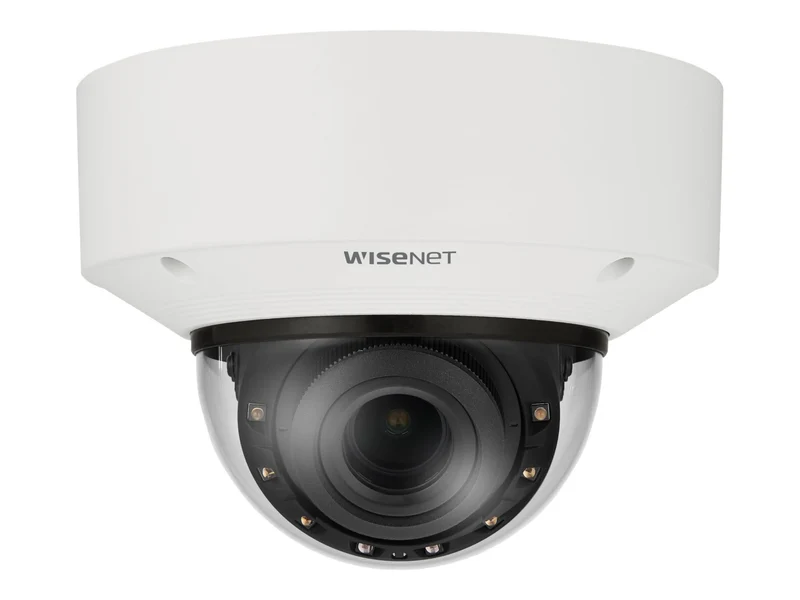

Cámara de Seguridad Hanwha Vision Wisenet X XNV-C7083R

Sobre este producto

• 📹 Cámara dome de 4MP con lente de zoom motorizado y auto iris para exteriores
• 🌙 IR-LED con alcance de 40 m para visibilidad clara en total oscuridad
• 🧠 Analíticas avanzadas: detección de movimiento, intrusión y conteo de personas
• 🛡️ Resistente a polvo, agua, golpes, corrosión y vandalismo
• 🔌 Alimentación DC 12V / PoE Class 3 vía LAN 10/100 con audio integrado
• 🌡️ Opera en condiciones extremas de -40°C a 55°C

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XNV-C7083R
Fabricante	Hanwha
Flash Memory Installed	512 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	2 GB
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	-45 to +75
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.711u, G.726
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2592 x 1520, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	60 frames per second
Max Video Resolution	2592 x 1520
Motion Detection	Yes
Panning Range (degree)	0 to 360
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Signals	USB
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Class 3
Angular Field of View (D, Max, Degree)	131.3
Angular Field of View (D, Min, Degree)	35.3
Angular Field of View (H, Max, Degree)	109.7
Angular Field of View (H, Min, Degree)	30.4
Angular Field of View (V, Max, Degree)	60.8
Angular Field of View (V, Min, Degree)	17.8
Auto Iris Control	DC
Camera Iris	Auto iris
Focal Length Control	Motorized zoom
Focus Modes	Manual
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Infrared Distance	131 ft
Infrared LEDs	Yes
Lens Aperture	F/1.4-3.0
Max Focal Length	10 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	2.8 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.0038 lux - B&W - F1.4 - 30 IRE - shutter 1/30 sec, 0.0076 lux - B&W - F1.4 - 30 IRE - shutter 1/60 sec, 0.038 lux - color - F1.4 - 30 IRE - shutter 1/30 sec, 0.076 lux - color - F1.4 - 30 IRE - shutter 1/60 sec
Humedad de operación	0 - 95% RH (non-condensing)
Optical Zoom	3.6
Protection	Dust resistant / water resistant / shock resistant / corrosion resistant / vandal-proof
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	4,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	Appearing / disappearing detection, Audio Detection, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Direction detection, DORI coverage, Entrance / exit detection, Extreme WDR, Face Detection, Fog detection, Gain Control, Hallway View, Handover, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, Intelligent Video Analysis (IVA), Intrusion detection, IP address filtering, Lens Distortion Compensation (LDC), License plate detection, Loitering detection, Motion Detection Technology, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy Mask Function, Progressive scanning, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Smart Codec, Sound classification, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Video analytics, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream II support, WiseStream III support
Cantidad por empaque	1
Alto	4.6 inch
Weight	3.2 lbs
Ancho	6.3 inch
Profundidad	6.3 inch
Color	RAL 9003, White
Color	White
Estándares	EN 62676-4, IEEE 802.1x, IEEE 802.3af, IK10, IP66, IP67, NEMA Type 4X
