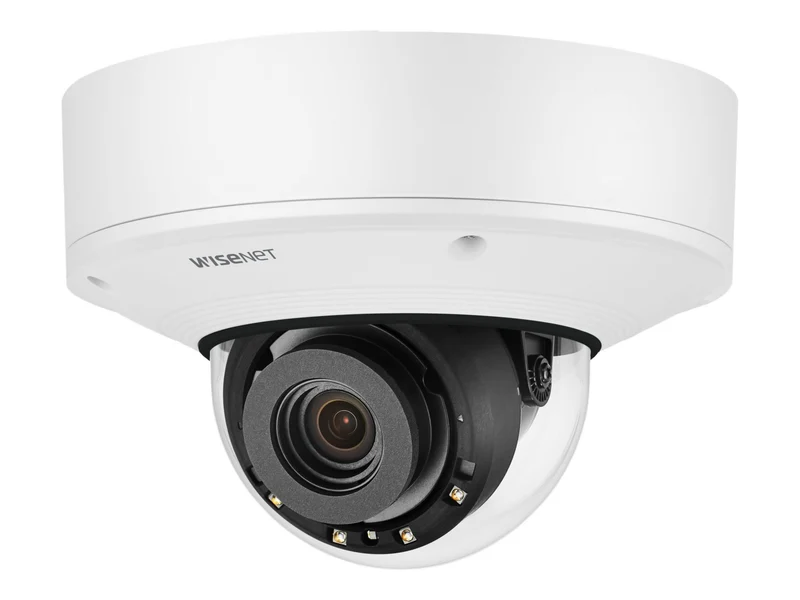

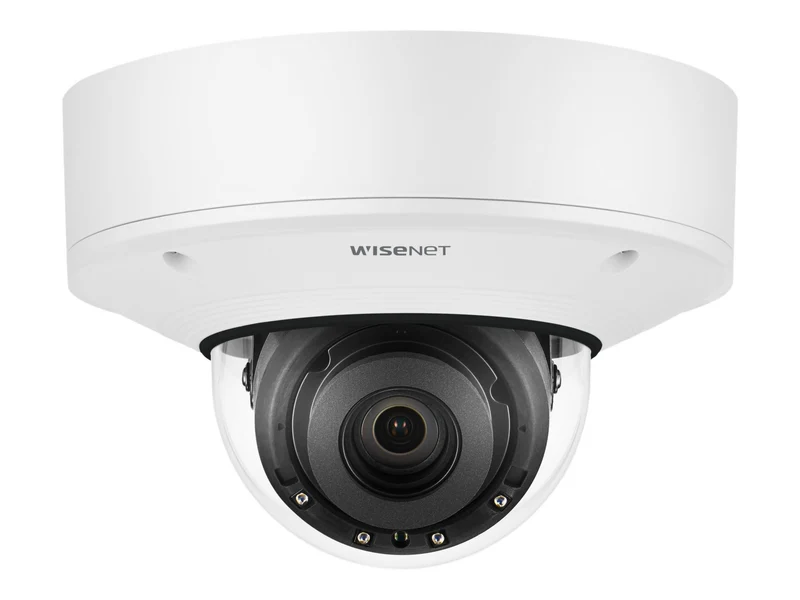

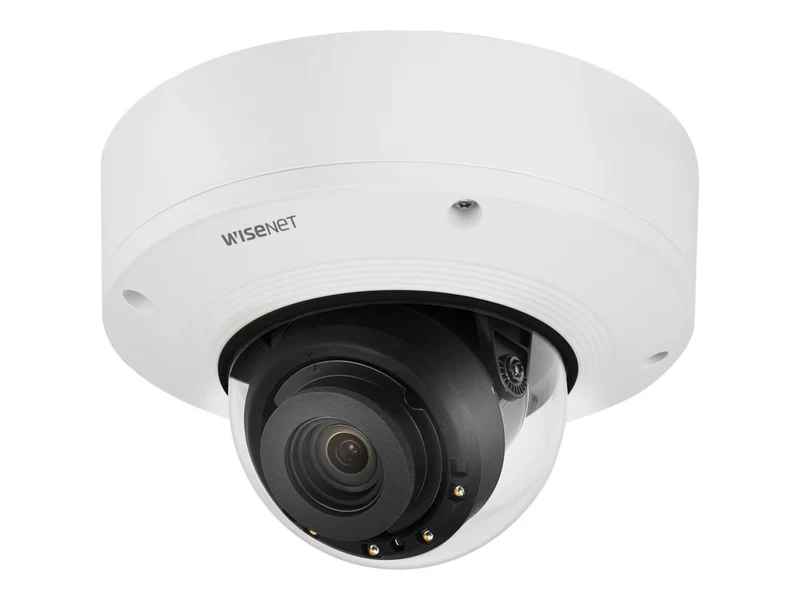

Cámara de Seguridad Hanwha Vision Wisenet X XNV-8082R

Sobre este producto

• 📹 Cámara dome de red 6MP
• 🔍 Zoom motorizado con ángulo de 46.3° a 133° y apertura f/1.2-2.8
• 🌙 LED infrarrojos hasta 40 m en oscuridad total
• 🌡️ Opera de -50°C a 60°C y humedad 0-95%
• 🛡️ Certificación IK10+, IP66, IP67 e IP6K9K
• 🧠 Analíticas: movimiento, sabotaje, merodeo y conteo de personas; audio, GbE, PoE

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XNV-8082R
Fabricante	Hanwha
Flash Memory Installed	512 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	4 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	-45 to +85
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711u, G.726
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	3328 x 1872
Motion Detection	Yes
Panning Range (degree)	0 to 360
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Capture	3328 x 1872 @ 30 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / AC 24 V / PoE
Power Consumption Operational	13.5 watt
Angular Field of View (D, Max, Degree)	133
Angular Field of View (D, Min, Degree)	46.3
Angular Field of View (H, Max, Degree)	114
Angular Field of View (H, Min, Degree)	40.2
Angular Field of View (V, Max, Degree)	62
Angular Field of View (V, Min, Degree)	22.5
Auto Iris Control	DC, P-Iris
Camera Iris	Auto iris
Focal Length Control	Motorized zoom
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Infrared Distance	131 ft
Infrared LEDs	Yes
Lens Aperture	F/1.2-2.8
Max Focal Length	8.4 millimetre
Temp. máx. de operación	140 degree Fahrenheit
Min Focal Length	2.8 millimetre
Min Focus Distance	27.6 inch
Temp. mín. de operación	-58 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.05 lux - color - F1.2 - shutter 1/30 sec
Humedad de operación	0 - 95% (non-condensing)
Optical Zoom	3
Protection	Vandal-proof
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	6,000,000 pixels
Video Formats	H.264, H.265, MJPEG, NTSC, PAL
Video Input	Color
Características	Appearing / disappearing detection, Audio Detection, Backlight Compensation (BLC), Built-in gyroscope, Constant Bit Rate (CBR), Defocus Detection, Defog, Digital auto tracking, Digital Image Stabilization (DIS), Directional Detection, Entrance / exit detection, Fog detection, Gain Control, Hallway View, Handover, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Video analytics, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	4.9 inch
Weight	4.19 lbs
Ancho	7.1 inch
Profundidad	7.1 inch
Color	RAL 9003, White
Color	White
Estándares	IEEE 802.1x, IEEE 802.3af, IK10+, IP66, IP67, IP6K9K, NEMA Type 4X, UL
