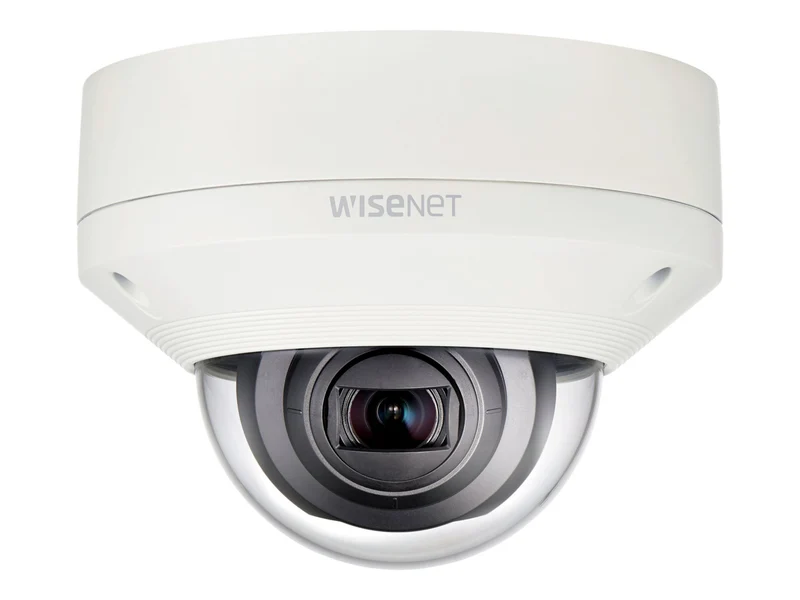

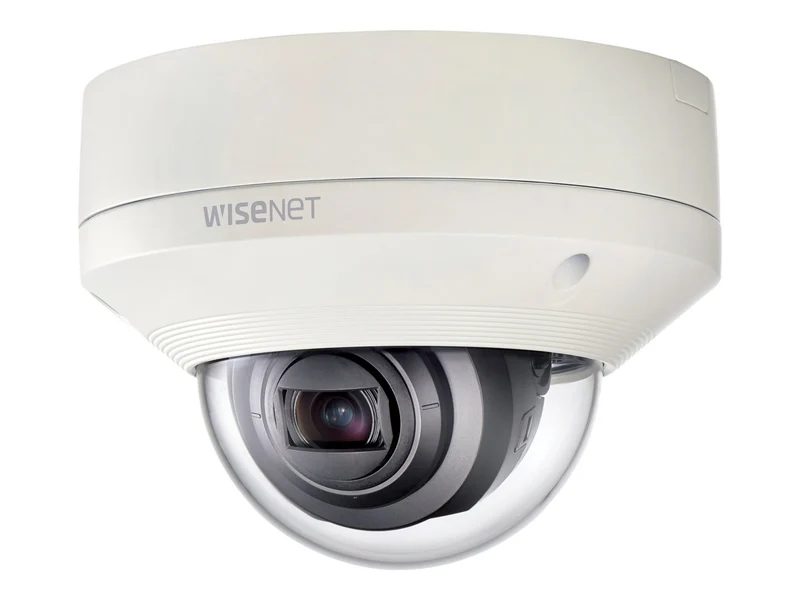

Cámara de Seguridad Hanwha Vision Wisenet X XNV-6080

Sobre este producto

• 🎥 Cámara de red tipo domo para exterior, 2 MP (1920 x 1080) a 60 fps
• 🌡️ Opera de -40 °C a 55 °C con certificaciones IK10, IP66, IP67 y NEMA Type 4X
• 🔎 Lente motorizado con control automático de iris
• 🌙 Wide Dynamic Range y Samsung Super Noise Reduction para buena imagen en cualquier luz
• 🧠 Detección de movimiento y rostro, defog y anti-sabotaje (tamper)
• 🎙️ Audio bidireccional y compresión H.264/H.265/MJPEG

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XNV-6080
Fabricante	Hanwha
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Audio Formats	AAC-LC, G.711, G.726
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Digital Zoom	24
Max Frame Rate	60 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	0 to 354
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Capture	1920 x 1080 @ 60 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / AC 24 V / PoE
Power Consumption Operational	8.2 watt
Angular Field of View (D, Max, Degree)	142.1
Angular Field of View (D, Min, Degree)	32
Angular Field of View (H, Max, Degree)	119.5
Angular Field of View (H, Min, Degree)	27.9
Angular Field of View (V, Max, Degree)	62.8
Angular Field of View (V, Min, Degree)	15.7
Auto Iris Control	DC, P-Iris
Camera Iris	Auto iris
Focal Length Control	Motorized zoom
Focus Modes	Manual, Motorized
Factor de forma	Dome
Infrared LEDs	Yes
Lens Aperture	F/1.4-3.6
Max Focal Length	12 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	2.8 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.015 lux - color - F1.4 - shutter 1/30 sec
Humedad de operación	0 - 90%
Operating System Required	Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Optical Zoom	4.3
Protection	Vandal-proof
Sensor Pixels Effective (H)	1945
Sensor Pixels Effective (V)	1097
Sensor Pixels Total (H)	1945
Sensor Pixels Total (V)	1109
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,000,000 pixels
Video Formats	AVC, H.264, H.265, MJPEG, MPEG-4, NTSC, PAL
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Audio Detection, Auto gain control, Auto tracking, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Directional Motion Detection, Face Detection, Fog detection, Hallway View, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Tamper-detection, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	4.7 inch
Weight	34.74 ounce
Ancho	6.3 inch
Profundidad	6.3 inch
Color	Ivory
Color	Beige
Estándares	IEEE 802.1x, IEEE 802.3af, IK10, IP66, IP67, NEMA Type 4X
