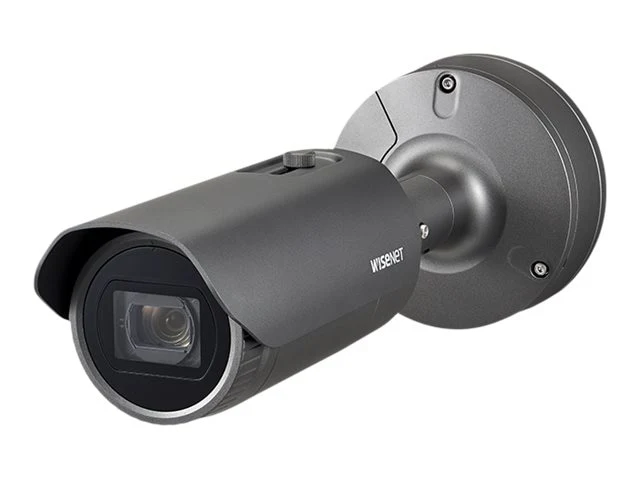

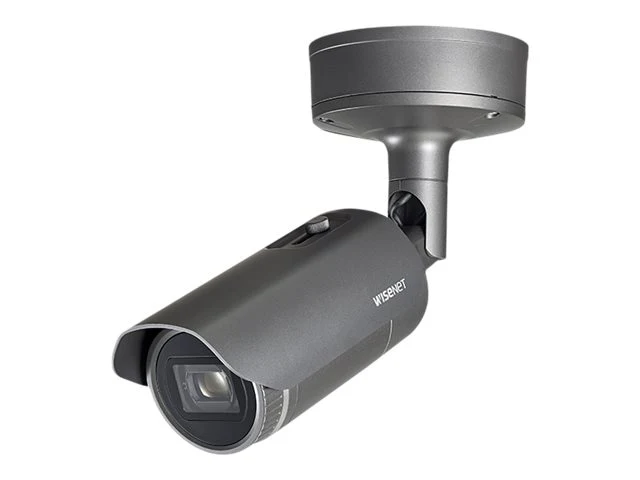

Cámara de Seguridad Hanwha Vision Wisenet X XNO-6120R/LPR

Sobre este producto

• 📹 Cámara bullet de red 2.2MP a 1920 x 1080 (Full HD)
• 🔍 Lente vari-focal con control de iris automático para distintas condiciones de luz
• 🌙 LED infrarrojos con visibilidad hasta 70 m en oscuridad total
• 🔊 Audio bidireccional y ranura para tarjeta SD
• 🛡️ Certificación IK10, IP66 e IP67 contra impactos, agua y polvo
• 📼 Compresión H.264/H.265/MJPEG

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XNO-6120R/LPR
Fabricante	Hanwha
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out - 3.5 mm mono jack, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1920 x 1080
Digital Zoom	24
Max Frame Rate	60 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Capture	1920 x 1080 @ 60 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / AC 24 V / PoE Class 3
Power Consumption Operational	14.5 watt
Angular Field of View (D, Max, Degree)	61.4
Angular Field of View (D, Min, Degree)	6.06
Angular Field of View (H, Max, Degree)	54.58
Angular Field of View (H, Min, Degree)	5.3
Angular Field of View (V, Max, Degree)	32.19
Angular Field of View (V, Min, Degree)	3
Auto Iris Control	DC
Camera Iris	Auto iris
Focal Length Control	Vari-focal
Focus Modes	Automatic, Manual
Indoor/Outdoor	Outdoor
Infrared Distance	230 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6-3.0
Max Focal Length	62.4 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	5.2 millimetre
Min Focus Distance	59.1 inch
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.03 lux - color - F1.6
Humedad de operación	0 - 90%
Optical Zoom	12
Protection	Vandal-proof
Sensor Pixels Effective (H)	1945
Sensor Pixels Effective (V)	1097
Sensor Pixels Total (H)	1945
Sensor Pixels Total (V)	1109
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,160,000 pixels
Video Formats	AVC, H.264, H.265, MJPEG, MPEG-4
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	2D Noise Filtering, 300 preset positions, 3D Noise Filtering, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Directional Detection, Fog detection, Hallway View, Handover, Heater, Image flip, Image mirror, IP address filtering, Lens Distortion Correction, License plate recognition (LPR), Loitering detection, Motion Detection, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Unicast Streaming, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	14.5 inch
Weight	4.81 lbs
Ancho	3.6 inch
Profundidad	3.6 inch
Color	Dark gray
Color	Gray
Estándares	IEEE 802.1x, IEEE 802.3af, IK10, IP66, IP67, NEMA Type 4X
