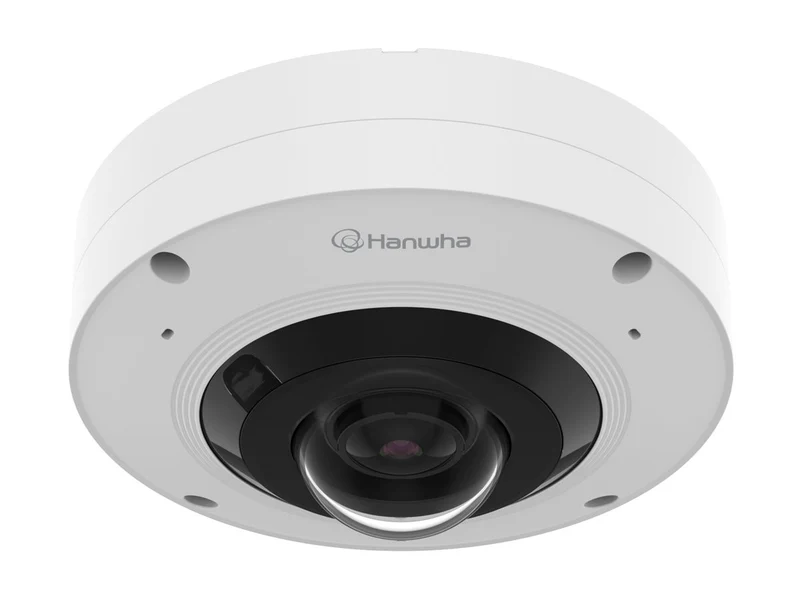

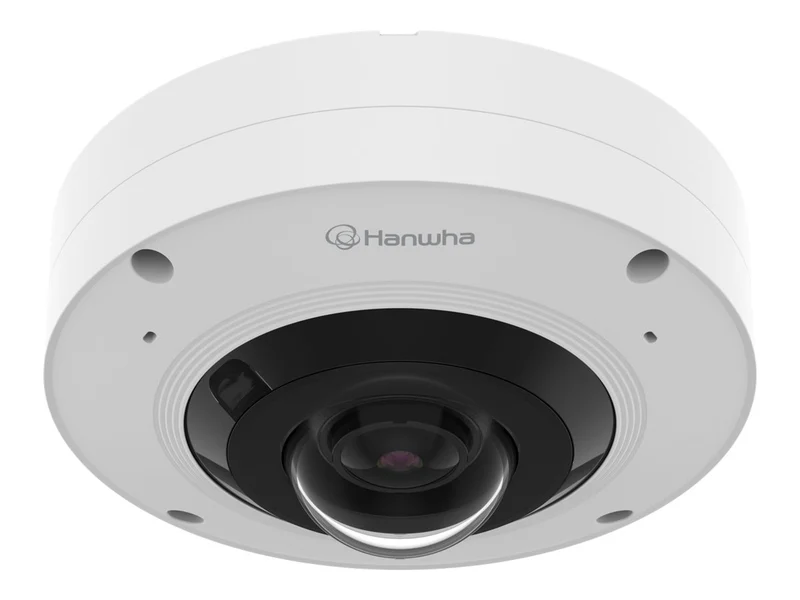

Cámara de Seguridad Hanwha Vision WiseNet X XNF-A9014RV

Sobre este producto

• 📹 Cámara fisheye de 12MP con resolución 3584 x 2688 y campo de visión de 185°
• 🔍 Lente f/1.8 con mínima iluminación de 0.001 lux en modo B/N para baja luz
• 🗜️ Compresión MJPEG / H.264 / H.265 y audio integrado
• 🛡️ Cumple con la norma TAA, diseño para exteriores
• 🌡️ Opera en condiciones extremas de -40°C a 55°C con humedad de 0 a 100% RH

Característica	Detalle
Marca	Hanwha Vision
Línea de producto	Hanwha Vision WiseNet X
Modelo	XNF-A9014RV
Fabricante	Hanwha
Flash Memory Installed	8 GB
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	4 GB
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, CDP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, SUNAPI, Syslog, TCP, TCP/IP, TLS, UDP, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, LAN/power - RJ-45
Image Sensor Size	1/1.6"
Image Sensor Type	CMOS
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726
Audio Support	Yes
Audio Support Features	Built-in three microphones
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 256, 1024 x 512, 1024 x 768, 1280 x 1280, 1280 x 320, 1280 x 640, 1280 x 960, 160 x 160, 1600 x 1600, 1792 x 1344, 1920 x 480, 1920 x 960, 2560 x 1280, 2560 x 1920, 2560 x 2560, 2560 x 640, 3008 x 3008, 320 x 240, 3536 x 3536, 3584 x 1792, 3584 x 2688, 3584 x 896, 480 x 480, 640 x 160, 640 x 320, 640 x 480, 640 x 640, 800 x 600, 800 x 800
Max Frame Rate	30 frames per second
Max Video Resolution	3584 x 2688
Motion Detection	Yes
Shutter Speed (Max)	1/30000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Plus Class 4
Angular Field of View (D, Min, Degree)	185
Angular Field of View (H, Min, Degree)	185
Angular Field of View (V, Min, Degree)	185
Encryption	EAP-LEAP, EAP-PEAP, EAP-TLS, FIPS 140-3, MSCHAPv2
Focal Length Control	Fixed focal
Factor de forma	Fisheye
Indoor/Outdoor	Outdoor
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/1.8
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	1.76 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0.001 lux - B&W - 30 IRE - shutter 1/30 sec, 0.02 lux - color - 30 IRE - shutter 1/30 sec
Humedad de operación	0 - 100% RH
Sensor Size (metric)	15.9 mm (1/1.6")
Total Pixels	12,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	2
Alarm Output Quantity	2
Características	Alarm function, Aluminum enclosure, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Clothes color detection, Constant Bit Rate (CBR), Defog, Digital image rotation, Digital Image Stabilization (DIS), Digital PTZ function, Email upload, Entrance / exit detection, FTP alerts, Handover, Hard-coated dome, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, Loitering detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object classification, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Tampering detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream support
Cantidad por empaque	1
Alto	3 inch
Weight	2.25 lbs
Ancho	6.3 inch
Profundidad	6.3 inch
Color	RAL 9003, White
Color	White
Estándares	AES-256, AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 45545, EN 50121-3-2, EN 50121-4, EN 50130-4, EN 50155, EN 50498, EN 61000-3-2, EN 61000-3-3, EN 62676-4, EN/IEC 63000:2018, EN55032 Class A, ETSI EN 303 645, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60529 IP66, IEC 62236-3-2, IEC 62236-4, IEC 62262 IK10, IEC 62471, IEC/EN 63000, IEC/EN61373, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, KS C 9832 Class A, KS C 9835, NEMA 250 Type 4X, NEMA TS-2 2013 (2.2.7-2.2.8-2.2.9), RCM, RoHS 2011/65/EU, UL 62368-1, VCCI-CISPR 32 Class A
TAA Compliant	Yes
