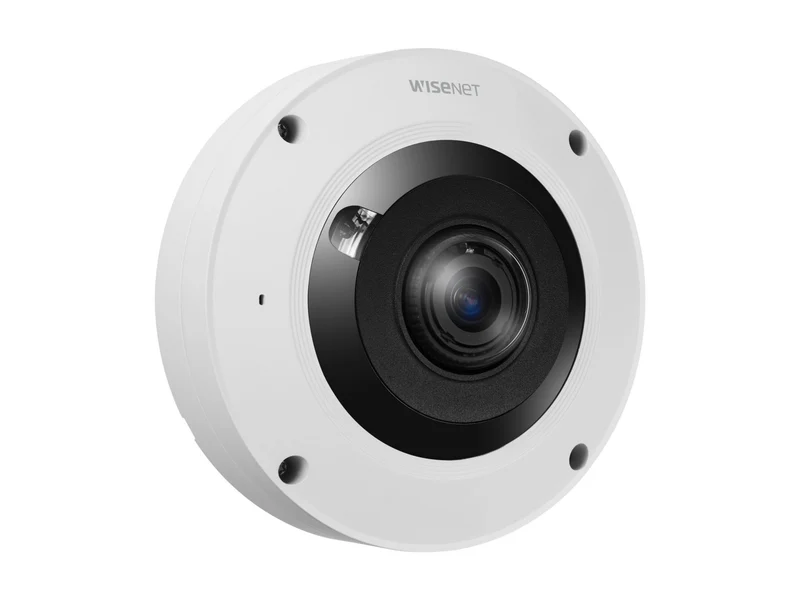

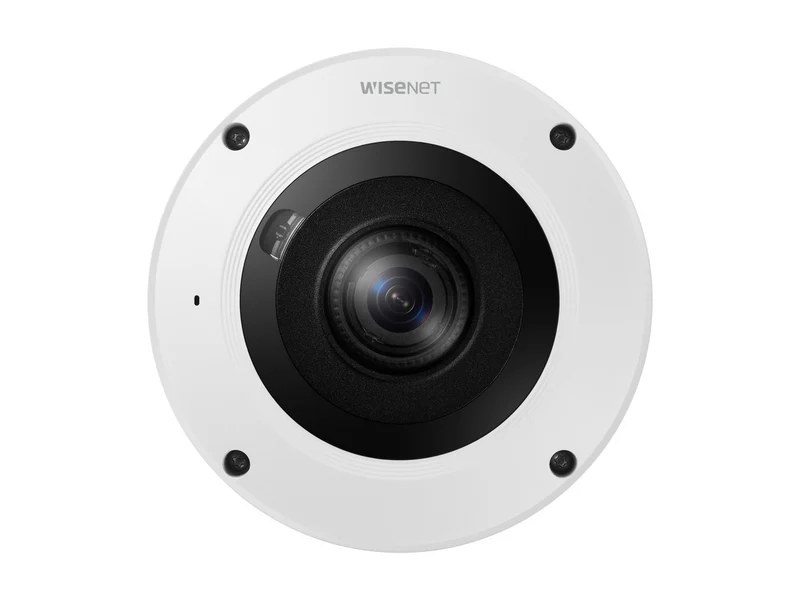

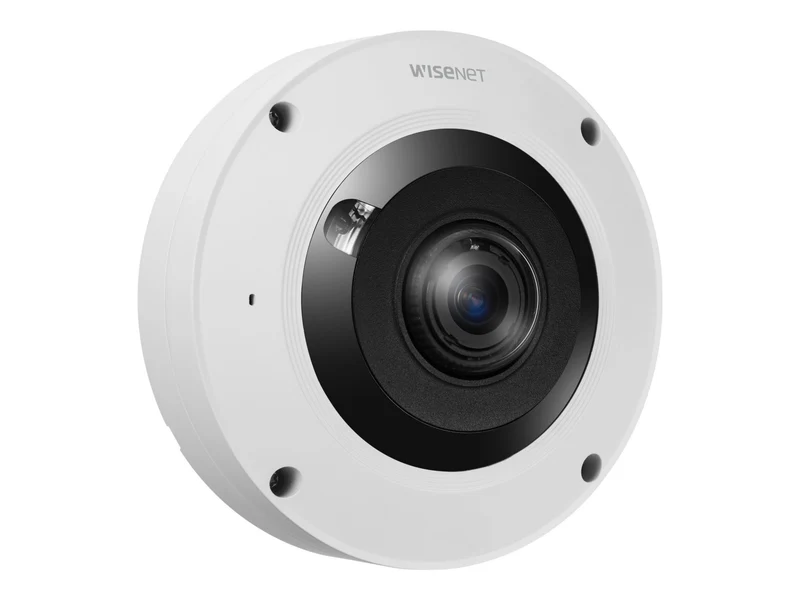

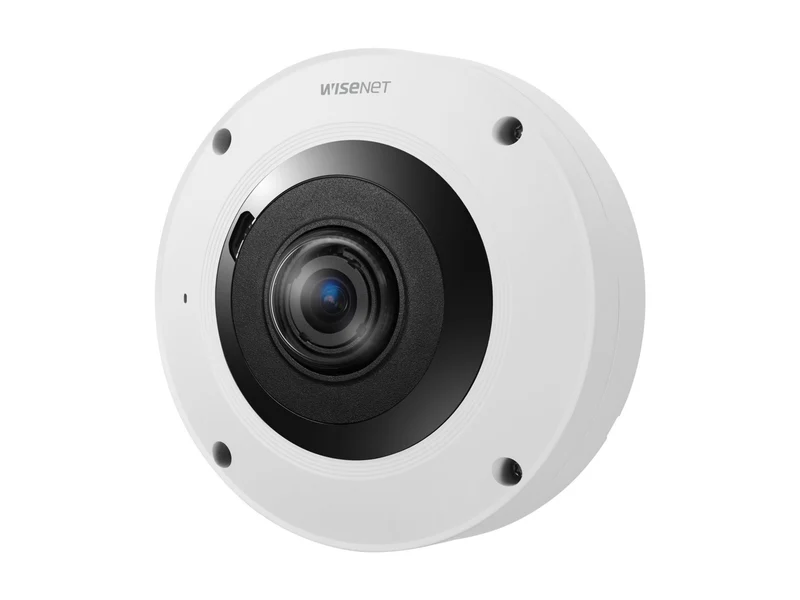

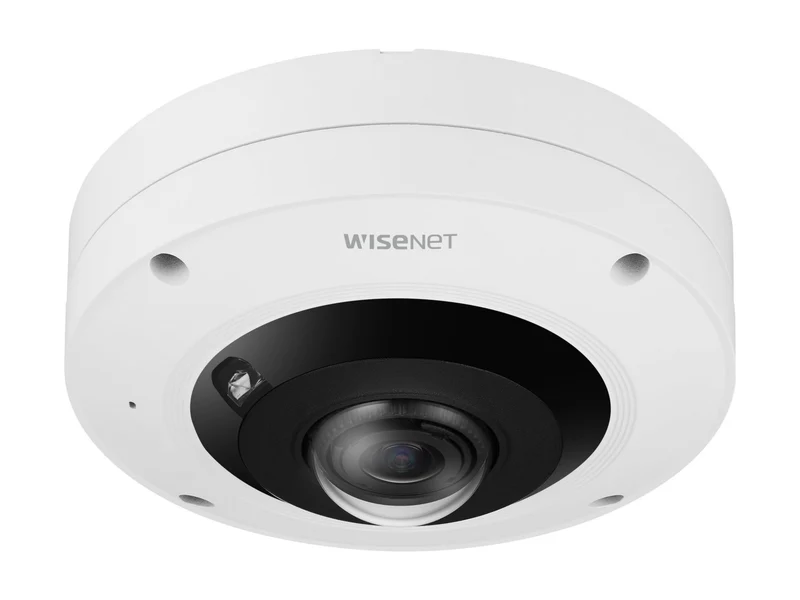

Cámara de Seguridad Hanwha Vision Wisenet X XNF-9013RV

Sobre este producto

• 📹 Resolución 12 MP (3008 x 3008): cámara fisheye para cobertura sin puntos ciegos.
• 🔄 Dewarping en vivo: graba la imagen fisheye completa.
• 🌙 IR integrado con Wise IR II multi-zona: visión en baja luz.
• 🧠 Motor de IA: búsqueda forense y reducción de falsas alertas.
• ⚡ DC 12 V / PoE Class 3 (LAN 10/100): alimentación flexible.
• 🔊 Audio + apto para exteriores: monitoreo completo.

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XNF-9013RV
Fabricante	Hanwha
Flash Memory Installed	512 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	4 GB
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, Composite video - BNC, LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	1/2.3"
Image Sensor Type	CMOS
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support	Yes
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1792 x 1344, 3008 x 3008, 3584 x 1792, 3584 x 2688, 3584 x 896, 480 x 480, 640 x 160, 640 x 320, 640 x 480
Max Frame Rate	30 frames per second
Max Video Resolution	3008 x 3008
Motion Detection	Yes
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Capture	3008 x 3008 @ 30 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Class 3
Angular Field of View (D, Min, Degree)	187
Angular Field of View (H, Min, Degree)	187
Angular Field of View (V, Min, Degree)	187
Focal Length Control	Fixed focal
Factor de forma	Fisheye
Indoor/Outdoor	Outdoor
Infrared Distance	43 ft
Infrared LEDs	Yes
Lens Aperture	F/2.2
Temp. máx. de operación	140 degree Fahrenheit
Min Focal Length	1.08 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.39 lux - color - F2.2 - shutter 1/30 sec
Humedad de operación	0 - 95% RH
Sensor Size (metric)	11 mm (1/2.3")
Total Pixels	12,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	Anti-flicker, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Camera Tampering Detection, Constant Bit Rate (CBR), Defocus Detection, Entrance / exit detection, Extreme WDR, Fog detection, Gain Control, Handover, Hard-coated dome, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, Intrusion detection, IP address filtering, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Sound classification, TPM 2.0 module, Variable Bit Rate (VBR), Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseIR, WiseNR II, WiseStream II support, WiseStream III support
Cantidad por empaque	1
Alto	2.8 inch
Weight	2.58 lbs
Ancho	6.3 inch
Profundidad	6.3 inch
Color	RAL 9003, White
Color	White
Estándares	EN 50130-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, FCC 47 CFR Part 15 B Class A, FIPS 140-2, ICES-3(A)/NMB-3(A), IEC 60529 IP66, IEC 62262 IK10, IEC/EN 62471, IEC/EN 63000, IEEE 802.1x, IEEE 802.3af, KS C 9832 Class A, KS C 9835, NDAA, NEMA250 Type 4X, UKCA, UL 62368-1
