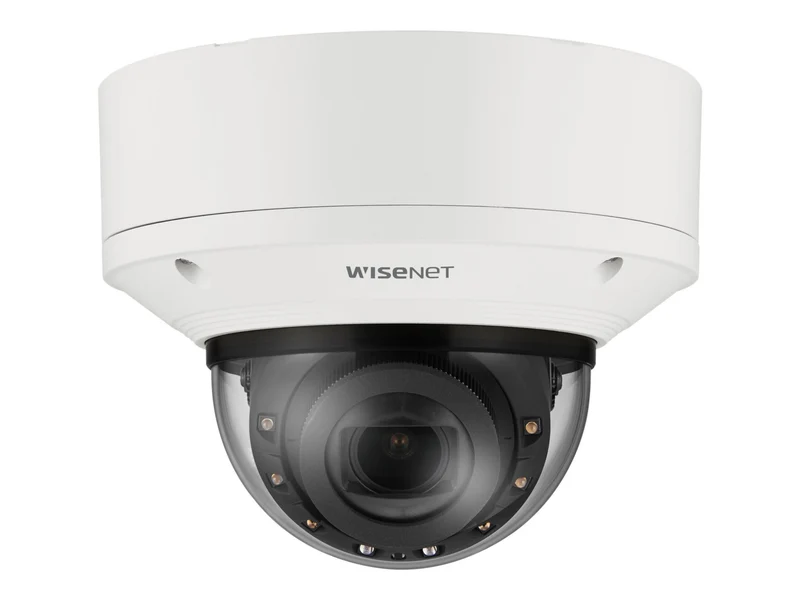

Cámara de Seguridad Hanwha Vision WiseNet X XND-9083RV

Sobre este producto

• 📹 Cámara domo de red con captura 4K (3840 x 2160) y lente de zoom motorizado.
• 🌐 Amplio campo de visión que reduce la necesidad de múltiples cámaras.
• 🌙 Visión nocturna infrarroja y analíticas de video inteligentes.
• 🌡️ Diseño robusto para interior y exterior en frío extremo y alta humedad.
• 🛡️ Carcasa antivandálica (vandal-proof) con auto iris.
• 🔌 Conexión GbE con DC 12 V / PoE y audio.

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XND-9083RV
Fabricante	Hanwha
Flash Memory Installed	512 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	4 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	1/1.8"
Image Sensor Type	CMOS
Tilt	-45 to +85
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	3840 x 2160
Motion Detection	Yes
Panning Range (degree)	0 to 360
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Modes	4K
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE
Power Consumption Operational	22.5 watt
Angular Field of View (D, Max, Degree)	137.5
Angular Field of View (D, Min, Degree)	54.6
Angular Field of View (H, Max, Degree)	112.1
Angular Field of View (H, Min, Degree)	47.5
Angular Field of View (V, Max, Degree)	58
Angular Field of View (V, Min, Degree)	26.6
Auto Iris Control	P-Iris
Camera Iris	Auto iris
Focal Length Control	Motorized zoom
Factor de forma	Dome
Indoor/Outdoor	Indoor
Infrared Distance	164 ft
Infrared LEDs	Yes
Lens Aperture	F/1.3-2.15
Max Focal Length	9.3 millimetre
Temp. máx. de operación	122 degree Fahrenheit
Min Focal Length	4.4 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-13 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.004 lux - B&W - F1.3 - 30 IRE - shutter 1/30 sec, 0.04 lux - color - F1.3 - 30 IRE - shutter 1/30 sec
Humedad de operación	0 - 95% RH (non-condensing)
Optical Zoom	2.1
Protection	Vandal-proof
Sensor Size (metric)	14.1 mm (1/1.8")
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	Appearing / disappearing detection, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digest authentication, Digital Image Stabilization (DIS), Directional Detection, Entrance / exit detection, Extreme WDR, Fog detection, Hallway View, Highlight Compensation (HLC), Image flip, Image mirror, Intelligent Video Analysis (IVA), IP address filtering, Loitering detection, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Smart Codec, Sound classification, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support, WiseStream III support
Cantidad por empaque	1
Alto	4.9 inch
Weight	3.53 lbs
Ancho	6.3 inch
Profundidad	6.3 inch
Color	RAL 9003, White
Color	White
Estándares	cULus, EAC, FCC, IEEE 802.3at, IK10, IP52
