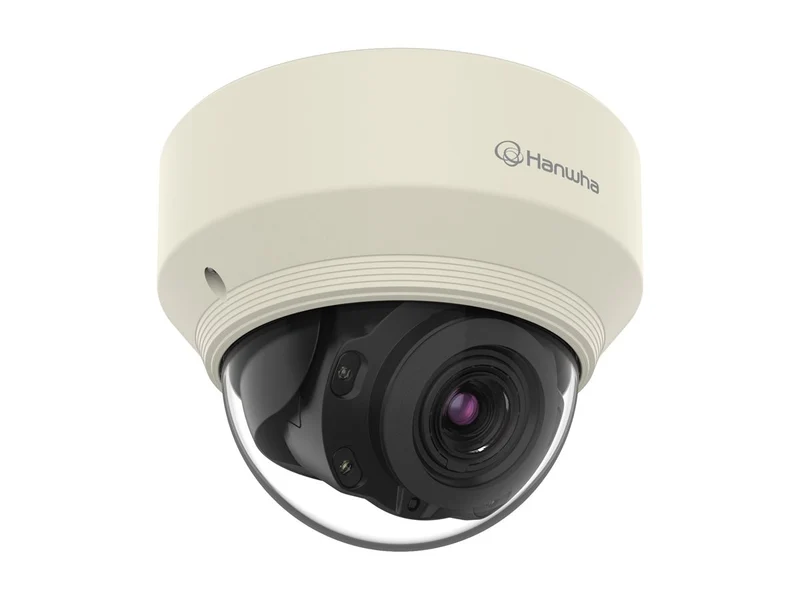

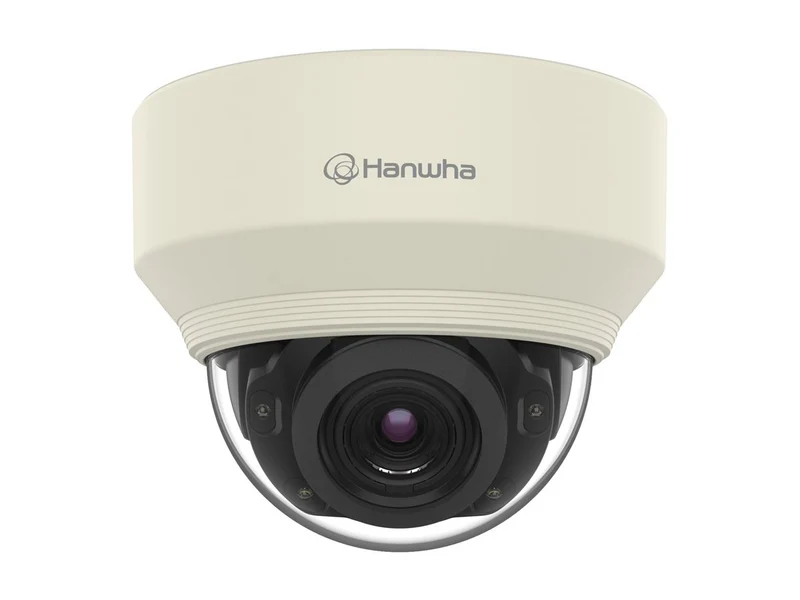

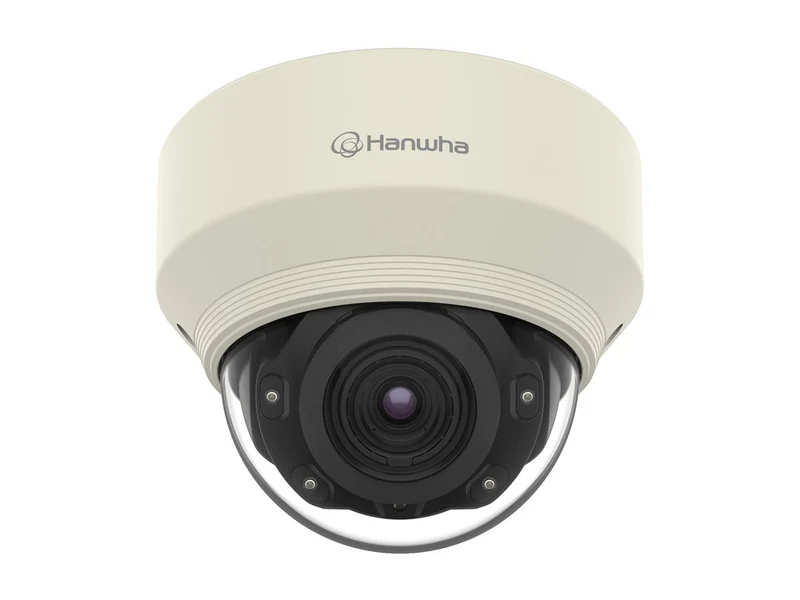

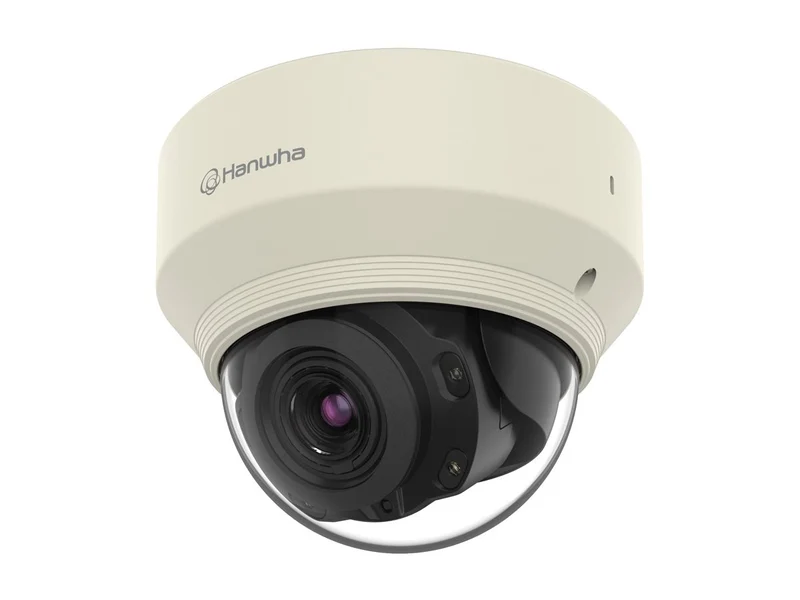

Cámara de Seguridad Hanwha Vision Wisenet X XND-8080RV

Sobre este producto

• 📹 Cámara dome 6MP con sensor 1/1.8" a 2560 x 1920
• 🔍 Lente vari-focal motorizado 3.9-9.4mm
• 💾 Dos ranuras para tarjeta de memoria de hasta 512 GB cada una
• 🌙 Filtro IR-cut y LED IR para captura en baja luz
• 🛡️ Carcasa antivandálica (vandal-proof)
• 📼 Compresión MPEG-4/MJPEG/H.264/H.265

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XND-8080RV
Fabricante	Hanwha
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, Composite video, USB - Micro-USB Type B
Image Sensor Size	1/1.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2560 x 1920, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Digital Zoom	24
Max Frame Rate	30 frames per second
Max Video Resolution	2560 x 1920
Motion Detection	Yes
Panning Range (degree)	0 to 354
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Capture	2560 x 1920 @ 30 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE
Power Consumption Operational	10 watt
Angular Field of View (H, Max, Degree)	92.1
Angular Field of View (H, Min, Degree)	38.7
Angular Field of View (V, Max, Degree)	67.2
Angular Field of View (V, Min, Degree)	29
Auto Iris Control	DC, P-Iris
Camera Iris	Auto iris
Focal Length Control	Motorized zoom
Focus Modes	Automatic, Manual, Motorized
Factor de forma	Dome
Infrared Distance	98 ft
Infrared LEDs	Yes
Lens Aperture	F/1.3
Max Focal Length	9.4 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.9 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.07 lux - color - F1.3 - shutter 1/30 sec
Humedad de operación	0 - 90%
Operating System Required	Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Optical Zoom	2.4
Protection	Vandal-proof
Sensor Pixels Effective (H)	2616
Sensor Pixels Effective (V)	1976
Sensor Pixels Total (H)	3096
Sensor Pixels Total (V)	2094
Sensor Size (metric)	14.1 mm (1/1.8")
Total Pixels	6,000,000 pixels
Video Formats	AVC, H.264, H.265, MJPEG, MPEG-4, NTSC, PAL
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	2D Digital Noise Reduction Technology, 3D Noise Filtering, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Face Detection, Highlight Compensation (HLC), Image flip, Image mirror, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Video analytics, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	4.4 inch
Weight	25.82 ounce
Ancho	5.5 inch
Profundidad	5.5 inch
Color	Ivory
Color	White
Estándares	IEC 62262 IK08, IEEE 802.3af
