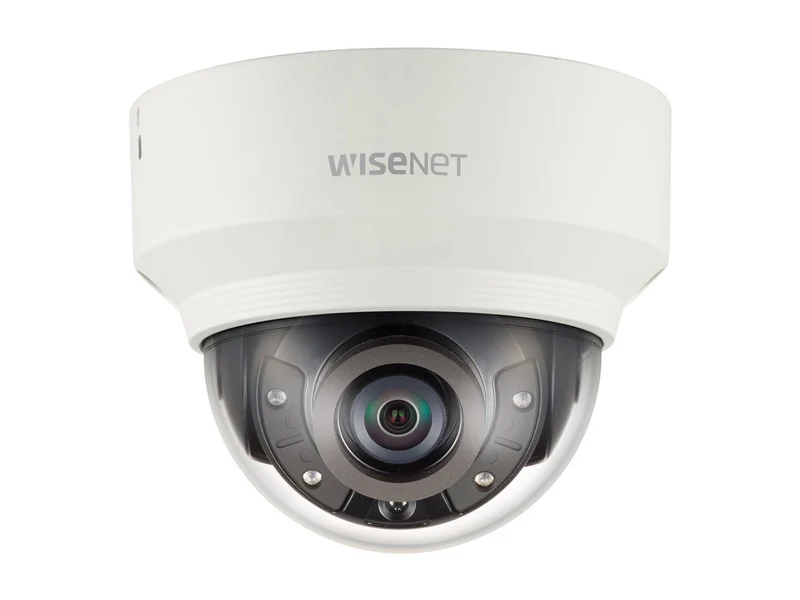

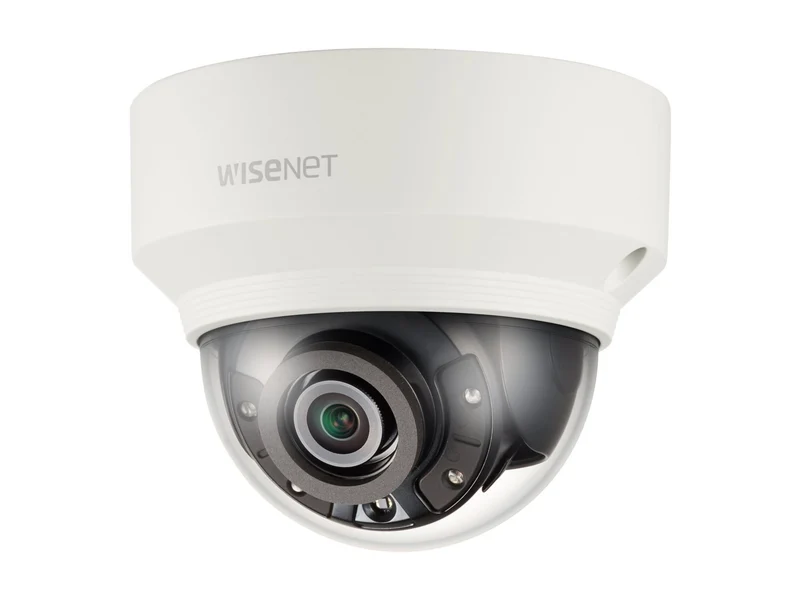

Cámara de Seguridad Hanwha Vision Wisenet X XND-8020R

Sobre este producto

• 📹 Cámara dome de red 6MP a 2560 x 1920
• 🔍 Lente fijo de 3.7mm
• 🧠 Analíticas: merodeo, detección direccional, de niebla, de audio y clasificación de sonido
• 🌗 Modo día/noche a color con seguimiento automático digital
• 🔌 Alimentación DC 12V / PoE con LAN 10/100
• 🛡️ Carcasa antivandálica (vandal-proof)

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XND-8020R
Fabricante	Hanwha
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, Composite video, USB - Micro-USB Type B
Image Sensor Size	1/1.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Audio Support	Yes
Audio Support Features	Built-in microphone, Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2560 x 1920, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Digital Zoom	24
Max Frame Rate	30 frames per second
Max Video Resolution	2560 x 1920
Motion Detection	Yes
Panning Range (degree)	0 to 354
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Capture	2560 x 1920 @ 30 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE
Power Consumption Operational	9 watt
Angular Field of View (H, Min, Degree)	97.5
Angular Field of View (V, Min, Degree)	71.9
Focal Length Control	Fixed focal
Focus Modes	Manual
Factor de forma	Dome
Infrared Distance	98 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.7 millimetre
Min Focus Distance	15.7 inch
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.16 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 90%
Operating System Required	Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Protection	Vandal-proof
Sensor Pixels Effective (H)	2616
Sensor Pixels Effective (V)	1976
Sensor Pixels Total (H)	3096
Sensor Pixels Total (V)	2094
Sensor Size (metric)	14.1 mm (1/1.8")
Total Pixels	6,000,000 pixels
Video Formats	AVC, H.264, H.265, MJPEG, MPEG-4
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	2D Digital Noise Reduction Technology, 3D Noise Filtering, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Face Detection, Highlight Compensation (HLC), Image flip, Image mirror, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Video analytics, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	3.5 inch
Weight	13.4 ounce
Ancho	4.3 inch
Profundidad	4.3 inch
Color	Ivory
Color	White
Estándares	IEC 62262 IK08
