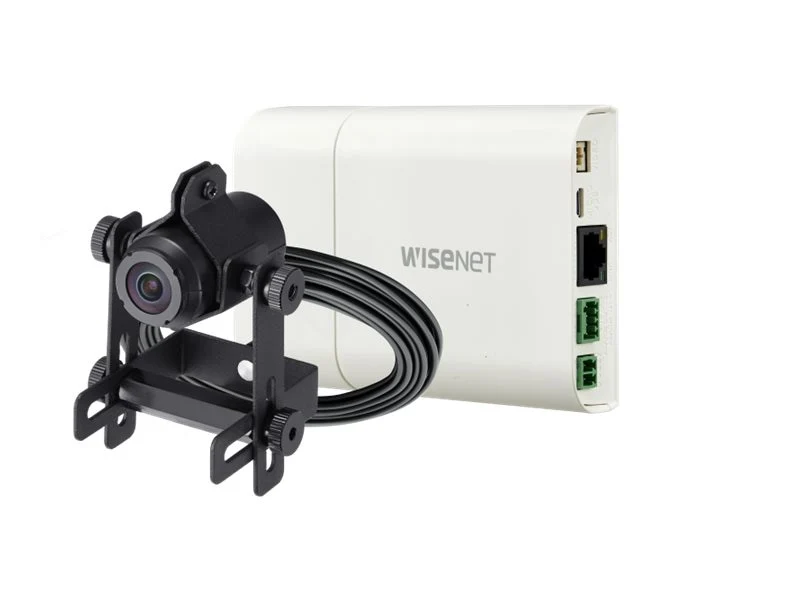

Cámara de Seguridad Hanwha Vision Wisenet X XNB-H6240A

Sobre este producto

• 📹 Cámara de red WiseNet X de 2.2 MP con resolución Full HD 1920 x 1080 a 60 fps
• 🌙 Función día y noche con compensación de contraluz, defog y Wide Dynamic Range
• 🎛️ Filtrado de ruido 2D y 3D y estabilización digital de imagen (DIS)
• 🧠 Analítica avanzada: detección de rostros y conteo de personas
• 🔌 Alimentación DC 12 V o PoE Class 3, con audio, LAN 10/100 y salida composite
• 🌡️ Diseño robusto para operar en temperaturas y humedad extremas

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XNB-H6240A
Fabricante	Hanwha
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - 4 pin USB Type B
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Audio Formats	AAC-LC, ADPCM, G.711u, G.726
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Digital Zoom	24
Max Frame Rate	60 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Capture	1920 x 1080 @ 60 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Class 3
Power Consumption Operational	6.5 watt
Angular Field of View (D, Min, Degree)	168
Angular Field of View (H, Min, Degree)	138
Angular Field of View (V, Min, Degree)	73
Focal Length Control	Fixed focal
Lens Aperture	F/2.0
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	2.4 millimetre
Min Focus Distance	11.8 inch
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0.45 lux - B&W - F2.0, 0.45 lux - color - F2.0
Humedad de operación	0 - 90%
Operating System Required	Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Sensor Pixels Effective (H)	1945
Sensor Pixels Effective (V)	1097
Sensor Pixels Total (H)	1945
Sensor Pixels Total (V)	1109
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,160,000 pixels
Video Formats	AVC, H.264, H.265, MJPEG, MPEG-4, NTSC, PAL
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	2D Digital Noise Reduction Technology, 3D Noise Filtering, Anti-flicker, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Directional Motion Detection, Dust Detection, Face Detection, Fog detection, Handover, Heat Map, Image flip, Image mirror, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, People counting, Pixel Counter Support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Cables	Data cable - 5 ft

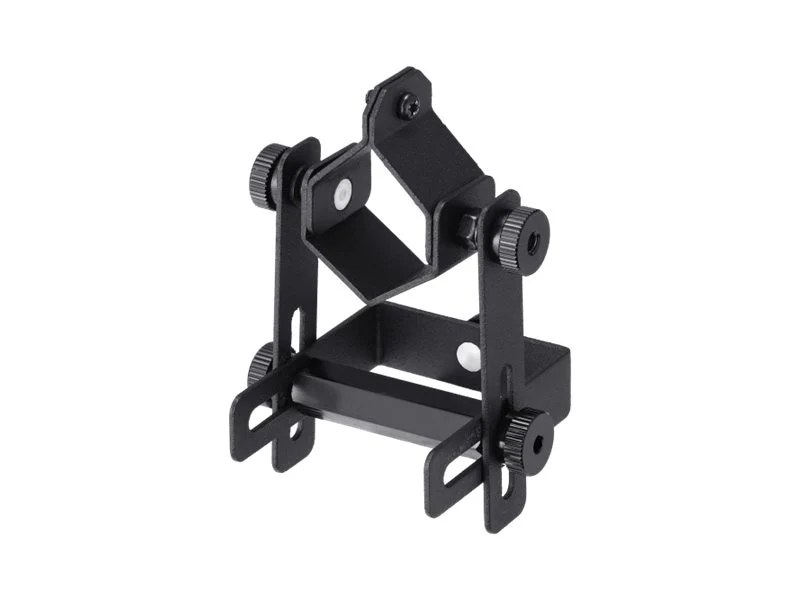

Accesorios incluidos	ATM mount bracket (SBU-200)
Alto	1.1 inch
Weight	8.64 ounce
Ancho	5.2 inch
Profundidad	3.4 inch
Color	Ivory
Color	White
Estándares	cUL, FCC, IEEE 802.1x, IEEE 802.3af
