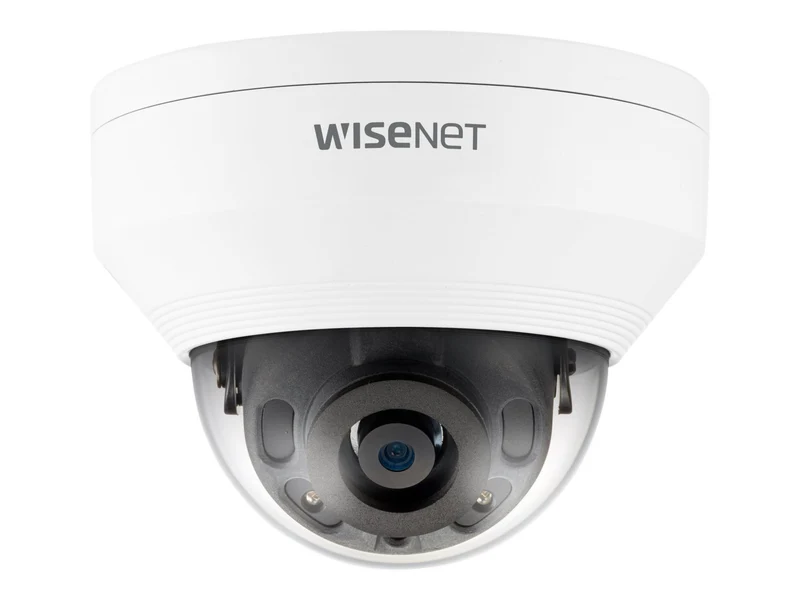

Cámara de Seguridad Hanwha Vision Wisenet Q QNV-8020R

Sobre este producto

• 📹 Sensor CMOS de 5MP de 1/2.8" con resolución máxima de 2592 x 1944
• 🛡️ Domo antivandálico para exterior (Outdoor Vandal Resistant)
• 📉 Tecnología de compresión WiseStream II y códecs MJPEG, H.264 y H.265
• 👁️ Amplio campo de visión para monitorear grandes áreas exteriores
• 🔌 Alimentación PoE Class 3 y conexión LAN 10/100
• 🌗 Función día/noche a color (Day&Night)

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet Q
Modelo	QNV-8020R
Fabricante	Hanwha
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Composite video, LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2592 x 1944, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	2592 x 1944
Motion Detection	Yes
Panning Range (degree)	350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Class 3
Power Consumption Operational	5.4 watt
Angular Field of View (D, Min, Degree)	105.9
Angular Field of View (H, Min, Degree)	79.8
Angular Field of View (V, Min, Degree)	58.1
Focal Length Control	Fixed focal
Factor de forma	Dome
Infrared Distance	82 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	4 millimetre
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.15 lux - color - F1.6
Humedad de operación	0 - 90%
Operating System Required	Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Sensor Pixels Effective (H)	2592
Sensor Pixels Effective (V)	1944
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	5,000,000 pixels
Video Formats	H.264, H.265, MJPEG, NTSC, PAL
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Direction detection, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	3.6 inch
Weight	17.99 ounce
Ancho	4.7 inch
Profundidad	4.7 inch
Color	White
Color	White
Estándares	cULus, EAC, FCC, IEEE 802.1x, IEEE 802.3af, IK10, IP66
