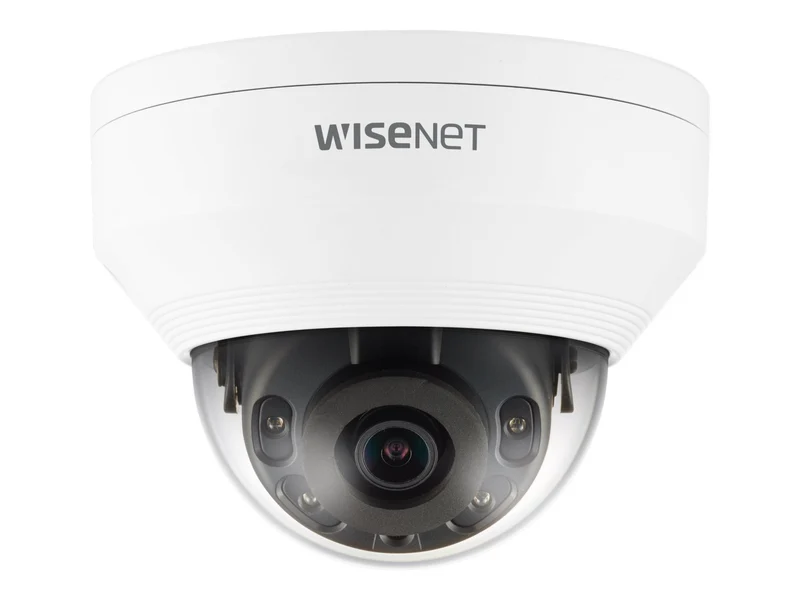

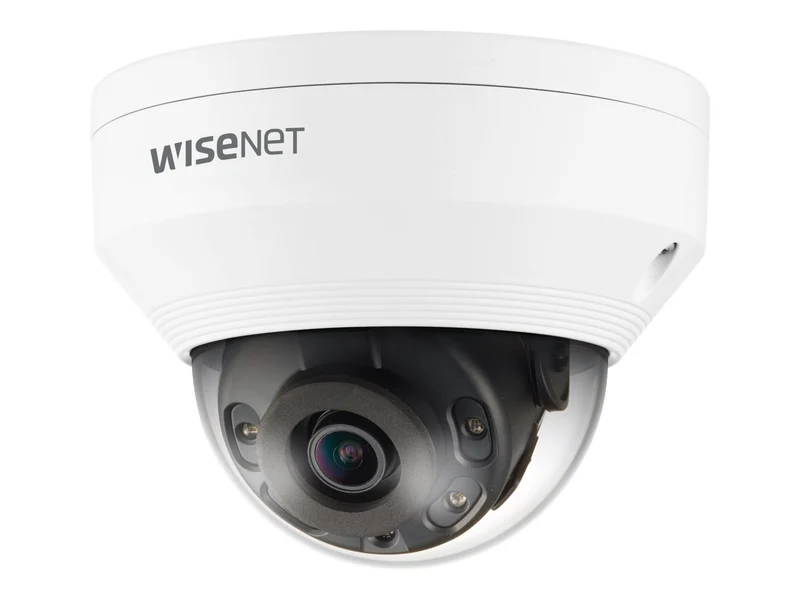

Cámara de Seguridad Hanwha Vision Wisenet Q QNV-8010R

Sobre este producto

• 📹 Resolución 5 MP (2592 x 1944): sensor 1/2.8" CMOS en formato dome.
• 🛡️ Dome antivandálico (vandal-proof) para exteriores: monitorea grandes áreas.
• ⚡ PoE Class 3 (LAN 10/100): alimentación y datos por un solo cable.
• 🎞️ Compresión H.265/H.264/MJPEG: reduce datos y extiende la grabación.
• 🌗 Color día/noche (Day&Night): imágenes claras las 24 horas.
• 🚨 Detección de sabotaje, movimiento y desenfoque: utilidad añadida.

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet Q
Modelo	QNV-8010R
Fabricante	Hanwha
Flash Memory Installed	256 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	512 megabyte
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Composite video, LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2592 x 1944, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	2592 x 1944
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Capture	2592 x 1944 @ 30 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Class 3
Power Consumption Operational	7.5 watt
Angular Field of View (D, Min, Degree)	136
Angular Field of View (H, Min, Degree)	104.7
Angular Field of View (V, Min, Degree)	76.5
Focal Length Control	Fixed focal
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/2.0
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	2.8 millimetre
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.15 lux - color - F2.0 - shutter 1/30 sec
Humedad de operación	0 - 90%
Operating System Required	Apple macOS 10.12, Apple macOS 10.13, Apple macOS 10.14, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Protection	Vandal-proof
Sensor Pixels Effective (H)	2592
Sensor Pixels Effective (V)	1944
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	5,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Anti-flicker, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Hallway View, Handover, Image flip, Image mirror, Infrared cut filter, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Smart Codec, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	3.6 inch
Weight	17.99 ounce
Ancho	4.7 inch
Profundidad	4.7 inch
Color	RAL 9003, White
Color	White
Estándares	IEEE 802.1x, IEEE 802.3af, IK10, IP66
