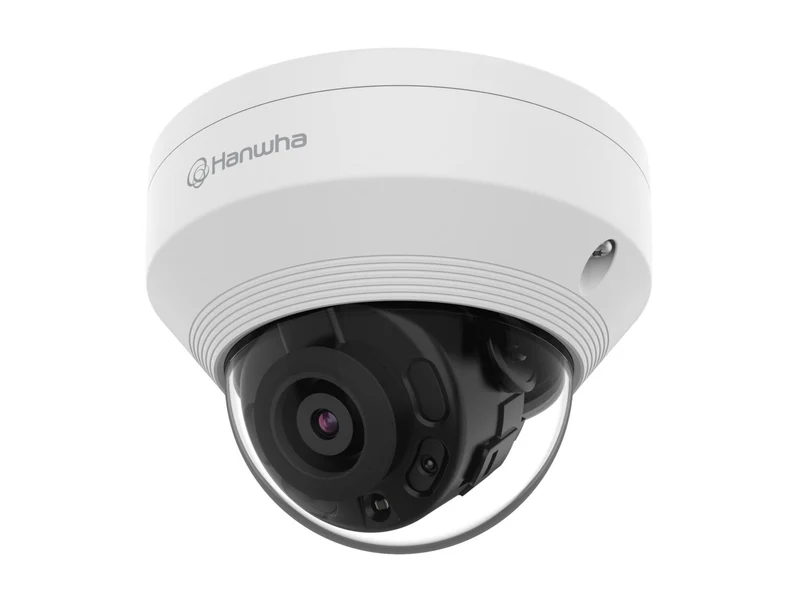

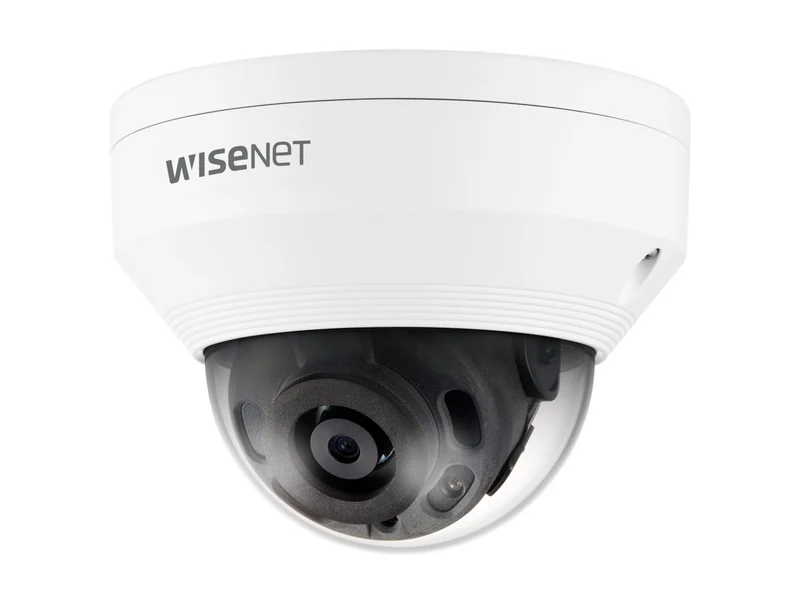

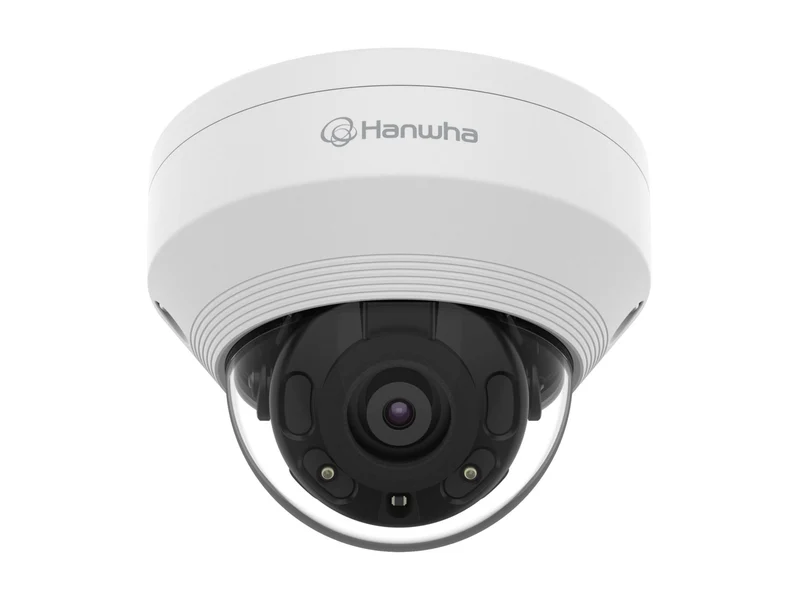

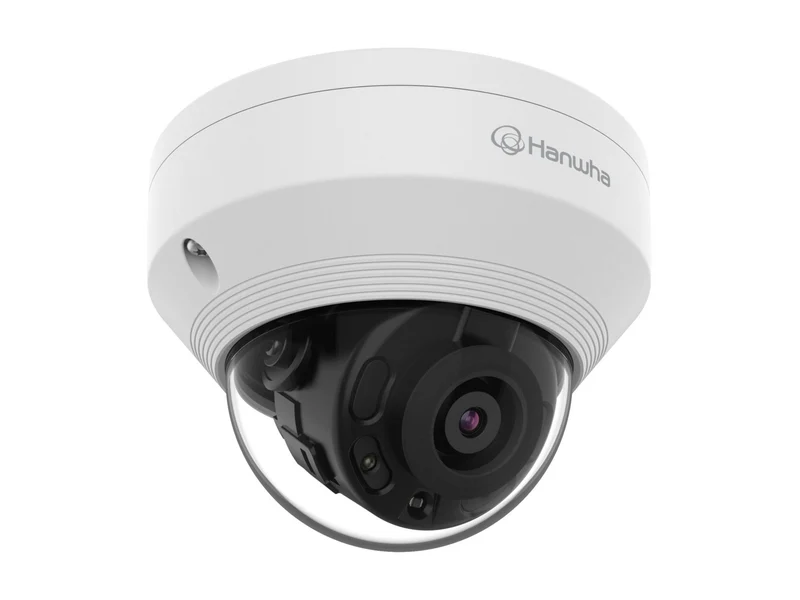

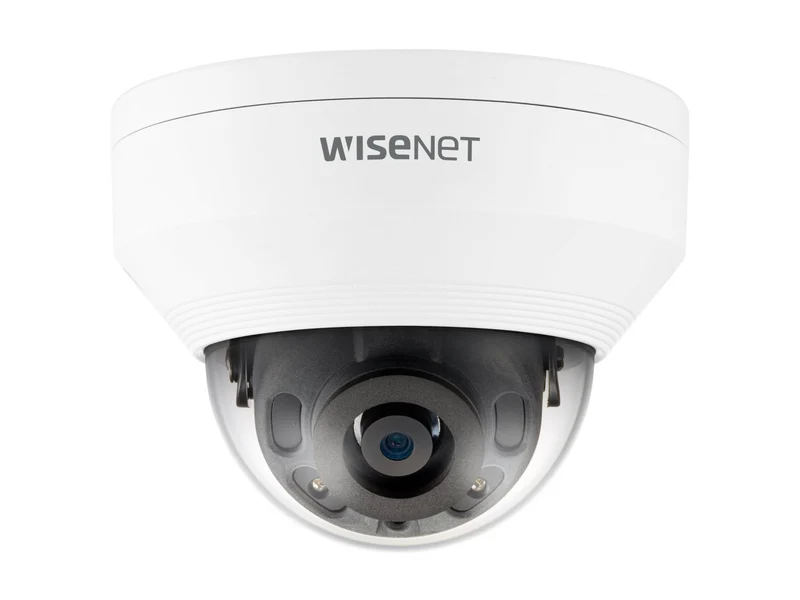

Cámara de Seguridad Hanwha Vision Wisenet Q QNV-7022R

Sobre este producto

• 📹 Resolución 4MP: cámara vandal dome de alto rendimiento.
• 🛡️ IP66 e IK10: resistente a la intemperie y antivandálica.
• 🔍 Lente fijo 4 mm (fixed focal): amplio campo de visión.
• 🚨 Detección de movimiento, sabotaje y desenfoque: seguridad avanzada.
• ⚡ PoE / 12 VDC: alimentación flexible.
• 💾 microSD integrada + Hallway View y LDC: almacenamiento a bordo.

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet Q
Modelo	QNV-7022R
Fabricante	Hanwha
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line-in/microphone, Composite video, LAN/power - RJ-45
Image Sensor Size	1/3"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Audio Support	Yes
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 2304 x 1296, 2560 x 1440, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	15 frames per second
Max Video Resolution	2560 x 1440
Motion Detection	Yes
Panning Range (degree)	0 to 350
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Class 3
Power Consumption Operational	8.1 watt
Angular Field of View (D, Min, Degree)	92
Angular Field of View (H, Min, Degree)	78.2
Angular Field of View (V, Min, Degree)	41.2
Auto Iris Control	DC
Camera Iris	Auto iris
Focal Length Control	Fixed focal
Factor de forma	Dome
Indoor/Outdoor	Indoor, Outdoor
Infrared Distance	82 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Lens Mount	Board mount
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	4 millimetre
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.15 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 90%
Protection	Dustproof / waterproof / vandal-proof
Sensor Size (metric)	8.5 mm (1/3")
Total Pixels	4,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Intelligent Video Analysis (IVA), Lens Distortion Correction, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Privacy Mask Function, Progressive scanning, Samsung Super Noise Reduction (SSNR), Tamper-detection, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream Smart Codec
Cantidad por empaque	1
Alto	3.6 inch
Weight	17.99 ounce
Ancho	4.7 inch
Profundidad	4.7 inch
Color	RAL 9003, White
Color	White
Estándares	EN 62676-4, IEEE 802.1x, IEEE 802.3af, IK10, IP66
