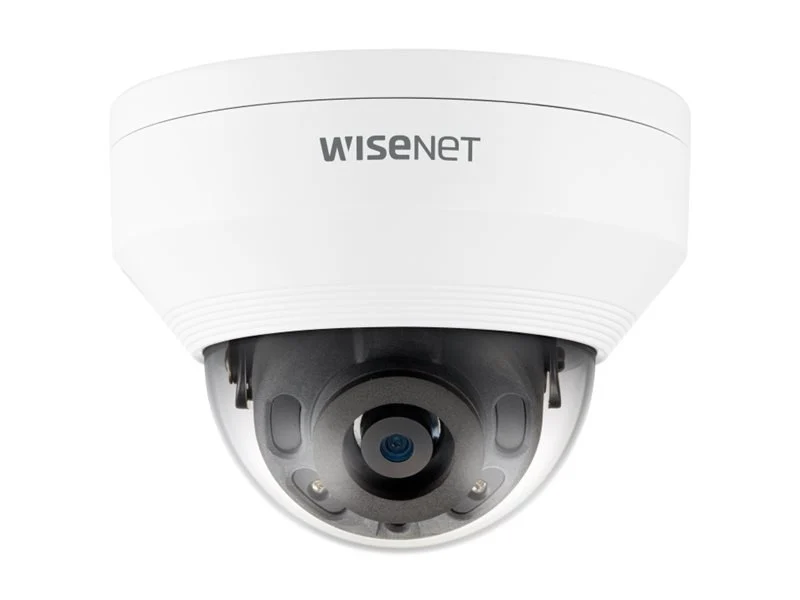

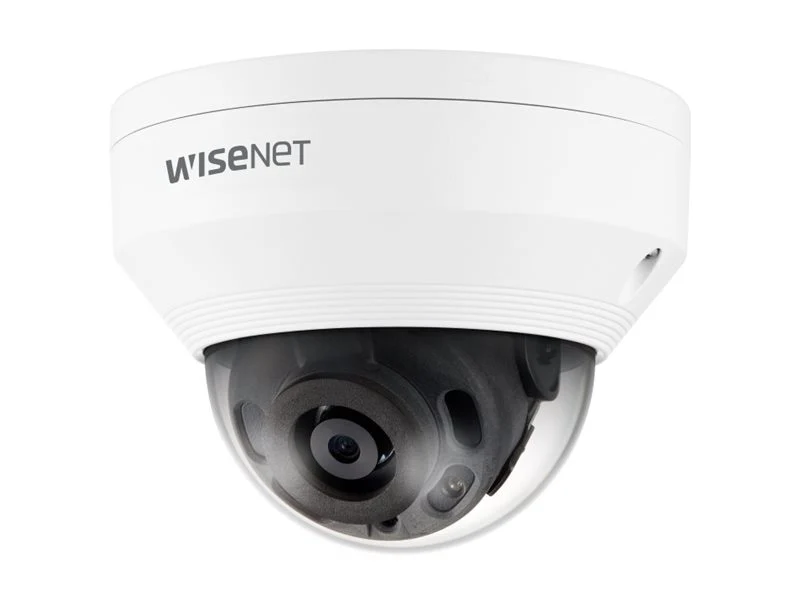

Cámara de Seguridad Hanwha Vision Wisenet Q QNV-6022R1

Sobre este producto

• 🌐 Cámara de Seguridad Hanwha Vision Wisenet Q QNV-6022R1: para videovigilancia y seguridad.
• ✅ Resolution: 2MP
• ✅ Defocus Detection,Directional Detection,Motion Detection,Tampering
• ✅ Built-in 4mm Fixed Lens
• ✅ Hallway View Support
• ✅ Analog Video Out for Easy Installation

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet Q
Modelo	QNV-6022R1
Fabricante	Hanwha
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line-in/microphone, Composite video, LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Capture	1920 x 1080 @ 30 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Class 3
Power Consumption Operational	7.4 watt
Angular Field of View (D, Min, Degree)	104.5
Angular Field of View (H, Min, Degree)	87.6
Angular Field of View (V, Min, Degree)	46.4
Focal Length Control	Fixed focal
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Infrared Distance	82 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	4 millimetre
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.1 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 90%
Protection	Dustproof / waterproof / vandal-proof
Sensor Pixels Effective (H)	1920
Sensor Pixels Effective (V)	1080
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Hallway View, Handover, Image flip, Image mirror, Infrared cut filter, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	3.6 inch
Weight	17.99 ounce
Ancho	4.7 inch
Profundidad	4.7 inch
Color	RAL 9003, White
Color	White
Estándares	IEEE 802.1x, IEEE 802.3af, IK10, IP66
