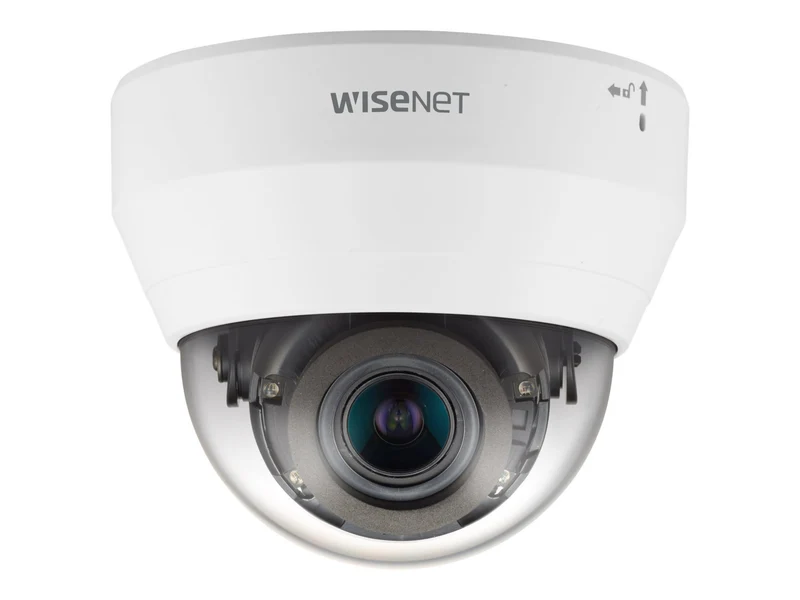

Cámara de Seguridad Hanwha Vision Wisenet Q QND-7082R

Sobre este producto

• 📹 Sensor CMOS de 4MP de 1/3" con resolución máxima de 2560 x 1440 en domo
• 📉 Compresión MJPEG, H.264 y H.265 para reducir el tamaño de datos y extender la grabación
• 🚨 Funciones de manipulación (tampering), detección de movimiento y detección de desenfoque (defocus)
• 🔍 Lente motorizada
• 🌗 Función día/noche a color con soporte de audio

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet Q
Modelo	QND-7082R
Fabricante	Hanwha
Flash Memory Installed	256 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	512 megabyte
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Composite video, LAN/power - RJ-45
Image Sensor Size	1/3"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Audio Formats	ADPCM, G.711, G.726, U-LAW
Audio Support	Yes
Audio Support Features	Built-in microphone
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	2560 x 1440
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Capture	2560 x 1440 @ 30 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Class 3
Power Consumption Operational	8.6 watt
Angular Field of View (D, Max, Degree)	115.7
Angular Field of View (D, Min, Degree)	35.3
Angular Field of View (H, Max, Degree)	98.6
Angular Field of View (H, Min, Degree)	30.8
Angular Field of View (V, Max, Degree)	52.3
Angular Field of View (V, Min, Degree)	17.3
Focal Length Control	Motorized zoom
Factor de forma	Dome
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6-2.9
Max Focal Length	10 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.2 millimetre
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.1 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 95% RH
Optical Zoom	3.1
Sensor Size (metric)	8.5 mm (1/3")
Total Pixels	4,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Auto white balance, Automatic Tracing White (ATW), Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Directional Detection, Entrance / exit detection, Gain Control, Hallway View, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	3.9 inch
Weight	11.29 ounce
Ancho	4.7 inch
Profundidad	4.7 inch
Color	RAL 9003, White
Color	White
Estándares	IEEE 802.1x, IEEE 802.3af
