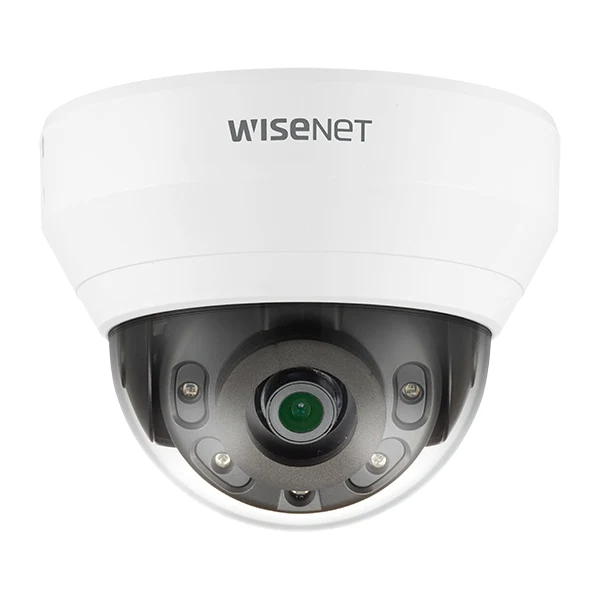

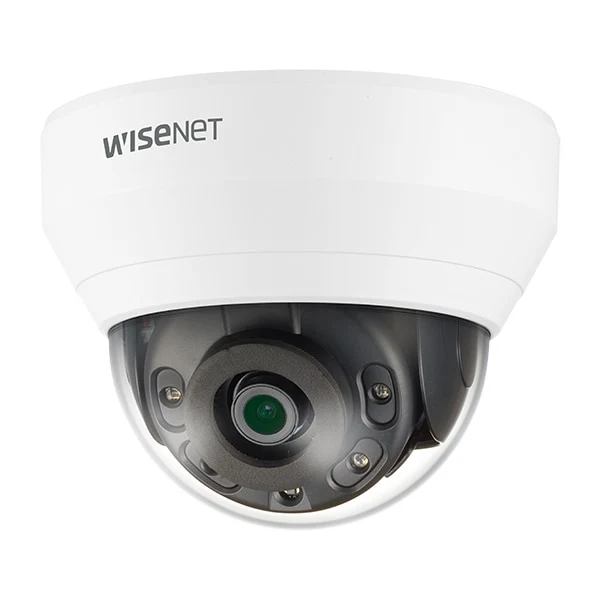

Cámara de Seguridad Hanwha Vision Wisenet Q QND-7022R

Sobre este producto

• 📹 Resolución 4 MP (2560 x 1440): cámara dome de red.
• 🔍 Lente fijo con apertura f/1.6: imágenes claras incluso en baja luz.
• 🌙 Visión nocturna IR hasta 20 m: cobertura día y noche.
• 🎞️ Compresión H.265/H.264/MJPEG: eficiencia de red.
• 🔊 Audio + almacenamiento microSD/SDHC/SDXC: utilidad ampliada.
• 🌗 Color día/noche (Day&Night): monitoreo confiable.

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet Q
Modelo	QND-7022R
Fabricante	Hanwha
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Composite video - BNC, LAN/power - RJ-45
Image Sensor Size	1/3"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Audio Formats	ADPCM, G.711u, G.726
Audio Support	Yes
Audio Support Features	Built-in microphone
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	2560 x 1440
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Class 3
Angular Field of View (D, Max, Degree)	92
Angular Field of View (H, Max, Degree)	78.2
Angular Field of View (V, Max, Degree)	41.2
Focal Length Control	Fixed focal
Focus Modes	Fixed focus
Factor de forma	Dome
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	4 millimetre
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.15 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 95% RH
Sensor Size (metric)	8.5 mm (1/3")
Total Pixels	4,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Alarm function, Anti-flicker, Auto ICR, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Direction detection, Entrance / exit detection, Gain Control, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Tamper-detection, Unicast Streaming, User access log, Variable Bit Rate (VBR), Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	3.4 inch
Weight	8.99 ounce
Ancho	4.3 inch
Profundidad	4.3 inch
Color	RAL 9003, White
Color	White
Estándares	IEEE 802.3af
