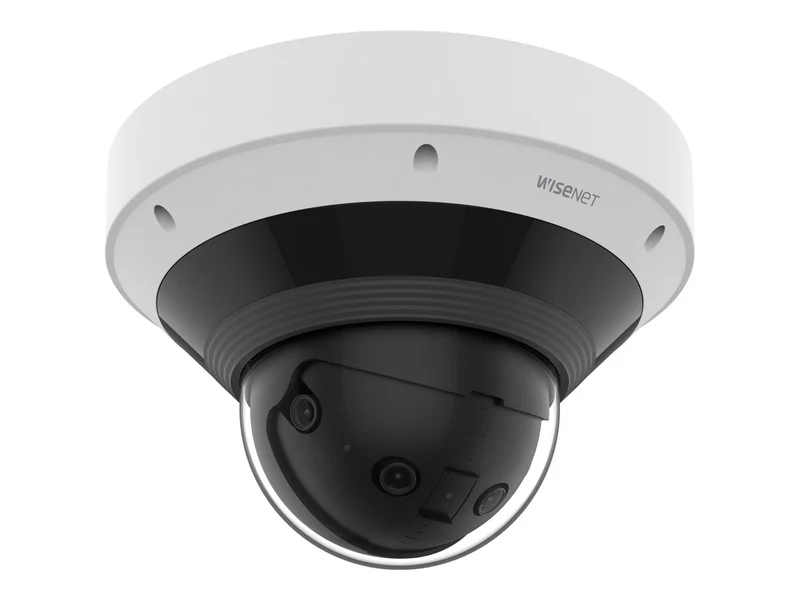

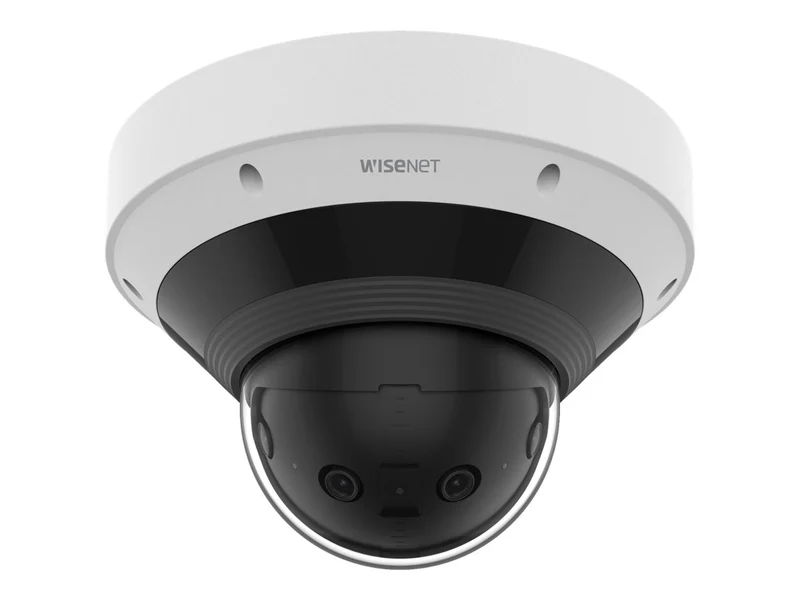

Cámara de Seguridad Hanwha Vision Wisenet P PNM-C9022RV

Sobre este producto

• 🌐 Cámara panorámica con campo de visión de 209° horizontal y 60° vertical para cobertura amplia sin puntos ciegos.
• 📹 Resolución 8 MP (5120 x 1568) con sensor CMOS de alta definición.
• 🌙 LEDs infrarrojos con visión clara en baja luz hasta 20 m.
• 🌡️ Opera de -40 °C a 55 °C con protección IP66 e IK10 contra polvo, agua e impactos.
• 🗣️ Audio bidireccional y detección inteligente de personas y vehículos.
• 🎞️ Compresión MJPEG, H.264 y H.265; formato domo (dome).

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet P
Modelo	PNM-C9022RV
Fabricante	Hanwha
Flash Memory Installed	512 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	4 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, LLDP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	4 x 1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 65
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Pan / tilt
Digital Video Capture Resolution	1280 x 392, 2560 x 784, 3648 x 1152, 5120 x 1568
Max Frame Rate	20 frames per second
Max Video Resolution	5120 x 1568
Motion Detection	Yes
Panning Range (degree)	0 to 360
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Camera Type	Panoramic camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Plus Class 4
Angular Field of View (H, Max, Degree)	209
Angular Field of View (V, Max, Degree)	60
Focal Length Control	Fixed focal
Focus Modes	Fixed focus
Factor de forma	Dome
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/2.0
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	2.8 millimetre
Min Focus Distance	16.4 ft
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.01 lux - B&W - F2.0 - shutter 1/30 sec, 0.1 lux - color - F2.0 - shutter 1/30 sec
Humedad de operación	0 - 95% RH (non-condensing)
Sensor Size (metric)	4 x 9.1 mm (1/2.8")
Total Pixels	8,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Anti-flicker, Appearing / disappearing detection, Audio Detection, Auto ICR, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Gain Control, Handover, Hard-coated dome, Image flip, Image mirror, IP address filtering, Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Sound classification, Tamper-detection, TPM 2.0 module, Trigger recording, Unicast Streaming, User access log, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseIR, WiseNR II, WiseStream II support, WiseStream III support
Cantidad por empaque	1
Alto	6.7 inch
Weight	6.39 lbs
Ancho	10 inch
Profundidad	10 inch
Color	RAL 9003, White
Color	Black, White
Estándares	CAN/CSA-C22.2 No. 62368-1, CISPR 32 Class A, EN 50130-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, FCC 47 CFR Part 15 B Class A, FIPS 140-2 Level 2, ICES-3(A)/NMB-3(A), IEC/EN 60529 IP66, IEC/EN 62262 IK10, IEC/EN 62471, IEC/EN 63000, NDAA, NEMA250 Type 4X, UKCA, UL 62368-1
