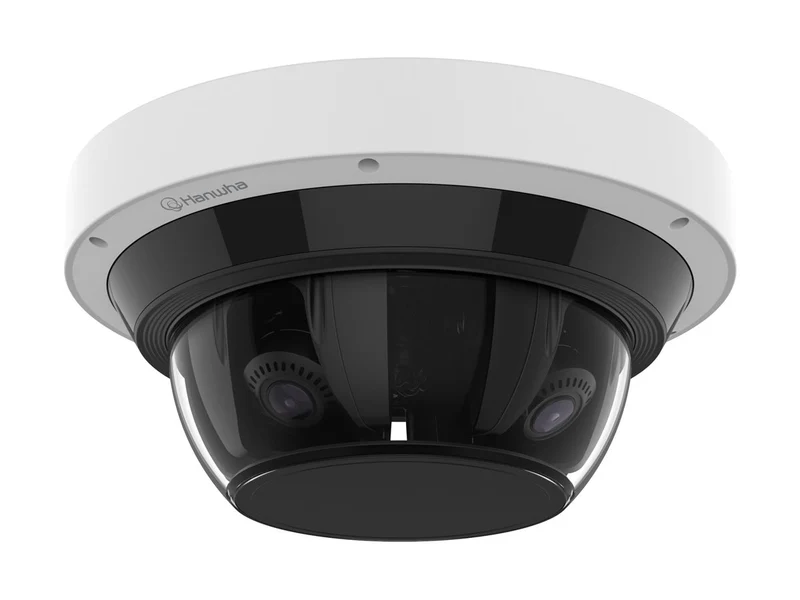

Cámara de Seguridad Hanwha Vision Wisenet P PNM-9085RQZ1

Sobre este producto

• 📹 Resolución total 20MP (cuatro sensores de 5 MP): cobertura multidireccional.
• 🔄 PTRZ motorizado remoto: ajuste de todo el campo de visión sin escalera.
• 🌙 IR integrado que gira con cada lente (hasta ~30 m): visión en baja luz.
• 🧠 Video Analytics + WiseStream II: monitoreo eficiente.
• 🛡️ IP66, IK10 y NEMA4X: robustez para exteriores.

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet P
Modelo	PNM-9085RQZ1
Fabricante	Hanwha
Flash Memory Installed	1280 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	5 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line in, Audio line out, LAN/power - RJ-45
Image Sensor Size	1/1.8"
Image Sensor Type	CMOS
Tilt	35 to 80
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Pan / tilt / zoom
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2560 x 1920, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	2560 x 1920
Motion Detection	Yes
Panning Range (degree)	360
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	High PoE
Power Consumption Operational	45 watt
Tipo de fuente	PoE splitter
Angular Field of View (D, Max, Degree)	112.46
Angular Field of View (D, Min, Degree)	46.85
Angular Field of View (H, Max, Degree)	87.58
Angular Field of View (H, Min, Degree)	37.34
Angular Field of View (V, Max, Degree)	64.58
Angular Field of View (V, Min, Degree)	28.04
Camera Iris	Auto iris
Focal Length Control	Motorized zoom
Factor de forma	Dome
Infrared Distance	98 ft
Infrared LEDs	Yes
Lens Aperture	F/1.92-2.67
Max Focal Length	9.4 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	4.13 millimetre
Min Focus Distance	4 ft
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.11 lux - color - F1.92 - 30 IRE
Humedad de operación	0 - 90% RH
Optical Zoom	2.3
Protection	Dust resistant / water resistant / shock resistant / corrosion resistant
Sensor Size (metric)	14.1 mm (1/1.8")
Total Pixels	5,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Appearing / disappearing detection, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Built-in 4 head multi-directional camera, Constant Bit Rate (CBR), Defocus Detection, Defog, Digest authentication, Digital Image Stabilization (DIS), Directional Detection, DORI coverage, Entrance / exit detection, Face Detection, Fog detection, Gain Control, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Tamper-detection, Unicast Streaming, User access log, Variable Bit Rate (VBR), Video analytics, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	5.7 inch
Weight	11.46 lbs
Ancho	12.4 inch
Profundidad	12.4 inch
Color	RAL 9003, White
Color	White
Estándares	EN 62676-4, IEEE 802.1x, IK10, IP66, NEMA Type 4X
