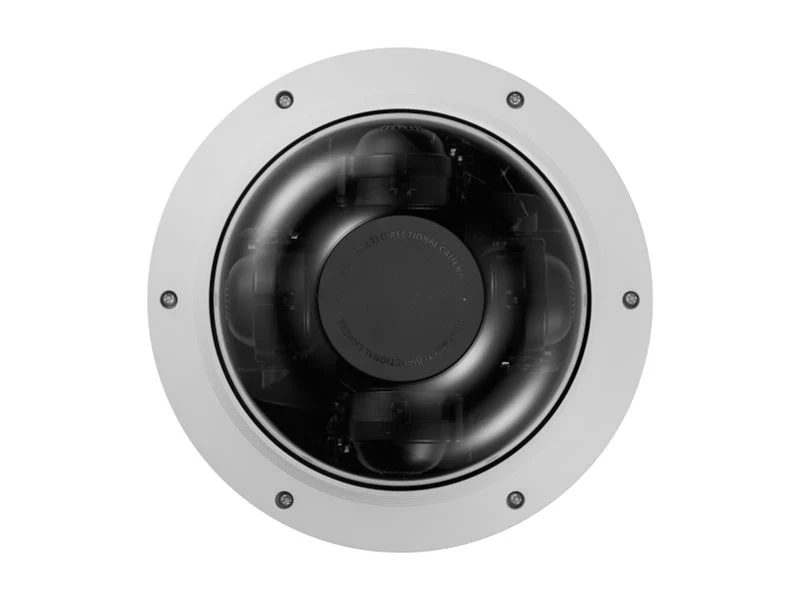

Cámara de Seguridad Hanwha Vision Wisenet P PNM-9084QZ1

Sobre este producto

• 🎥 Cámara Hanwha Wisenet P PNM-9084QZ1 con cuatro sensores de 2 MP para una resolución total de 8 MP
• 🔄 Función motorized PTRZ para ajustar el posicionamiento de la cámara de forma remota
• 📐 Capacidad de inclinación look-down de 90 grados y Hallway View
• 🛡️ Certificaciones IP66, IK10 y NEMA4X para resistencia ambiental
• 🧠 Detección de merodeo, dirección, niebla, tampering y movimiento con analíticas avanzadas
• 🗜️ Compresión H.265, H.264 y MJPEG con tecnología WiseStream II

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet P
Modelo	PNM-9084QZ1
Fabricante	Hanwha
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	5 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, LLDP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 73
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, U-LAW
Audio Support	Yes
Camera Mechanical Design	Pan / tilt / zoom
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448
Max Frame Rate	60 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	0 to 360
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Camera Mount Type	Ceiling mount
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	High PoE
Power Consumption Operational	20 watt
Angular Field of View (D, Max, Degree)	126
Angular Field of View (D, Min, Degree)	64.3
Angular Field of View (H, Max, Degree)	107
Angular Field of View (H, Min, Degree)	56.3
Angular Field of View (V, Max, Degree)	57
Angular Field of View (V, Min, Degree)	31.5
Camera Iris	Fixed iris
Focal Length Control	Motorized zoom
Focus Modes	Automatic
Factor de forma	Dome
Indoor/Outdoor	Indoor, Outdoor
Lens Aperture	F/2.2-3.1
Max Focal Length	6 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3 millimetre
Min Focus Distance	1.6 ft
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0.004 lux - B&W - F2.2 - shutter 1/30 sec, 0.04 lux - color - F2.2 - shutter 1/30 sec
Humedad de operación	0 - 90% RH
Optical Zoom	2
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	4 x 2,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	Anti-flicker, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Defocus Detection, Defog, Digest authentication, Digital Image Stabilization (DIS), Digital Noise Reduction, Direction detection, Entrance / exit detection, Face Detection, Fog detection, Hallway View, Handover, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection, Motion Detection Technology, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Tamper-detection, Trigger recording, Unicast Streaming, User access log, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Accesorios incluidos	PoE injector
Alto	4.6 inch
Weight	6.61 lbs
Ancho	9.9 inch
Profundidad	9.9 inch
Color	White
Color	White
Estándares	IEEE 802.1x, IEEE 802.3bt, IK10, IP66, NEMA Type 4X
