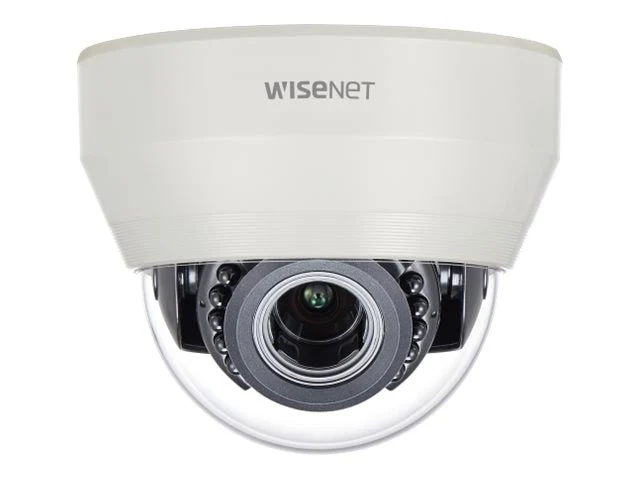

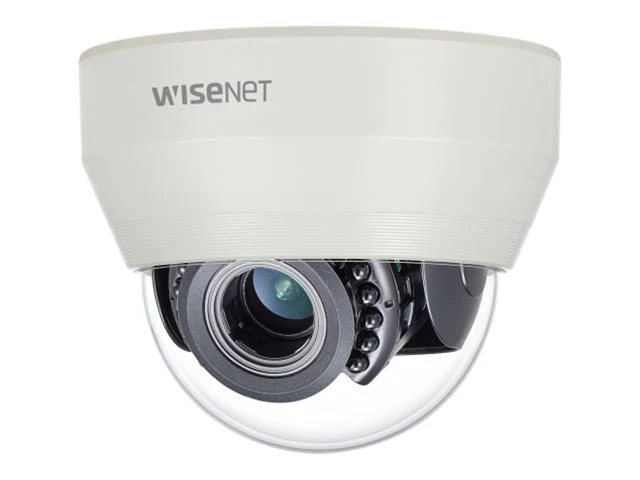

Cámara de Seguridad Hanwha Vision Wisenet HD+ SCD-6085R

Sobre este producto

• 📹 Cámara dome analógica 2MP Full HD 1080p
• 🔍 Lente vari-focal con ángulo de 36.6° a 128.4°
• 🌙 LED infrarrojos hasta 20 m; mínimo 0 lux en B/N
• 📼 Salida composite y AHD por conector BNC
• 🎨 Backlight Compensation, Digital WDR y Samsung Super Noise Reduction
• 🌡️ Opera de -10°C a 55°C y humedad 0-90%

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet HD+
Modelo	SCD-6085R
Fabricante	Hanwha
Connectivity Technology	Wired
Ports	Composite video/AHD - BNC
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Camera Mechanical Design	Fixed
Max Frame Rate	30 frames per second
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1 second (time unit)
Video Modes	1080p
Video Signals	AHD, Composite video
Camera Type	Surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / AC 24 V
Angular Field of View (D, Max, Degree)	128.4
Angular Field of View (D, Min, Degree)	36.6
Angular Field of View (H, Max, Degree)	110.2
Angular Field of View (H, Min, Degree)	32
Angular Field of View (V, Max, Degree)	55.4
Angular Field of View (V, Min, Degree)	18
Auto Iris Control	DC
Camera Iris	Auto iris
Focal Length Control	Vari-focal
Focus Modes	Manual
Factor de forma	Dome
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Max Focal Length	10 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.2 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.11 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 90%
Optical Zoom	3.1
Sensor Pixels Effective (H)	1945
Sensor Pixels Effective (V)	1097
Sensor Pixels Total (H)	1945
Sensor Pixels Total (V)	1109
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,000,000 pixels
Video Input	Color
Alarm Output Quantity	1
Características	Adjustable gain control, Auto white balance, Backlight Compensation (BLC), Defog, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Motion Detection Technology, Privacy Mask Function, Samsung Super Noise Reduction (SSNRIV)
Cantidad por empaque	1
Alto	3.9 inch
Weight	11.29 ounce
Ancho	4.7 inch
Profundidad	4.7 inch
Color	Ivory
Color	White
