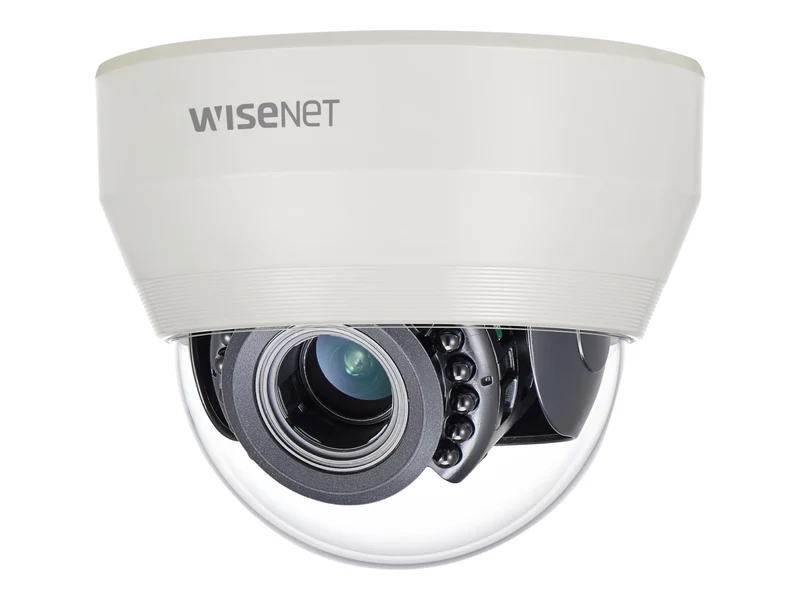

Cámara de Seguridad Hanwha Vision Wisenet HD+ HCD-6070R

Sobre este producto

• 📹 Cámara dome de 2.2MP con resolución 1920 x 1080 (1080p) a 25 fps para interiores
• 🔄 Salida multiformato composite / AHD / CVI / TVI para máxima compatibilidad
• 🎨 Modo color (Day&Night) con auto iris para imagen clara
• 🏫 Ideal para aulas, oficinas y espacios de trabajo

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet HD+
Modelo	HCD-6070R
Fabricante	Hanwha
Connectivity Technology	Wired
Ports	Composite video/AHD/TVI/CVI - BNC
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1920 x 1080
Max Frame Rate	25 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1 second (time unit)
Video Modes	1080/25p, 1080p
Video Signals	AHD, Composite video, CVI, TVI
Camera Type	Surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / AC 24 V
Power Consumption Operational	4.2 watt
Angular Field of View (D, Max, Degree)	128.4
Angular Field of View (D, Min, Degree)	36.6
Angular Field of View (H, Max, Degree)	110.2
Angular Field of View (H, Min, Degree)	32
Angular Field of View (V, Max, Degree)	55.4
Angular Field of View (V, Min, Degree)	18
Auto Iris Control	DC
Camera Iris	Auto iris
Focal Length Control	Vari-focal
Focus Modes	Manual
Factor de forma	Dome
Indoor/Outdoor	Indoor
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Max Focal Length	10 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.2 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.11 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 90%
Optical Zoom	3.1
Sensor Pixels Effective (H)	1945
Sensor Pixels Effective (V)	1097
Sensor Pixels Total (H)	1945
Sensor Pixels Total (V)	1109
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,160,000 pixels
Video Formats	PAL
Video Input	Color
Alarm Output Quantity	1
Características	Auto gain control, Auto white balance, Backlight Compensation (BLC), Defog, Infrared cut filter, Motion Detection Technology, Privacy Mask Function, Progressive scanning, Samsung Super Noise Reduction (SSNRIV), Wide Dynamic Range (WDR)
Cantidad por empaque	1
Alto	3.9 inch
Weight	11.29 ounce
Ancho	4.7 inch
Profundidad	4.7 inch
Color	Ivory
Color	White
Estándares	Plug and Play
