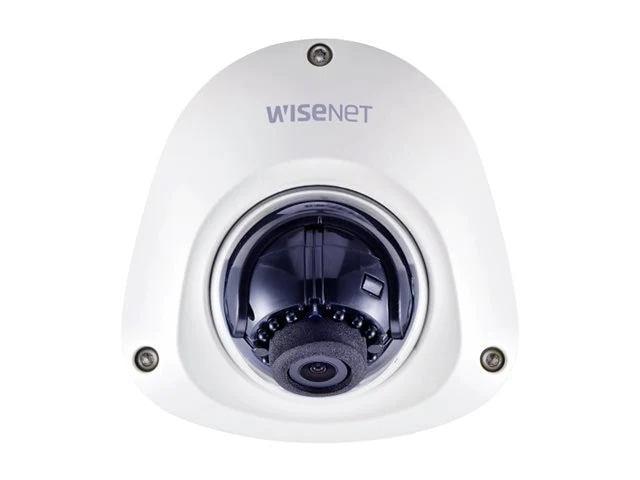

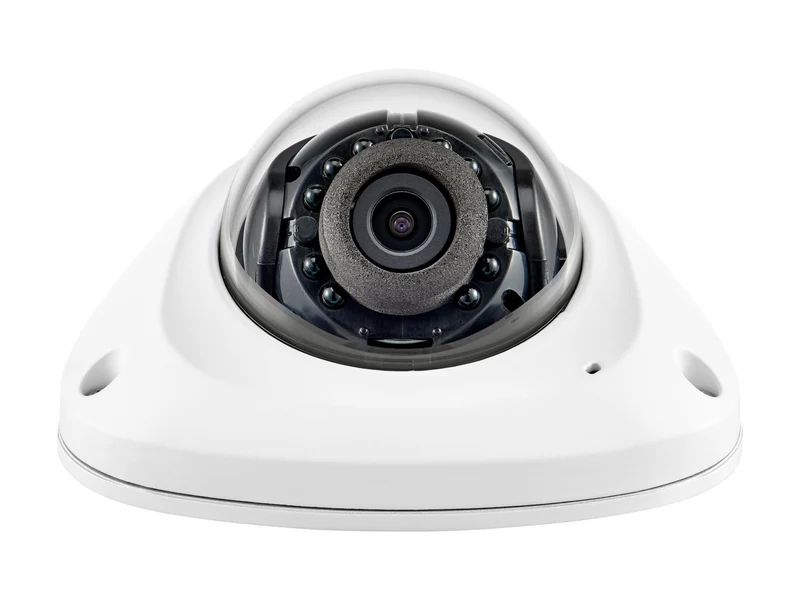

Cámara de Seguridad Hanwha Vision WiseNet ANV-L6023R

Sobre este producto

• 📹 Cámara dome de red 2MP
• 🔄 Función pan/tilt con lente fijo
• 🌙 Visión nocturna infrarroja para vigilancia 24/7 en oscuridad total
• 🌡️ Amplio rango de temperatura y humedad para interior o exterior
• 🛡️ Carcasa antivandálica (vandal-proof)
• 📼 Compresión H.264/H.265/MJPEG

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet
Modelo	ANV-L6023R
Fabricante	Hanwha
Flash Memory Installed	256 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	512 megabyte
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line in, Composite video output - BNC, LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Audio Formats	ADPCM, G.711, G.711u, G.726
Audio Support	Yes
Camera Mechanical Design	Pan / tilt
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	-5 to +5
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Signals	Composite video
Camera Mount Type	Ceiling mount
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Class 3
Power Consumption Operational	5 watt
Angular Field of View (D, Max, Degree)	114.3
Angular Field of View (H, Max, Degree)	94.8
Angular Field of View (V, Max, Degree)	49.3
Focal Length Control	Fixed focal
Focus Modes	Fixed focus
Factor de forma	Dome
Infrared Distance	49 ft
Infrared LEDs	Yes
Lens Aperture	F/2.0
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.6 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.03 lux - color - F2.0 - shutter 1/30 sec
Humedad de operación	0 - 95% RH
Protection	Vandal-proof
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Digest authentication, Entrance / exit detection, Hallway View, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Tamper-detection, Trigger recording, Unicast Streaming, User access log, Variable Bit Rate (VBR), Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	2 inch
Weight	10.4 ounce
Ancho	3.9 inch
Profundidad	3.9 inch
Color	White
Color	White
Estándares	EAC, IEEE 802.1x, IEEE 802.3af, IK10, IP66, NDAA, NEMA Type 4X
