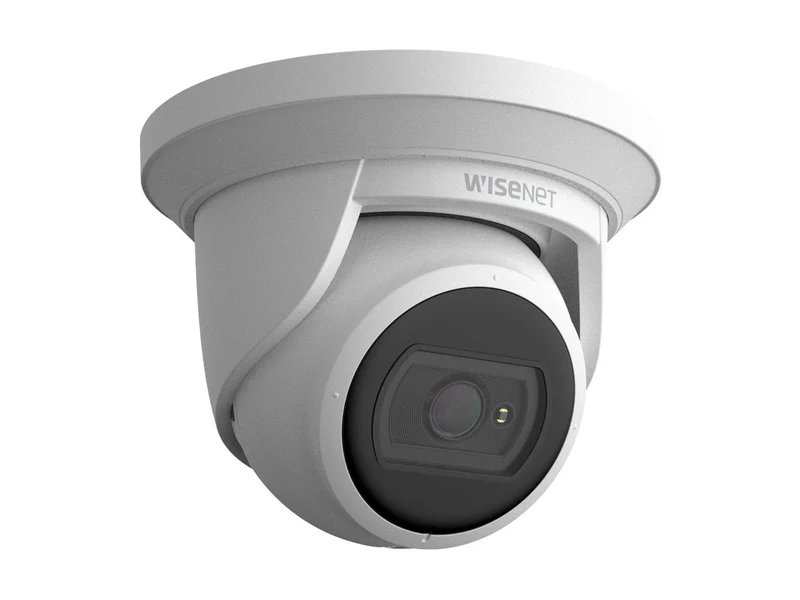

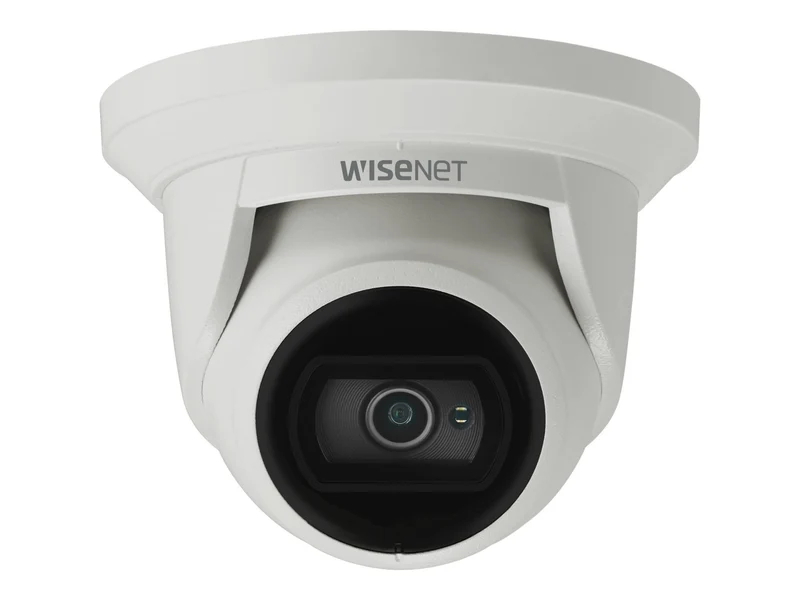

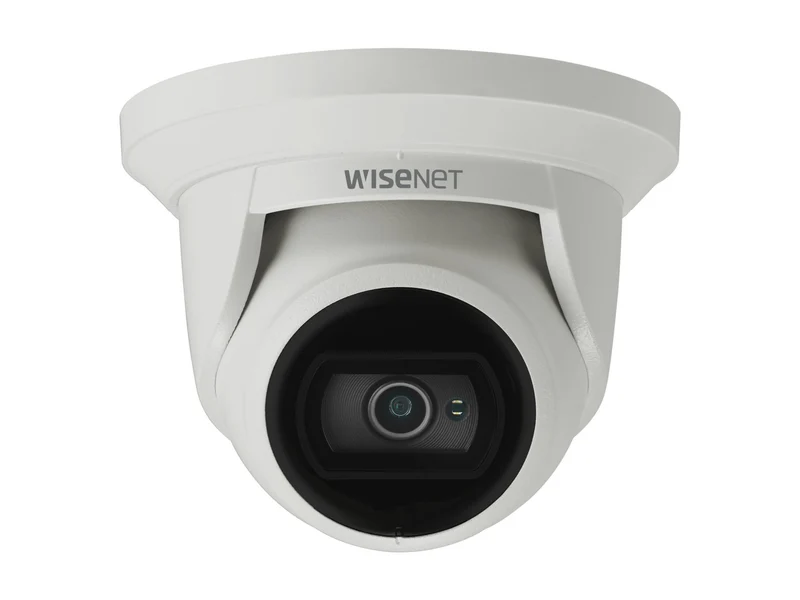

Cámara de Seguridad Hanwha Vision Wisenet ANE-L6012R

Sobre este producto

• 📹 Cámara turret (flateye) de 2MP con resolución 1920 x 1080 y lente fija de 3mm
• 🌙 IR con alcance de 20 m para visión nocturna
• ↔️ Analíticas: cruce de línea/direccional, entrada/salida, manipulación y movimiento
• 🔌 Alimentación PoE Class 3 vía LAN 10/100 con ajuste pan/tilt
• 💾 Ranura microSD/SDHC para grabación a bordo

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet
Modelo	ANE-L6012R
Fabricante	Hanwha
Flash Memory Installed	256 megabyte
Memory Cards Supported	microSD Card, microSDHC Card
RAM instalada	512 megabyte
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Camera Mechanical Design	Pan / tilt
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Capture	1280 x 720 @ 30 fps, 1280 x 960 @ 30 fps, 1920 x 1080 @ 30 fps, 640 x 360 @ 30 fps, 640 x 480 @ 30 fps, 720 x 576 @ 30 fps, 800 x 448 @ 30 fps, 800 x 600 @ 30 fps
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Class 3
Power Consumption Operational	4.8 watt
Angular Field of View (D, Max, Degree)	126.7
Angular Field of View (H, Max, Degree)	107.7
Angular Field of View (V, Max, Degree)	59
Battery Form Type	None
Focal Length Control	Fixed focal
Focus Modes	Fixed focus
Factor de forma	Turret
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3 millimetre
Min Focus Distance	3.6 ft
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.03 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 95% RH
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	Anti-flicker, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Cross Line Detection, Direction detection, Entrance / exit detection, Hallway View, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Tamper-detection, Trigger recording, Unicast Streaming, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	3.4 inch
Weight	22.22 ounce
Ancho	4.9 inch
Profundidad	4.9 inch
Color	White
Color	White
Estándares	IEEE 802.3af, IK10, IP67
