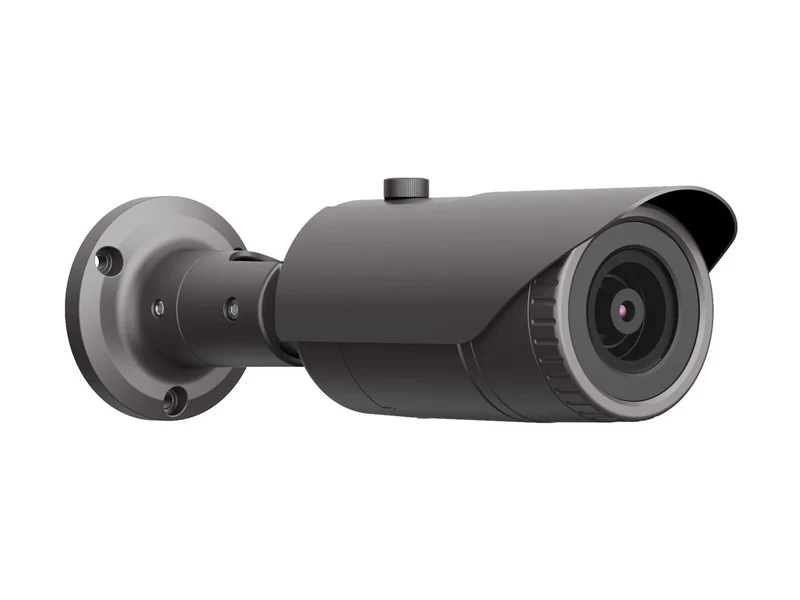

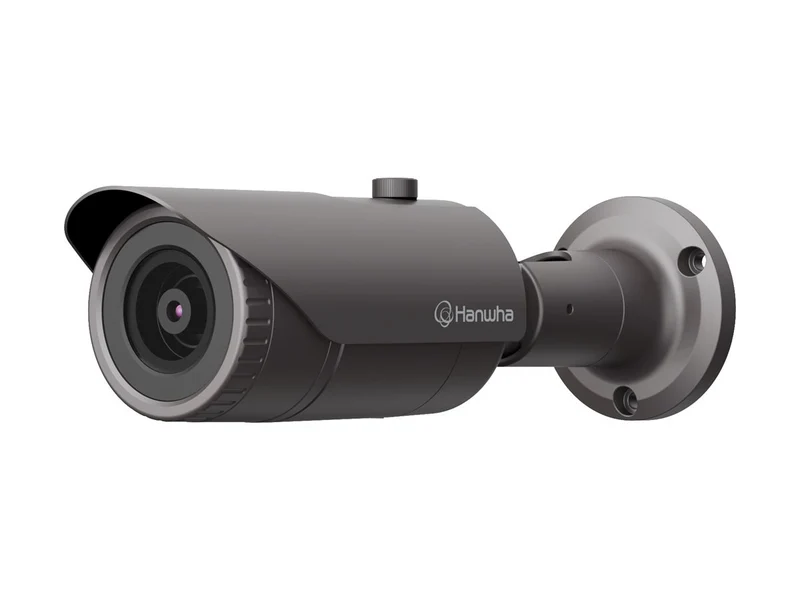

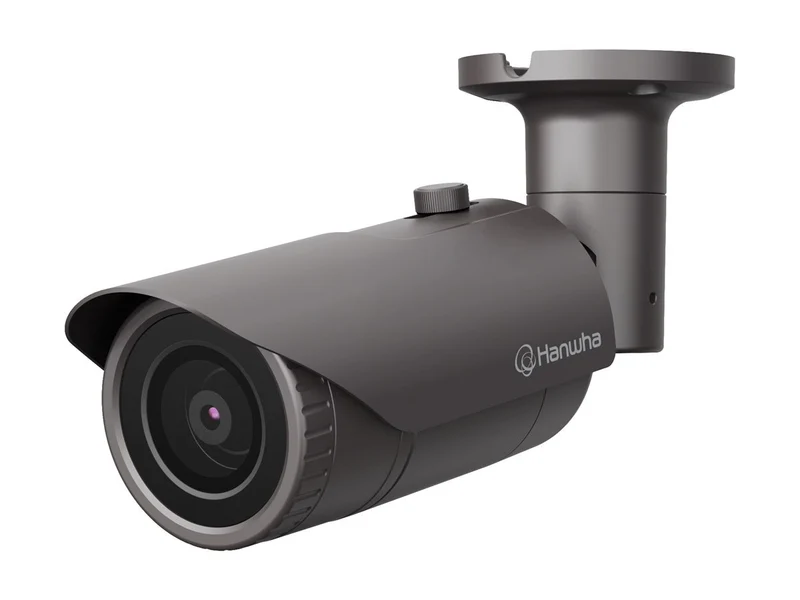

Cámara de Seguridad Hanwha Vision QNO-6012R1

Sobre este producto

• 📹 Sensor CMOS de 2MP con resolución 1920 x 1080 en formato bullet
• 🌙 LEDs infrarrojos de hasta 20 m para visión día y noche
• 🌈 Wide Dynamic Range (WDR), detección de movimiento y smart codec
• 🔌 Alimentación PoE con consumo de solo 7 W y conexión LAN 10/100
• 🛡️ Construcción IK10 e IP66, operando de -30°C a 55°C
• 🔒 Funciones de máscara de privacidad, entradas/salidas de alarma y alertas por email

Característica	Detalle
Marca	Hanwha Vision
Línea de producto	Hanwha Vision
Modelo	QNO-6012R1
Fabricante	Hanwha
Flash Memory Installed	256 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	512 megabyte
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, SUNAPI, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Composite video, LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 100
Touchscreen	No
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	0 to 360
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Capture	1920 x 1080 @ 30 fps
Video Signals	Composite video
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / PoE Class 3
Power Consumption Operational	7 watt
Angular Field of View (D, Min, Degree)	135
Angular Field of View (H, Min, Degree)	114
Angular Field of View (V, Min, Degree)	62
Encryption	EAP-LEAP, EAP-TLS, MSCHAPv2
Focal Length Control	Fixed focal
Factor de forma	Bullet
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/2.0
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	2.8 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.03 lux - color - F2.0 - shutter 1/30 sec
Humedad de operación	0 - 90% RH
Sensor Pixels Effective (H)	1920
Sensor Pixels Effective (V)	1080
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	802.1x authentication, Alarm event, Anti-flicker, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Constant Bit Rate (CBR), Defocus Detection, Digest authentication, E-mail alerts, Enter area detection, Exit detection, Firmware encryption, FTP alerts, Gain Control, Hallway View, Handover, Image flip, Image mirror, Intrusion detection, IP address filtering, Lens Distortion Compensation (LDC), Line Crossing Detection, Manual white balance, Motion Detection Technology, Multicast Streaming, Network disconnection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Smart Codec, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	9.7 inch
Weight	24.69 ounce
Ancho	2.8 inch
Profundidad	2.8 inch
Color	Dark gray
Color	Gray
Estándares	EN 62676-4, IEEE 802.3af, IK10, IP66
