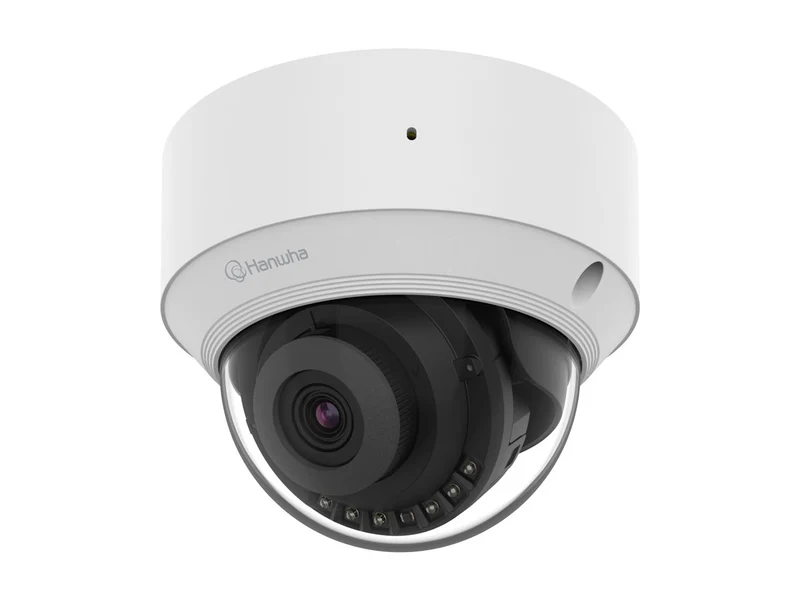

Cámara de Seguridad Hanwha Vision QND-C8023R

Sobre este producto

• 🌐 Cámara de Seguridad Hanwha Vision QND-C8023R: para videovigilancia y seguridad.
• ✅ MJPEG, H.264, H.265
• ✅ Network surveillance camera
• ✅ color (Day&Night)

Característica	Detalle
Marca	Hanwha Vision
Línea de producto	Hanwha Vision
Modelo	QND-C8023R
Fabricante	Hanwha
Flash Memory Installed	1 GB
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	2 GB
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Alarm I/O, LAN/power - RJ-45, Video output - Micro-USB
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 75
Touchscreen	No
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2592 x 1944, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	2592 x 1944
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/25000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Class 3
Power Consumption Operational	8.1 watt
Angular Field of View (D, Min, Degree)	102
Angular Field of View (H, Min, Degree)	80
Angular Field of View (V, Min, Degree)	59
Camera Iris	Fixed iris
Focal Length Control	Fixed focal
Focus Modes	Fixed focus
Factor de forma	Dome
Infrared Distance	98 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Lens Mount	M12 mount
Temp. máx. de operación	113 degree Fahrenheit
Min Focal Length	4 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	14 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.005 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.05 lux - color - F1.6 - 30 IRE - shutter 1/30 sec
Humedad de operación	0 - 95% RH
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	5,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	0° / 355° rotation, AI Analytics, Appearing / disappearing detection, Auto ICR, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Clothes color detection, Constant Bit Rate (CBR), Defocus Detection, Dynamic privacy masking, Entrance / exit detection, Gain Control, Hallway View, Handover, Hard-coated dome, Heat Map, Intrusion detection, Lens Distortion Compensation (LDC), Loitering detection, Multicast Streaming, Network disconnection trigger, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle color recognition, Vehicle counting, Vehicle type classification, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream III support
Cantidad por empaque	1
Alto	3.5 inch
Weight	11.18 ounce
Ancho	4.3 inch
Profundidad	4.3 inch
Color	RAL 9003, White
Color	White
Estándares	AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, CE/UKCA, EN 50130-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC/EN 62471, IEC/EN 63000, KS C 9832 Class A, KS C 9835, UL 62368-1, VCCI-CISPR 32 Class A
