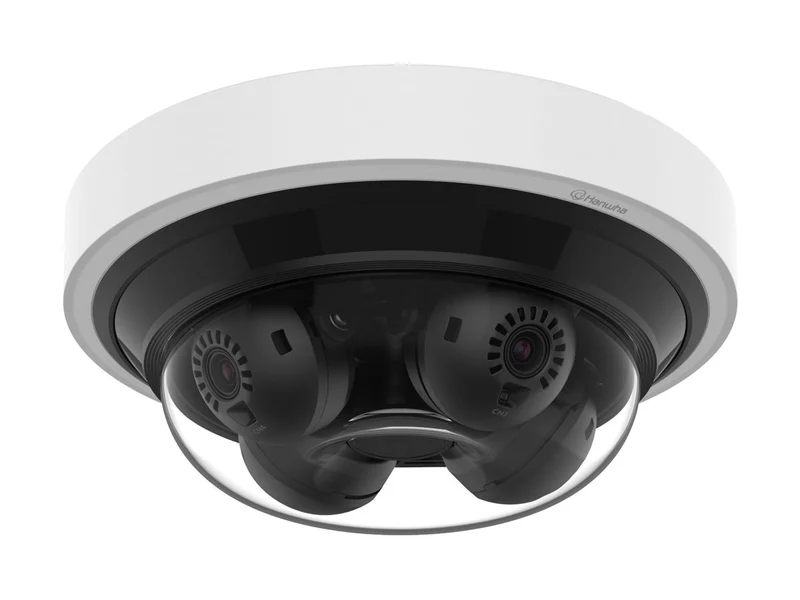

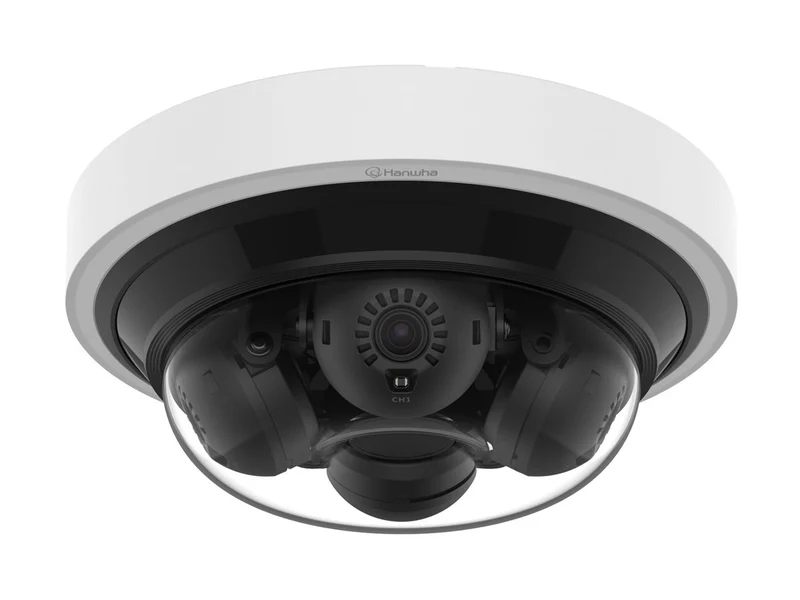

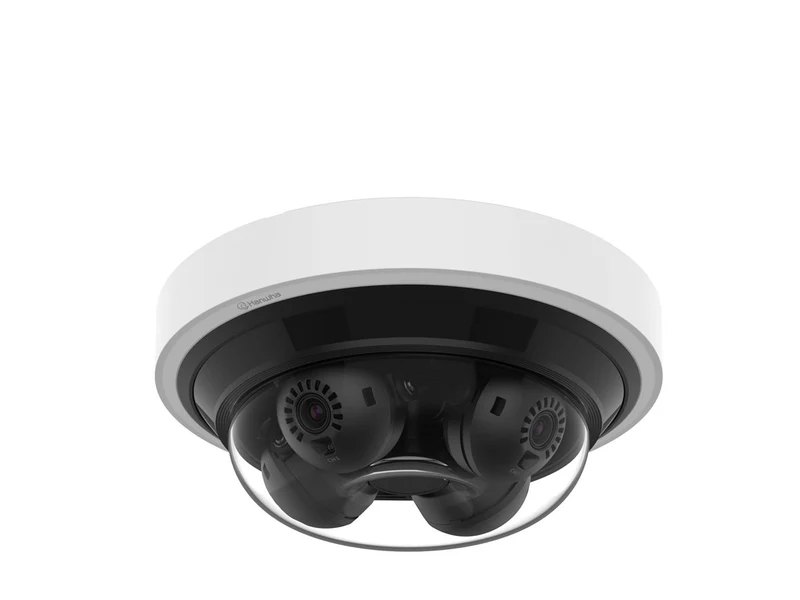

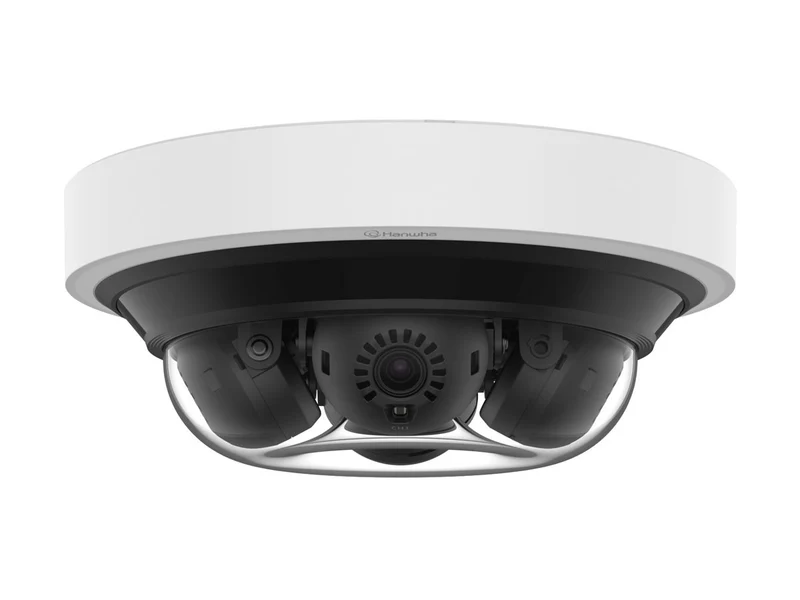

Cámara de Seguridad Hanwha Vision PNM-C16013RVQ

Sobre este producto

• 📹 Cámara multidireccional de 16MP con resolución 2592 x 1520 por sensor y ajuste pan/tilt
• 🌙 IR-LED con alcance de 20 m para visión nocturna en total oscuridad
• 🧠 Analíticas con IA: cruce de línea y detección de personas con alertas en tiempo real
• 🔌 Conexión GbE y alimentación PoE Plus Class 4 con audio integrado
• 🌡️ Opera en condiciones extremas de -40°C a 55°C

Característica	Detalle
Marca	Hanwha Vision
Línea de producto	Hanwha Vision
Modelo	PNM-C16013RVQ
Fabricante	Hanwha
Flash Memory Installed	512 megabyte
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	4 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, CDP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	4 x 1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 75
Touchscreen	No
Audio Support	Yes
Camera Mechanical Design	Pan / tilt
Digital Video Capture Resolution	1920 x 1080, 2592 x 1520, 640 x 360
Max Frame Rate	15 frames per second
Max Video Resolution	2592 x 1520
Motion Detection	Yes
Panning Range (degree)	0 to 360
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Signals	USB
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Plus Class 4
Angular Field of View (D, Min, Degree)	116
Angular Field of View (H, Min, Degree)	97
Angular Field of View (V, Min, Degree)	54
Camera Iris	Fixed iris
Encryption	EAP-TLS, FIPS 140-2, LEAP, MSCHAPv2, PEAP
Focal Length Control	Fixed focal
Focus Modes	Manual
Factor de forma	Dome
Infrared Distance	66 ft
Infrared LEDs	Yes
Lens Aperture	F/1.2
Lens Mount	M12 mount
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.19 millimetre
Min Focus Distance	0.8 inch
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.005 lux - B&W - F1.2 - 30 IRE - shutter 1/30 sec, 0.05 lux - color - F1.2 - 30 IRE - shutter 1/30 sec
Humedad de operación	0 - 95% RH (non-condensing)
Sensor Size (metric)	4 x 9.1 mm (1/2.8")
Total Pixels	4 x 4,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Características	90° image rotation, AI Analytics, AI Line Crossing Detection, AI Person Detection, Anti-flicker, Audio Detection, Auto gain control, Auto ICR, Auto white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Face Detection, Hallway View, Hard-coated dome, HTTPs encryption, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), License plate detection, Loitering detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object classification, Object Detection, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Programmable shutter speed, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Tamper-detection, TPM 2.0 module, Trigger recording, Trusted Platform Module (TPM), Unicast Streaming, User access log, Variable Bit Rate (VBR), Vehicle analytics, Vehicle type classification, Vertical flip and mirror, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream III support
Cantidad por empaque	1
Alto	3.1 inch
Weight	3.04 lbs
Ancho	7.9 inch
Profundidad	7.9 inch
Color	RAL 9003, White
Color	White
Estándares	AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 50130-4, EN 55032 Class A, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60529, IEC 62262 IK09, IEC/EN 62471, IEC/EN 63000, IEEE 802.1x, IP66, KS C 9832 Class A, KS C 9835, NDAA, NEMA 250 Type 4X, PoE+, UKCA, UL 62368-1, VCCI-CISPR 32 Class A
